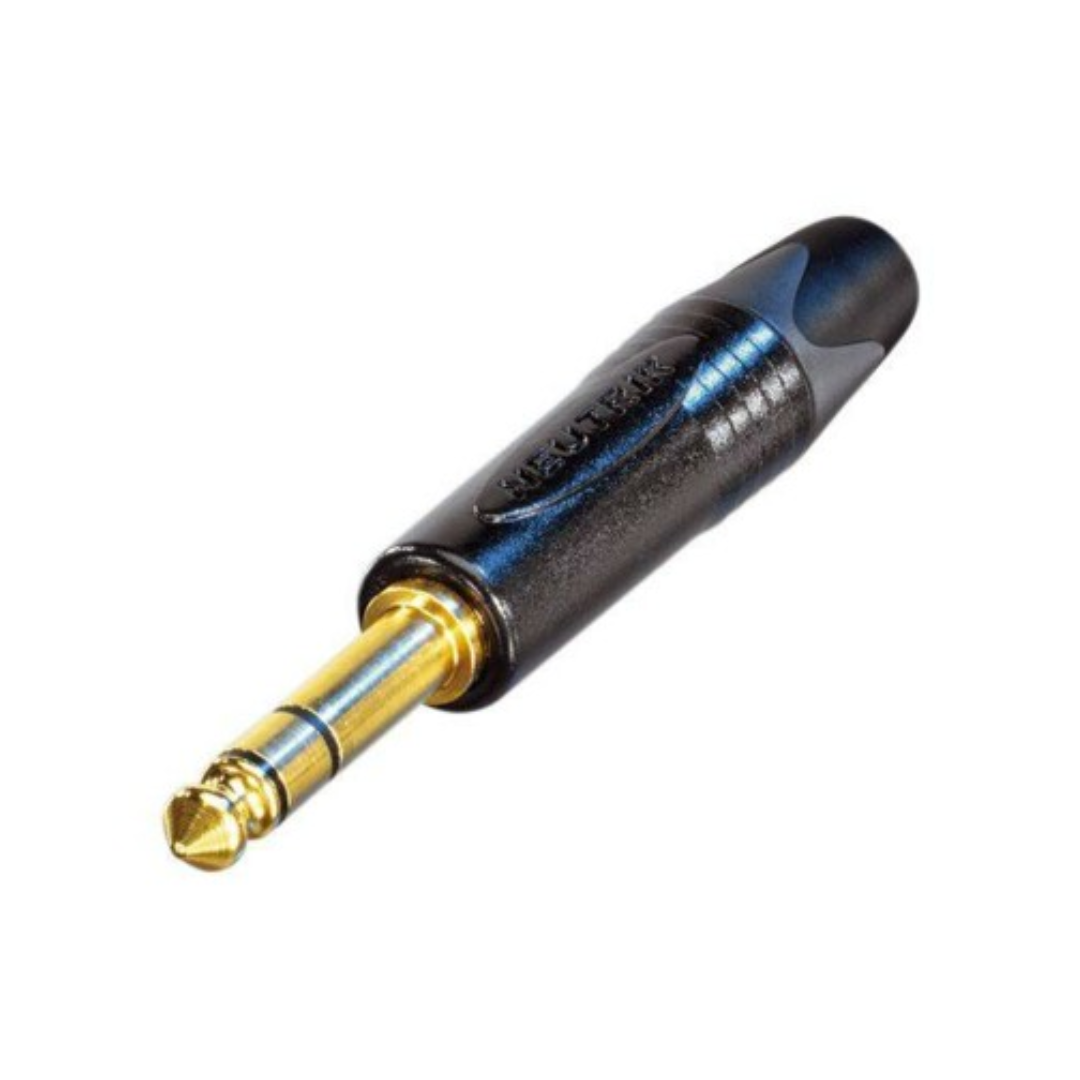

NP3X-B - 1/4'' PLUG 3POLE W/GOLD CONTACTS

NP3X-B - 1/4'' PLUG 3POLE W/GOLD CONTACTS

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4″ plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

SKU: NP3X-B Category: Cable-mount Connectors Brand: Neutrik

Description

Product Description

Technical Information

Connection Type: Plug

Electrical

Contact resistance: Depends on mating connector mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: Depends on mating connector A
Rated voltage: < 50 V

Mechanical

Cable O.D.: 4 – 7 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts

Material

Bushing : Polyacetal (POM) + PU
Contact plating: 2 µm Au
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: KTL coating
Strain relief: Polyacetal (POM)

Environmental

Standard compliance: IEC 60603-11 / EIA RS-453
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C
