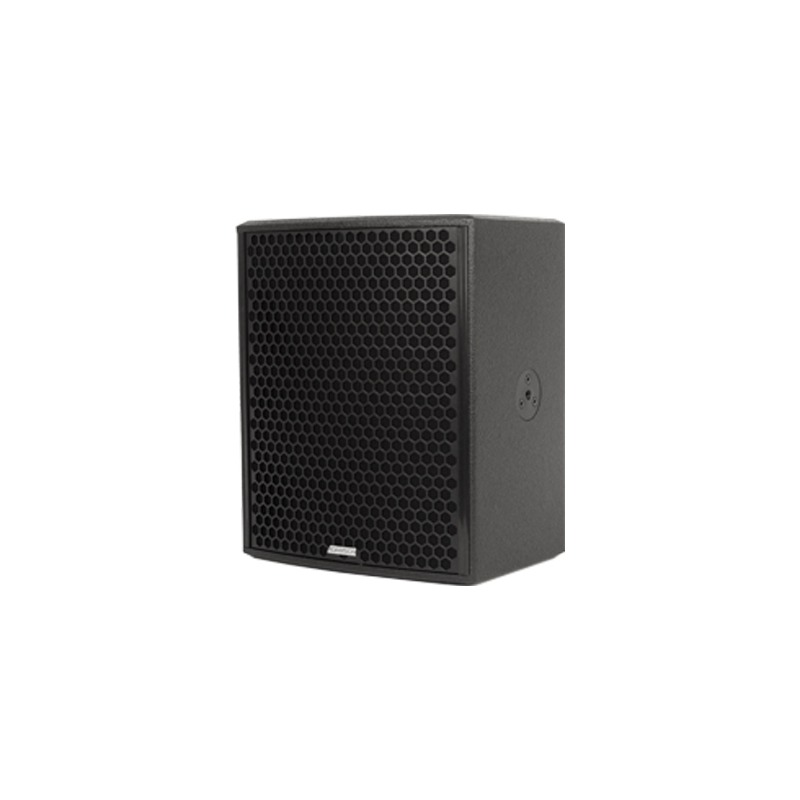

PC 12 - Light Weight Passive Loudspeaker

Product Description

Whether used as main FOH in a smaller application, a fill speaker or a compact stage monitor, this lightweight passive speaker packs an incredible punch.

All Point Concentric enclosures are constructed of 12 mm Baltic Birch, rather than moulded plastic or fiberglass, resulting in a lower resonant frequency.

Specifications:

• Frequency Range (-10 dB): 64 Hz – 18 kHz
• Nominal Directivity (-6 dB): H x V 60° x 40°
• Maximum Peak SPL**: 133 dB
• Components LMF/HF: B&C 12FHX76 12″ Coaxial Driver
• Nominal Impedance Passive: 4 Ω
• Power Handling (AES / Peak) MF: 350 / 1400 W
• Power Handling (AES / Peak) HF: 80 / 320 W
• Power Handling (AES / Peak) Passive: 430 / 1720 W
• Rigging: 3x Mini SLR™ Socket (M10)| Built-in Polemount Socket
• Connection: 2x Speakon™ NL4
• Height Front (mm / in): 436 / 17.16
• Width (mm / in): 353 / 13.88
• Depth (mm / in): 329 / 12.95
• Weight (kg / lbs): 15.4 / 34
• Supported Processing: Lake, IPD

  **12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
