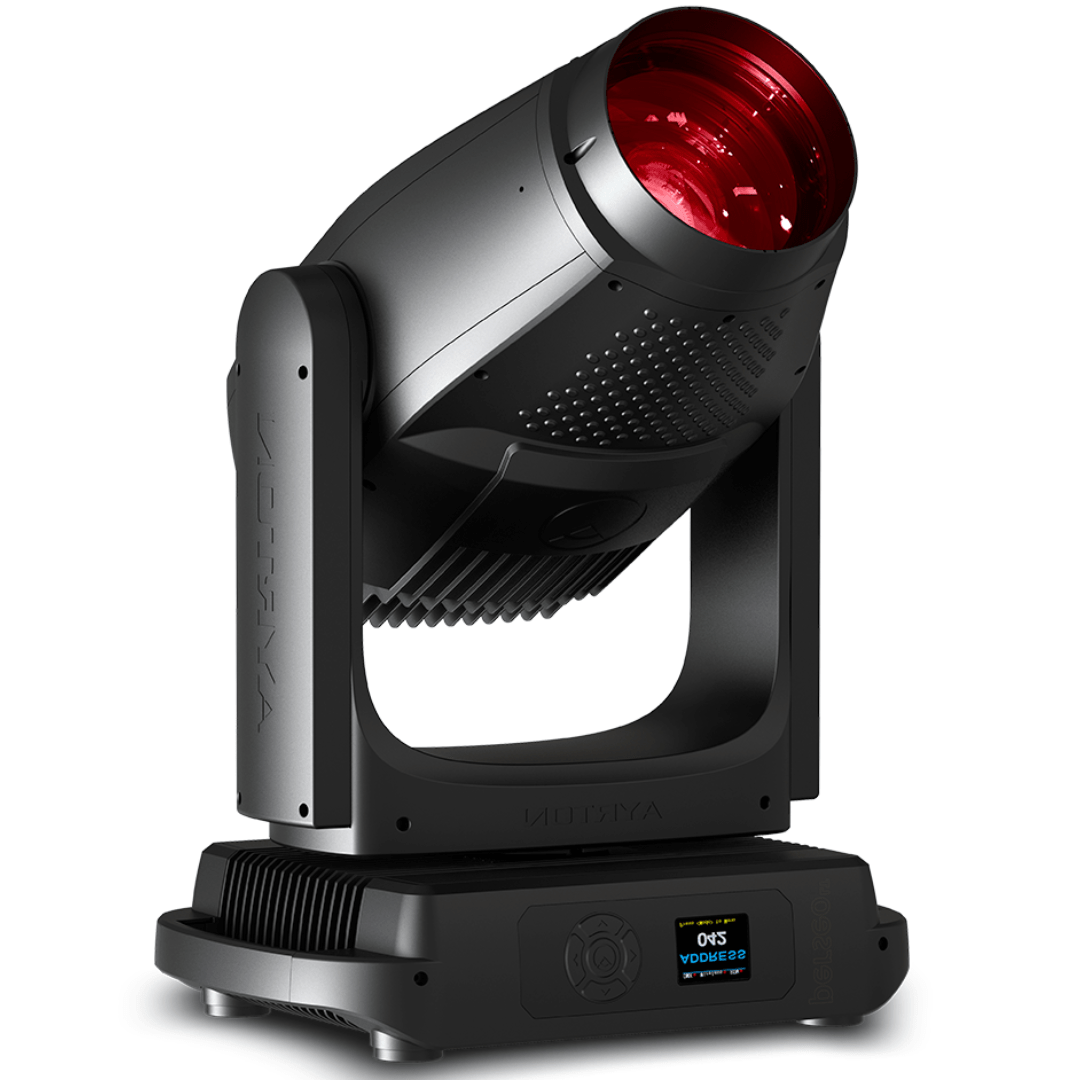

Perseo Beam - LED Moving Head

OPTICS

• 13-element 21:1 zoom high-resolution optic system
• Beam aperture: 2° to 42°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 168 mm frontal lens for greater performance

LIGHT SOURCE

• 25,000 lumens 9000 K white-light engine
• Total luminaire output: up to 18,000 lumens (integrating sphere measurement, Fan mode AUTO)
• Colour temperature output: 6800 K
• CRI: greater than 70
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

• Extremely accurate positioning
• Moving-head operated with either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite rotation (pan), 263° (tilt)

COLOURS

• Sophisticated colour mixing system providing CMY colour mixing
• Variable CTO colour temperature correction
• Fixed colour wheel with four colour temperature correction and 13 complementary colours

GOBOS

• Indexable rotating gobo wheel with 9 high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 18.0 mm
• Image diameter: 12.0 mm
• Fixed multi-position gobo wheel with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending)
• Image diameter: 12.0 mm

FROST

• Heavy frost filter
• Light frost filter

EFFECTS

• Graphic animation effect-wheel with continuous rotation in both directions
• Prism effect system comprising four combinable rotating prisms

DIMMER / STROBE

• Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through a built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FEATURES

• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess-temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• IP65 XLR 5-pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet™ connection
• IP65 PowerCON TRUE1 male connector for power connection

CONTROL

• DMX 512 protocol, through DMX cable or a wireless system
• DMX RDM-compatible
• Stand-alone mode and Master/Slave modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 3 DMX modes (from 29 to 42 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 700 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Super Silent Mode
• Safety protection against temperature excesses

HOUSING

• Moving-head skeleton made of die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in die-cast aluminium
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (carbon)

INSTALLATION

• Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety-cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
• Minimum usage distance: 3 m (9.84 ft)

COMPLIANCE
EU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• UL 1573
• FCC Part 15, Subpart B:2018

SIZE

• Product: 490 x 710 x 330 mm (l x h x d)
• Flight-case foam: 655 x 590 x 555 mm (l x h x d)

WEIGHT

• Product: 41.5 KG

PRODUCT CODES

• 012470: PERSEO BEAM – CLASSICAL IP65 6 SERIES
