Pinnacle-KR202 II - Powered Stereo System

Product Description

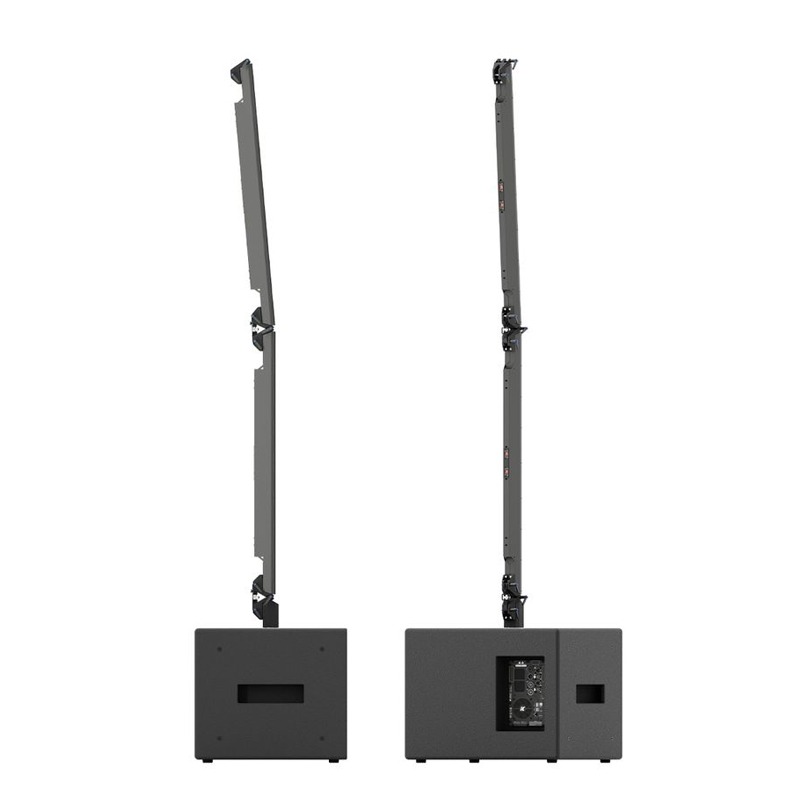

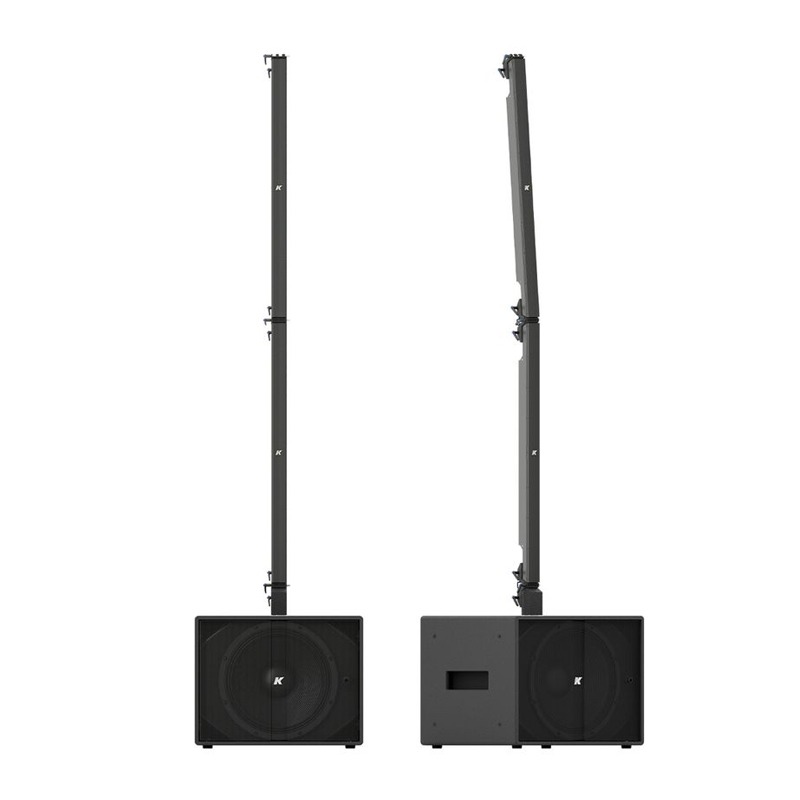

The Pinnacle-KR202 II is composed of:

• 1x Thunder-KS2 I self-powered subwoofer
• 1x Thunder-KS2P I passive subwoofer
• 4x Kobra-KK102 I pure 2″ line array column
• 4x K-JOINT3
• 2x K-FOOT3

The self-powered Thunder-KS2 I subwoofers with DSP are designed to be the core devices in the sound reinforcement system: the dedicated K-array Connect mobile app provides a user-friendly interface for the remote control, the DSP parameters and to boost the system performance.

K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for designing and managing a large number of units over a wired LAN in demanding applications.

Technical Specifications:

KOBRA-KK102 I

GENERAL

• Type: Line array
• Transducers: 16 x 2″ neodymium magnet woofers
• Frequency Response: 150 Hz – 18 kHz (-6 dB) (1)
• Max SPL: 126 dB (peak) (2)
• Rated Power: 400 W
• Coverage: V. 7° – 35° | H. 120°
• Connectors: SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
• Nominal Impedance: 8 Ω / 32 Ω selectable

HANDLING AND FINISHES

• Dimensions (W x H x D): 59 x 1000 x 81 mm (2.3 x 39.4 x 3.2 in)
• Weight: 4.8 kg (10.6 lb)
• Material: Stainless Steel
• Colors: Black, White, Custom RAL
• Finishes: 24K Gold, Polished, Brushed

REGULATIONS

• IP Rating: IP64 (3)
• EN54-24: EN 54-24:2008 compliant

(1) With dedicated preset.
(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
(3) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant)
Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.
New materials and design are introduced into existing products without previous notice.

THUNDER-KS2 I

GENERAL

• Type: Active subwoofer
• Transducers: 18″ neodymium magnet woofer
• Frequency Response: 35 Hz – 150/450 Hz (-6 dB) crossover dependant (1)
• Crossover: DSP-controlled, Low Pass @ 150 Hz, preset dependant
• Max SPL: 137 dB (2)
• Coverage: Omni
• Coverage:
  Line Input: 2x XLR-F analog / AES3
  Line Output: 2x XLR-M Link analog / AES3
  Speaker Output: 2x SpeakON NL4
  Mains: powerCON TRUE1 TOP
  Networking and Data: 1x RJ45 | 4x USB-A
• Nominal Impedance: 8ohm subwoofer
• Controllers: Wi-Fi dedicated Mobile APP | K-framework3 via wired Ethernet connection

HANDLING AND FINISHES

• Dimensions (W x H x D): 650 x 500 x 580 mm (25.6 x 19.7 x 22.8 in) (3)
• Weight: 37,6 kg (82.9 lb)
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

• IP Rating: IP53 (4)

AMPLIFIER

• Amp Module: 4-ch Class D
• Output Power: 4 x 1500W @ 4ohm (5)
• Power Consumption: 600 W @ 8 Ω load, Pink noise, 1/4 rated power

(1) With dedicated preset
(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
(3) Included 17 mm (0.7 in) removable rubber feet
(4) In case of permament, long lasting installation in critical environments (swimming pools, beaches, yachts..), we recommend to further protect the subwoofer. Contact K-array directly to discuss best protection practices.
(5) CTA-2006 Standard single channel driven
New materials and design are introduced into existing products without previous notice.

THUNDER-KS2P I

GENERAL

• Type: Passive subwoofer
• Transducers: 18″ neodymium magnet woofer
• Frequency Response: 35 Hz – 150/450 Hz (-6 dB) crossover dependant (1)
• Crossover: External DSP-controlled, Low Pass @ 150 Hz up to 450 Hz, preset dependant
• Max SPL: 137 dB (2)
• Rated Power: 1400W peak
• Coverage: Omni
• Coverage: 2 x Speakon NL4
• Nominal Impedance: 8ohm

HANDLING AND FINISHES

• Dimensions (W x H x D): 650 x 500 x 580 mm (25.6 x 19.7 x 22.8 in) (3)
• Weight: 34 kg (75 lb)
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

• IP Rating: IP54 (4)

(1) With dedicated preset
(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
(3) Included 17 mm (0.7 in) removable rubber feet
(4) In case of permament, long lasting installation in critical environments (swimming pools, beaches, yachts..), we recommend to further protect the subwoofer. Contact K-array directly to discuss best protection practices.
Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.
New materials and design are introduced into existing products without previous notice.
