PIXIPANEL WHITE 250-O – Outdoor RGB White Digital Panel

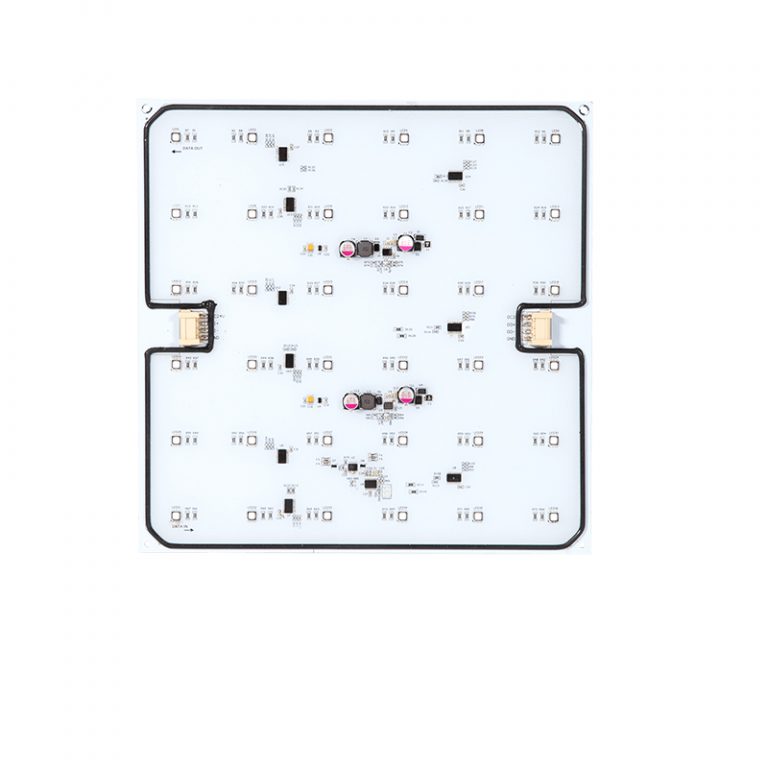

PixiPanel White 250-O is an outdoor, 250 x 250mm, IP65 rated digital white PCB panel with an insulation film at the back. It has high-brightness 36 SMD3535 RGB LEDs of 8 watts. This RGB panel is designed to install on the wall, in lighting boxes or as backlights.

Categories: , , Brand:

Product Description

PixiPanel White 250-O is an outdoor, 250 x 250mm, IP65 rated digital white PCB panel with an insulation film at the back. It has high-brightness 36 SMD3535 RGB LEDs of 8 watts. This RGB panel is designed to install on the wall, in lighting boxes or as backlights.

SOURCE

  • Light source: 36 x 8 watts SMD3535 RGB LEDs

OPTICAL SYSTEM

  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 36
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 108 CHs
  • Address setting: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 288 watts

CONNECTIONS

  • Power & data connection: 4 pin connectors
  • Cable entry: Side

PHYSICAL

  • Dimensions: 250 x 250mm
  • Color: White
  • IP rating: 65
  • Operating temperature: -40°C/80°C





Download

Data Sheet
