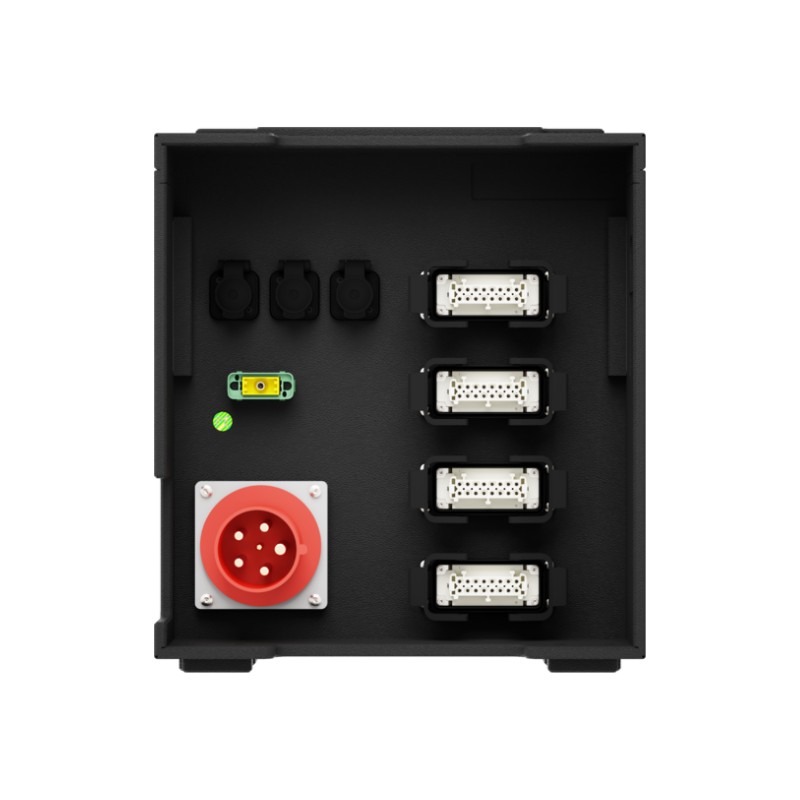

63A CEE 5P In, E16 Mulitpin/ PowerCon TRUE1 TOP/ cPot Out, RCBO, Power Container Xtreme Outdoor

Product Description

Key Features:

• High durability & protection: rugged Easylen® housing with high IK, IP44 with CEE / cPot in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
• Easy transport & handling: compact, stackable, fully lockable, integrated handles
• Reduction of cabling volume and effort  due to 4x Harting E16 Multipin Outs
• Minimization of failure impact on the event. Due to separate protection of each OUT channel against overload and electric shock (63A version)
• High quality of component and assembly add to high reliability and safety of the power distribution and the event

Applications:

• Markets: LED walls, Lighting, Other
• Mobile applications: Festivals, live events
• Semi-permanent applications: Theaters, studios, fairs

Technical Specifications:

Electrical

• Circuit protection: 25x RCBO (1-pole + N)
• Phase control indicator: L1, L2, L3, green
• Rated voltage: 415V/AC, 50Hz
• Rated Current: In: 63A

Mechanical

• Type of construction: Stackable
• Dimensions: ca. 395 x 295 x 405 mm
• Weight: 17,9 kg

Material

• Housing: Easylen®
• Color: black

Environmental

• Protection class: IP44 with CEE and cPot in mated condition
• Temperature range: -5 °C to +40 °C
