PR-10 – Pitch Roof

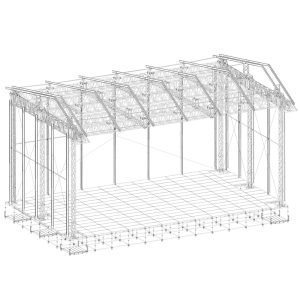

The PR10 Roof is a tower based structure with a pitched roof. This pitched roof has a standard cantilever and a special PA frame at the sleeve blocks of the front towers which can carry a PA Load of 3.000 kg each and is a working platform to slide in the outer keder canopy.

This product is currently out of stock and unavailable.

SKU: N/A Categories: , Brand:

Product Description

The Pitch Roofs are designed to be integrated in any kind of steel scaffolding stage. The wall keders can be hooked on the side of the scaffolding stage and have a double slit canopy so the lower part can be pulled up for maximum entrance space. This roof meets all the required international standards set by light & stage designers of concerts and events. Naturally PA Wings, Side Houses and Loading Docks are available by extending the roof. The PR10 Roof consist of a TT Ground Support on six TD44 Towers and a Roof Structure of special tent profiles with integrated keder profiles. The PR10 Roof is a tower based structure with a pitched roof. This pitched roof has a standard cantilever and a special PA frame at the sleeve blocks of the front towers which can carry a PA Load of 3.000 kg each and is a working platform to slide in the outer keder canopy. This is a result of the fact that the towers are positioned under the roof structure in order to have a fully closed roof top.The special tent profiles make it possible to build the roof in various configurations as each canopy keder frame has the same size as the TT truss sections. Product features
  • Size: 16x12m
  • Tower: TD 44
  • QTE (Towers): 6
  • Main Rig: TT
  • Roof Structure: Keder profile
  • PA Wing possible: Yes
  • Compression: No
  • Load PA Wing: 2000Kg
  • Width: 16,36m
  • Clearance: 11m
  • Depth: 11,7m
  • PL: 21600Kg
  • UDL: 19300Kg
Size: 20x15m
  • Tower: TD 44
  • QTE (Towers): 6
  • Main Rig: TT
  • Roof Structure: Keder profile
  • PA Wing possible: Yes
  • Compresion: No
  • Load PA Wing: 2000Kg
  • Width: 20,36m
  • Clearance: 11m
  • Depth: 14,7m
  • PL: 20000
  • UDL: 24400
Size: 24x15m
  • Tower: TD 44
  • QTE (Towers): 6
  • Main Rig: TT
  • Roof Structure: Keder profile
  • PA Wing possible: Yes
  • Compression: No
  • Load PA Wing: 2000Kg
  • Width: 24,36m
  • Clearance: 11m
  • Depth: 14,7m.
  • PL: 20000Kg
  • UDL: 17500Kg
