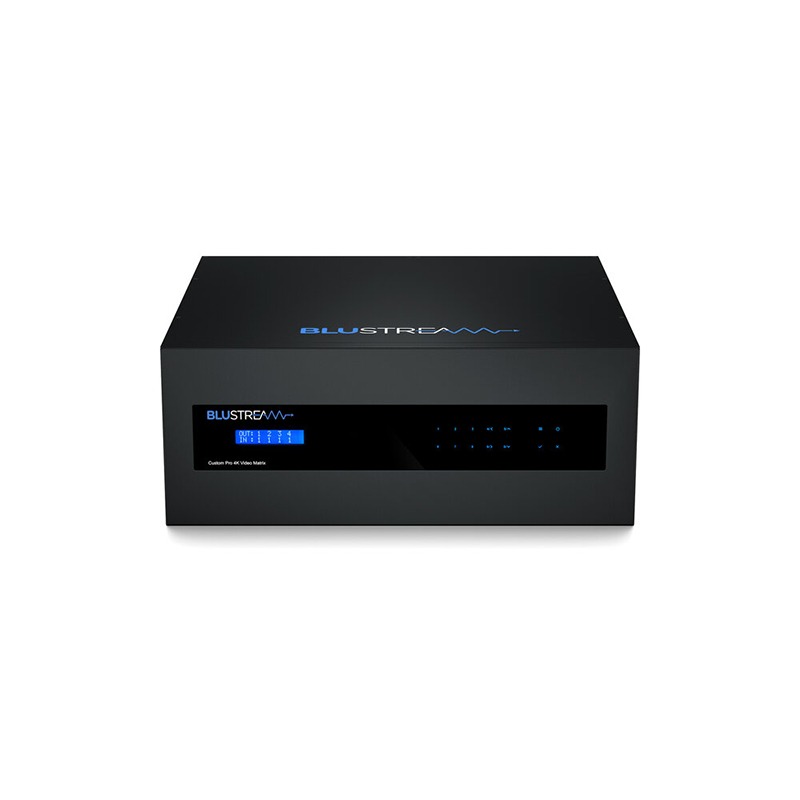

PRO16HBT70CS - 70m Custom Pro 16x16 HDBaseT™ CSC Matrix

Product Description

Key Features

• Pre-configured Custom Pro Matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 40m at 4K 60Hz 4:4:4, or up to 70m at 1080p
• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):

  – 1080p@ 60Hz (for screens that do not support 4K)

  – 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Extend 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
• Audio breakout board with line-level volume control
• Web browser interface for control and configuration of matrix
• Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
• 3rd Party drivers available for major commercial & residential control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Used with Blustream HEX70CS-RX receivers (sold separately)

Specifications

• Video Input Connectors: 16 x HDMI Type A, 19-pin, female
• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 16 x HDBaseT™ RJ45 connector
• Source Audio Output Connectors: 16 x 3.5mm stereo jack (L/R)
• Zone Audio Output Connectors: 16 x 3.5mm stereo jack (L/R), 16 x RCA Coaxial Digital (S/PDIF)
• Audio Input Connectors: 16 x 3.5mm stereo jack (L/R)
• RS-232 Serial Ports: 1 x 9-pin RS-232 connector
• IR Input Ports: 16 x 3.5mm stereo jack
• IR Output Ports: 16 x 3.5mm mono jack
• TCP/IP Control: 1 x RJ45 connector, female
• Rack Mountable: 4U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 173mm x 422mm without feet
• Dimensions Including Connections (W x H x D): 440mm x 178mm x 430mm with feet
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Internal 100-240V AC, IEC cable supplied
