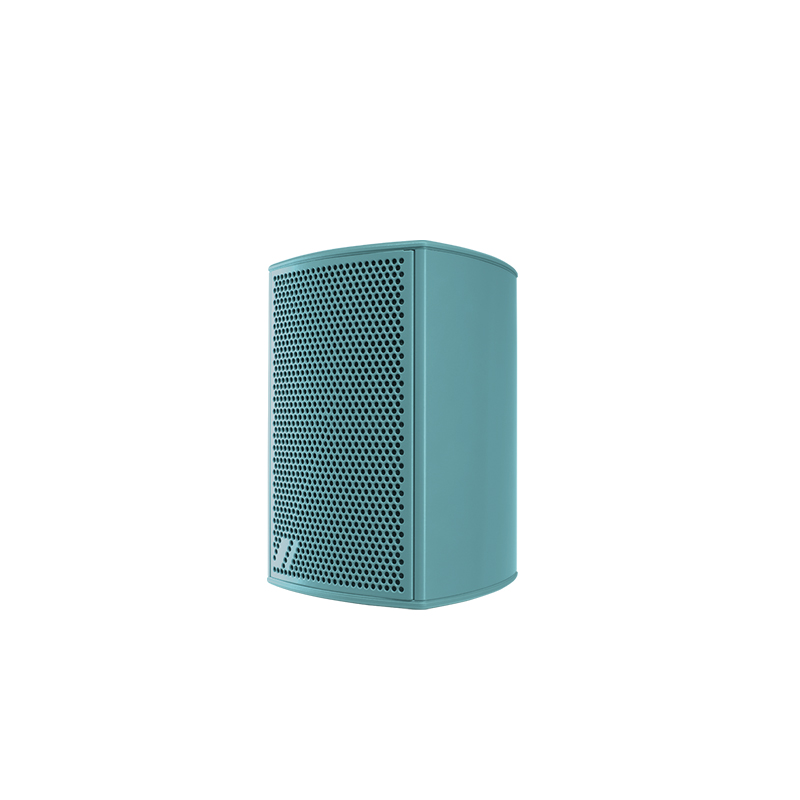

Q-23-T Passive Speaker System

Q 23T Passive system from Quantum Series.

The Q-23-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-23T has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

The aluminum enclosure and the IP-54 kit make this a highly reliable and durable choice, available in any RAL color.

Clear

Product Description

Q-23-T Passive Speaker System
– Aluminum enclosure – 2 x 3”, 3P16 full-range speaker – Dispersion HxV: 120º x 70º |90º – SPL peak: 112 dB – Multi-tap 100 / 70V transformer included – Low- and high-impedance operation – Available in all RAL colorsThe Q-23-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-23T has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.The aluminum enclosure and the IP-54 kit make this a highly reliable and durable choice, available in any RAL color.
Performance
Frequency Range (-10 dB) 150 Hz – 20 kHz
Horizontal Coverage (-6 dB) 120º
Vertical Coverage Switchable: 90º -70º
Nominal Impedance 8 ohms
Transformer Taps 70 V 5 W – 10 W – 15 W
Transformer Taps 100 V 10 W – 20 W – 30 W
RMS Power Handling 40 W
Peak Power Handling 160 W
On-axis Sensitivity 1W/1 m 90 dB SPL
Maximum Peak SPL at 1 m 112 dB SPL
Recommended Amplifier IA-402 IA-404
Recommended Processor DSP-226
Connectors
Audio Input Connector 2-way Phoenix 2.54 mm
Enclosure
Enclosure Construction Aluminum
Finish Paint
Color Black Optional: RAL Colors
IP Rating IP54
Dimensions ( H x W x D ) 190 x 125 x 125 mm 7,5 x 4,9 x 4,9 in
Net Weight 2,8 kg ( 6,2 lb )
Components
MF Driver 3P16

Additional information

Color

Black, White, Custom RAL
