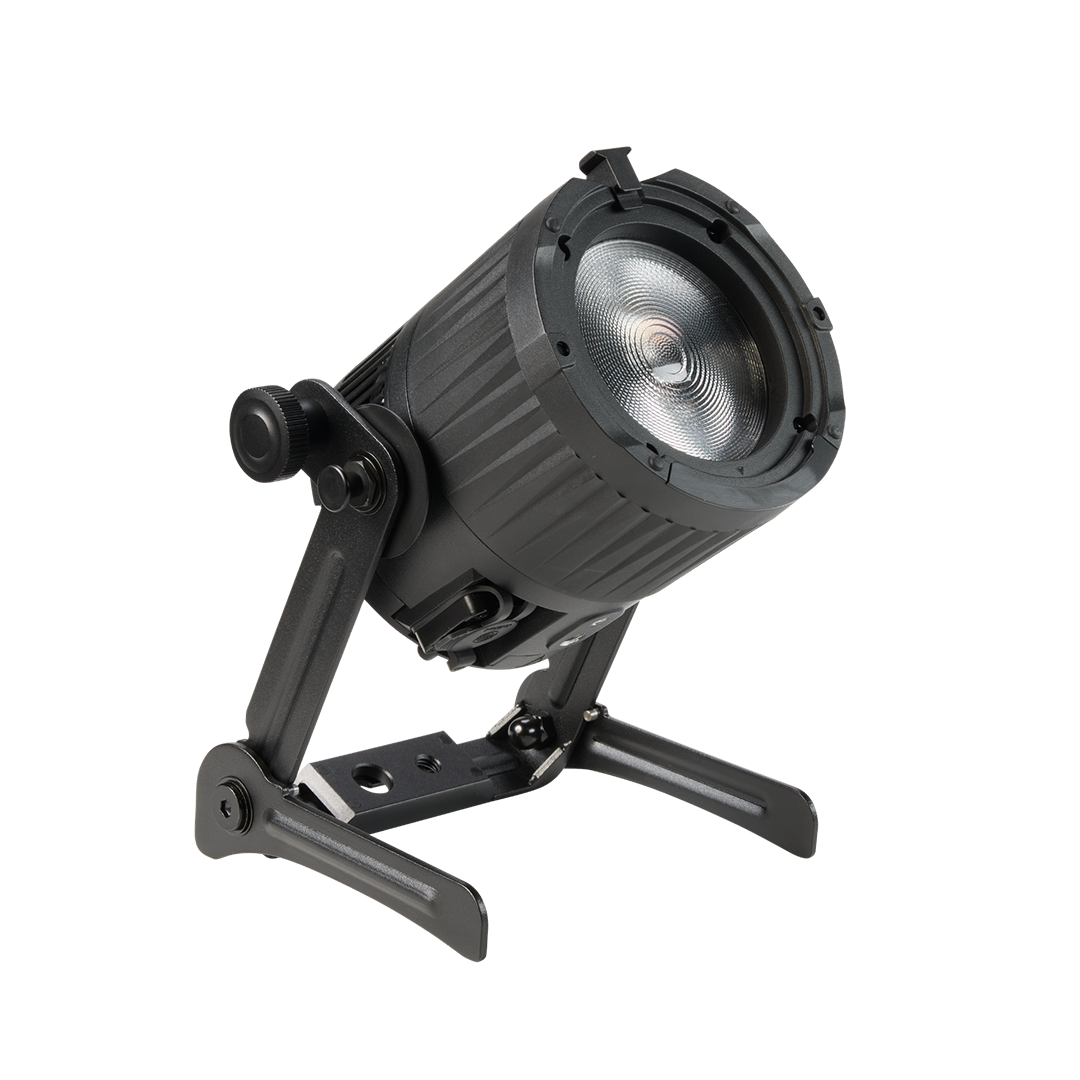

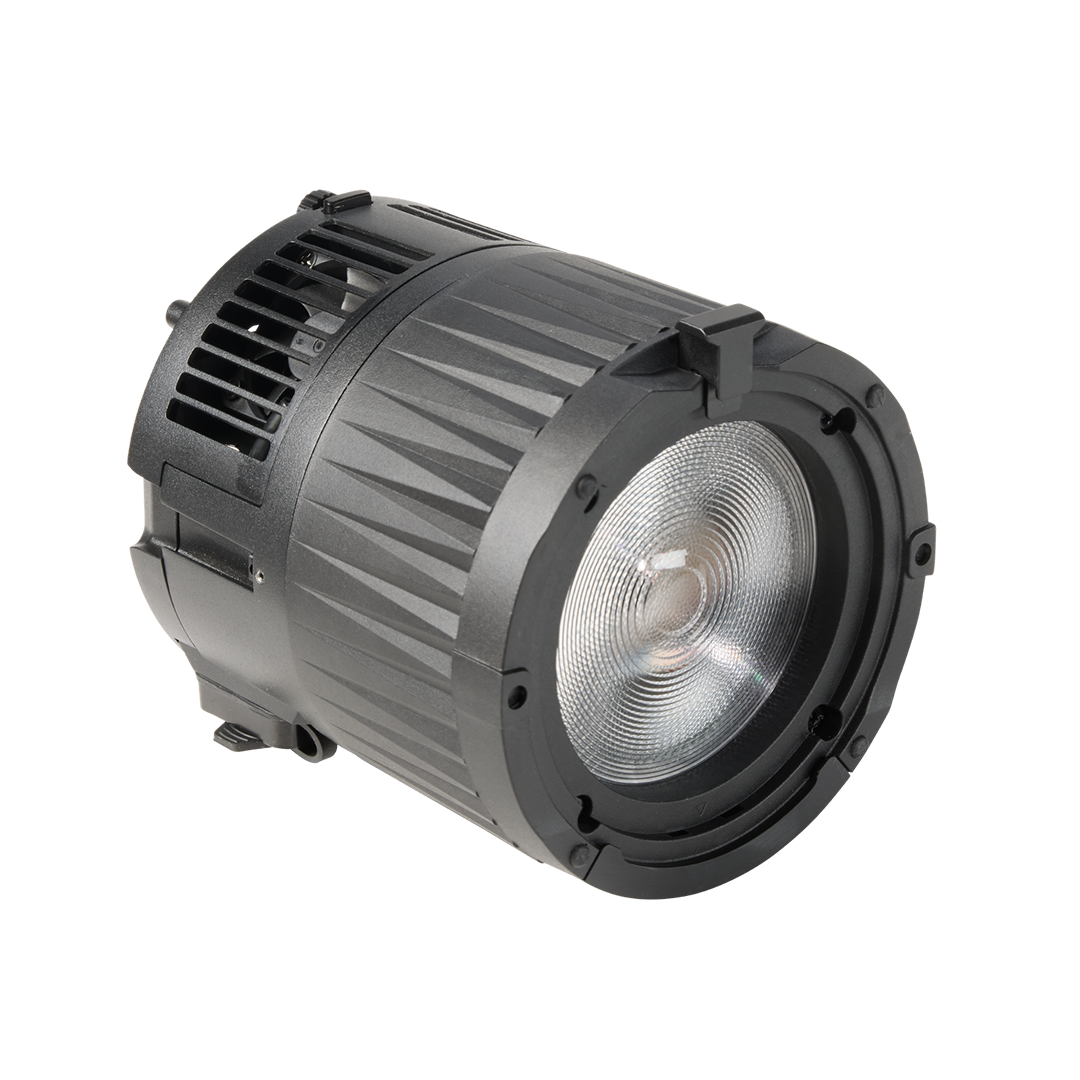

Astera - QuikBeam Zoomable small LED spotlight with swappable battery

Product Description

Technical Specifications

Versions

• QuikBeam (with battery) – Order Code: AST-QUKBM-STD
• QuikBeam (without battery) – Order Code: AST-QUKBM

Light Source

• LED Engine: Titan LED Engine
• Colors: RGB Mint Amber
• LED Power Draw: 20 W
• CRI / TLCI (3200–6500 K, OutputGain disabled): ≥96
• OutputGain: Yes

Photometric Performance

• Luminous Flux
• 2,700 K: 1,124 lm
• 3,200 K: 1,190 lm
• 4,000 K: 1,239 lm
• 5,500 K: 1,285 lm
• 6,500 K: 1,224 lm

Candela

• 2,700 K: 18,545 cd
• 3,200 K: 19,575 cd
• 4,000 K: 20,312 cd
• 5,500 K: 20,663 cd
• 6,500 K: 20,564 cd
• Light Output @ 3 m

• 2,700 K: 2,059 lux
• 3,200 K: 2,174 lux
• 4,000 K: 2,257 lux
• 5,500 K: 2,294 lux
• 6,500 K: 2,285 lux

Optics & Effects

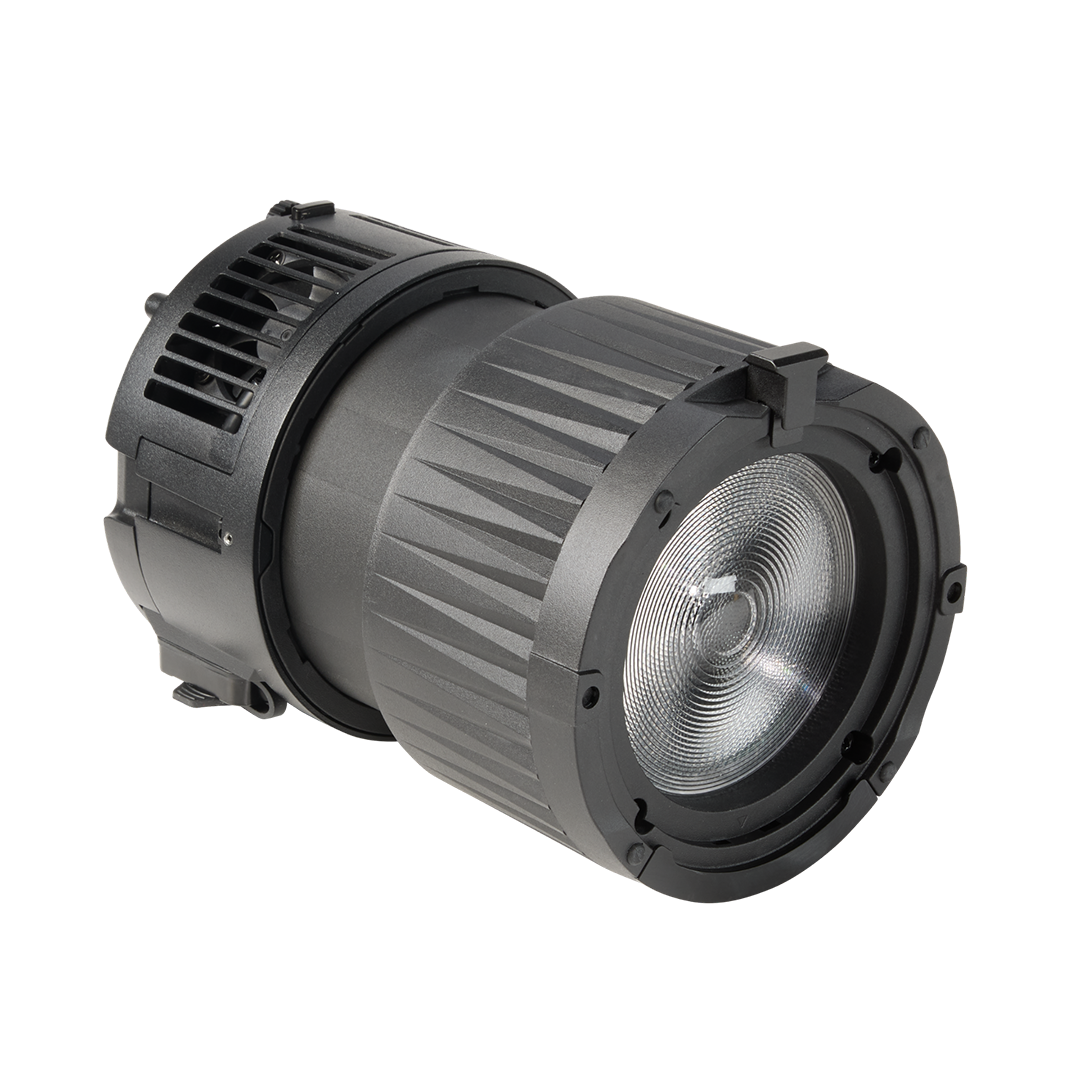

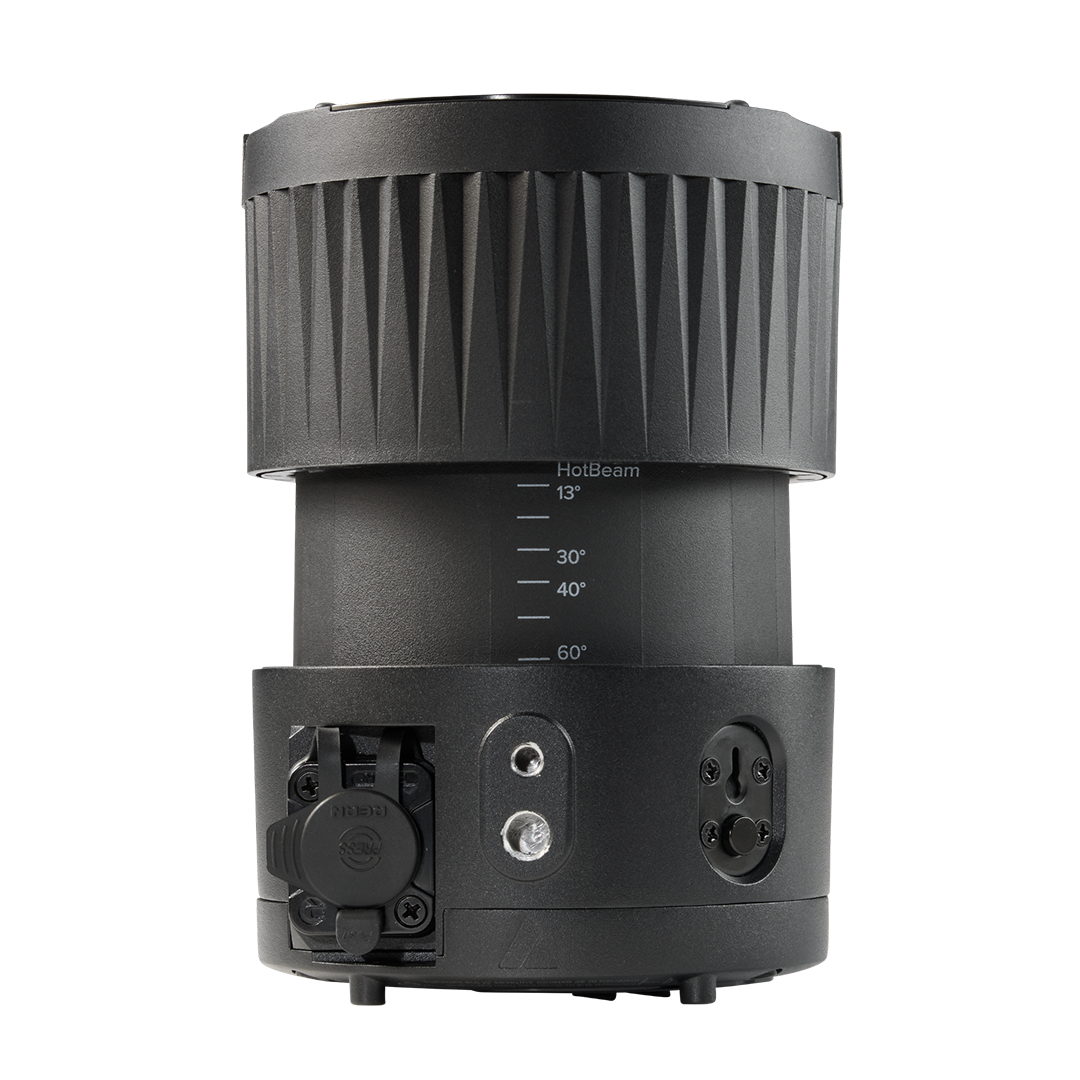

• Beam Angle: 12.6° – 58.5°
• Field Angle: 16.9° – 78.2°
• Strobe: 0 – 25 Hz

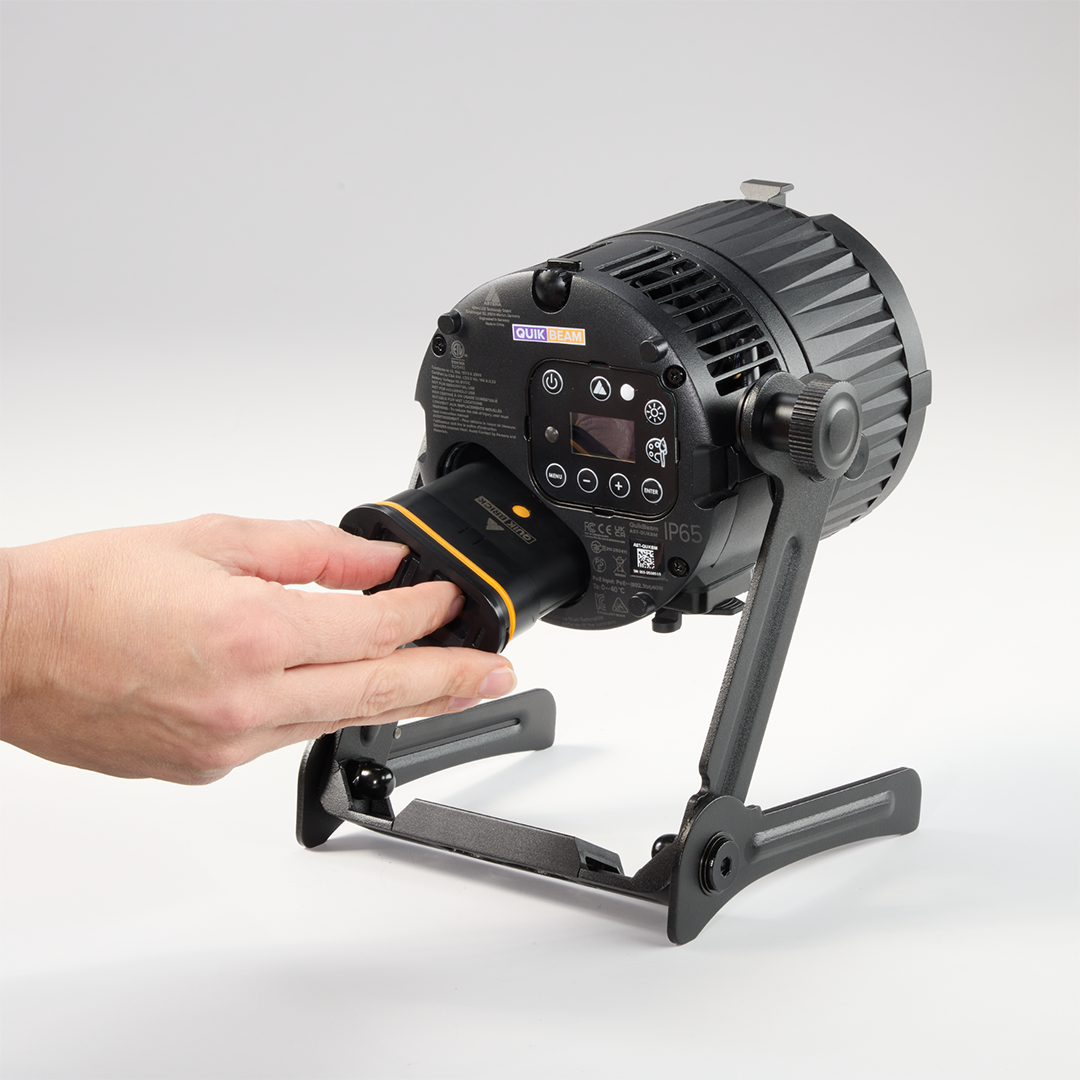

Power & Battery

• With Battery Version
• Battery Runtime: up to 20 hours
• Battery Runtime (max brightness): 1 h 20 min
• Charging Time (nominal): 2 h 40 min
• Without Battery Version
• Battery: N/A

Connectivity & Control

DC Input: PoE++

• DC Connector: RJ45
• Ethernet Port Speed: 100 Mbit/s
• Power Consumption (max.): 40 W
• Cable Length: up to 100 m
• Art-Net / sACN: via Ethernet
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range: CRMX / UHF: up to 300 m / 330 yds Bluetooth: up to 3 m / 3.3 yds
• RDM Support: via CRMX
• Infrared Control: Yes

Environmental

•  IP Rating (wired & unwired): IP65
• Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
