RAIL R120 - 24V

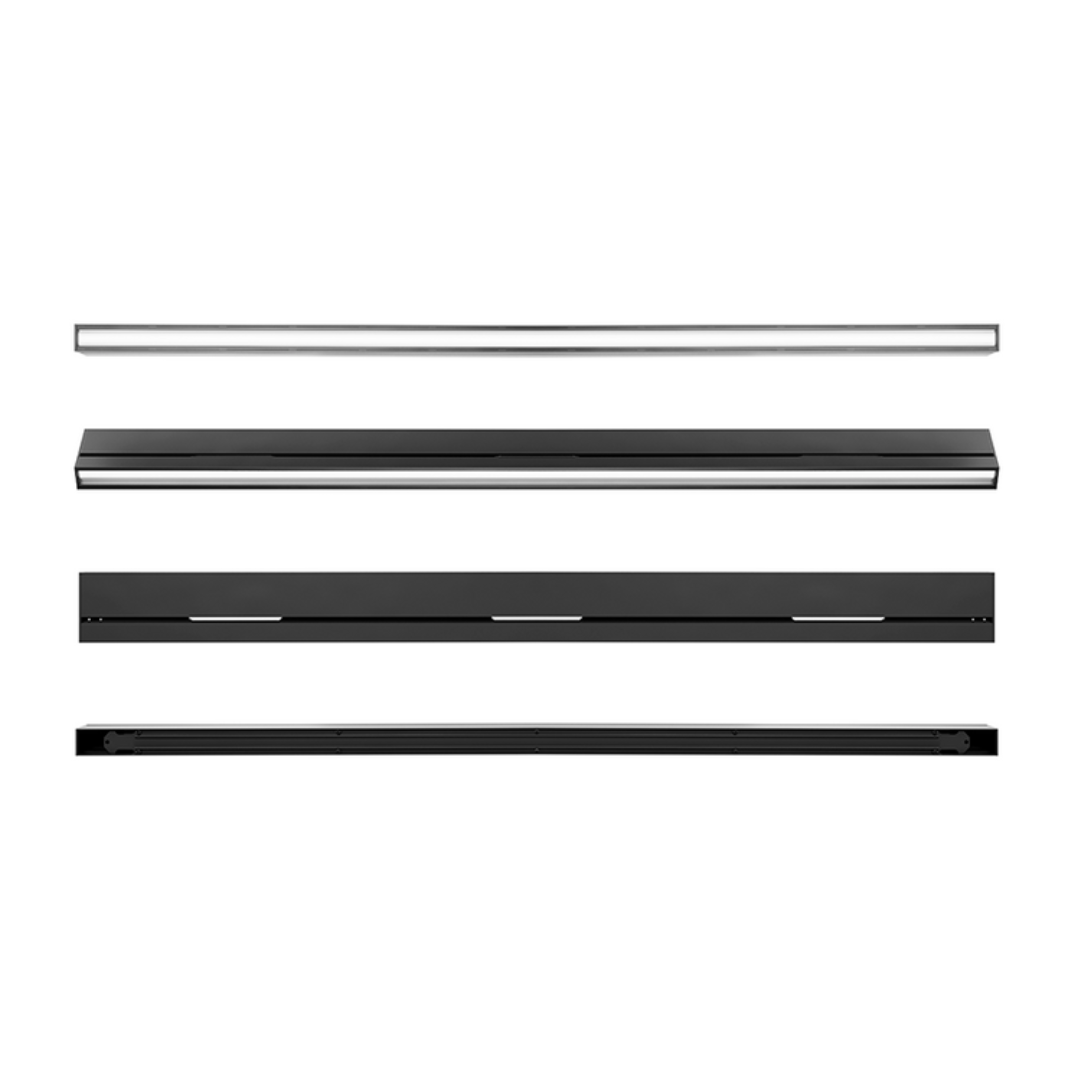

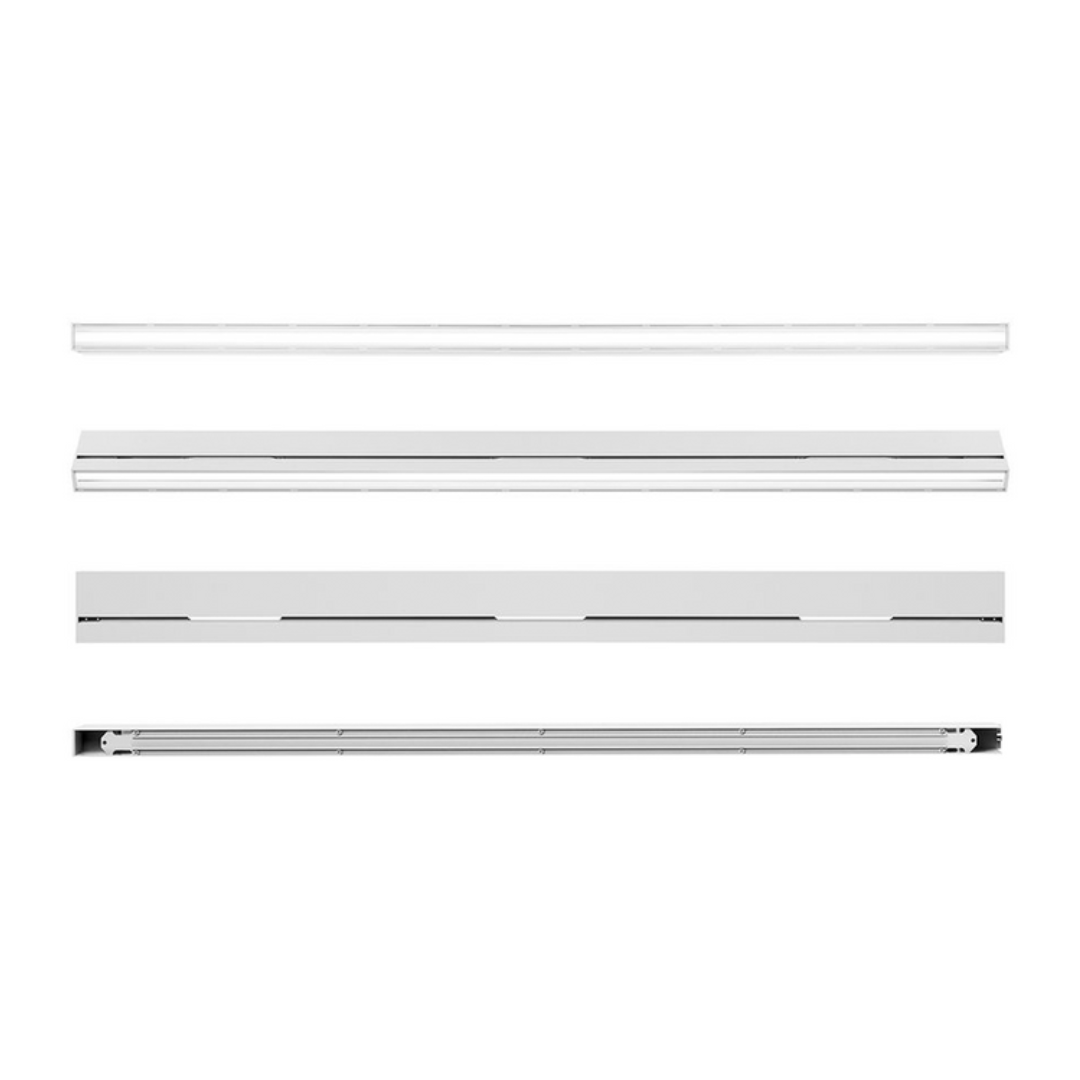

RAIL is perfect for any workplace, residential or commercial installation where light and sound are essential. Its sleek and simple design makes it a great addition to any space, and its aluminium 1.2m (4 feet) form is available in a variety of colors to match any decor. RAIL is available in a variety of optics such as Symmetric, Asymmetric, Diffused or Electrified Track 24V with projectors and can be mounted as suspended, recessed, appliqué or plafond. You can also add an indirect optic for suspended mounting. RAIL works best with Tunable White 2700k – 5000k and can be controlled through DALI, CASAMBI or simply 24V on/off. Control audio with a K-array amplifier such as the KA-14 or KA28 that include cloud based features and easy to install.

Add to Quote

Category: Lighting Brand: KSCAPE

Description

Product Description

General

Type: Audio + Light
Dimensions (W x H x D): 1190x35x59 mm (46,8X1,37X2,32 in)
Weight: 3kg (5.86 lb)
Material: Extruded aluminum body and stainless steel elements
Colors: White/Black/Custom RAL
IP Protection: IP40

Lighting Characteristics

LED: Cree + Osram
LED lifetime: Lm80 60.000h 25°
Input voltage: 24 Vdc constant voltage
Control Interface: Standard 24Vdc / Dali ready / Casambi ready
Driver: Electronic remote driver

Audio Electrical Characteristics

Type: Distributed point source
Transducers: 3 x 1”x 5” neodymium magnet transducers with 0.65” voice coil
Frequency Response: 60 Hz – 20 kHz (-6 dB) [full-range preset @ 84dB max SPL] | 200 Hz – 20 kHz (-6 dB) [w/subwoofer preset @ 97 dB max SPL]
Rated Power: 75W peak
Max SPL: 97 dB peak with dedicated preset
Coverage: V: 10° | H: 110° (unit set in vertical position)
Nominal Impedance: 48 Ω
