RAIL S - Track / Indirect Tunable Light

RAIL S

RAIL S

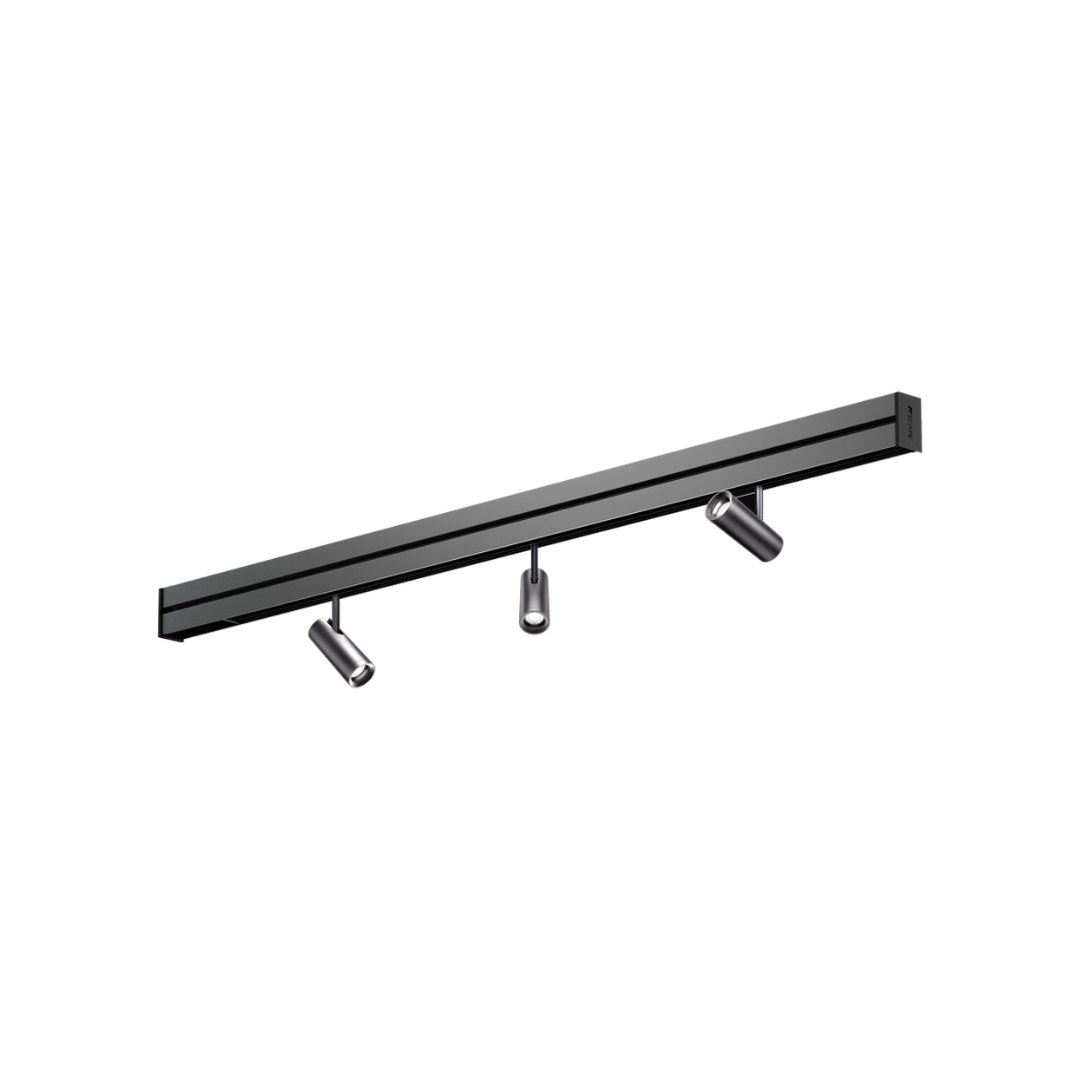

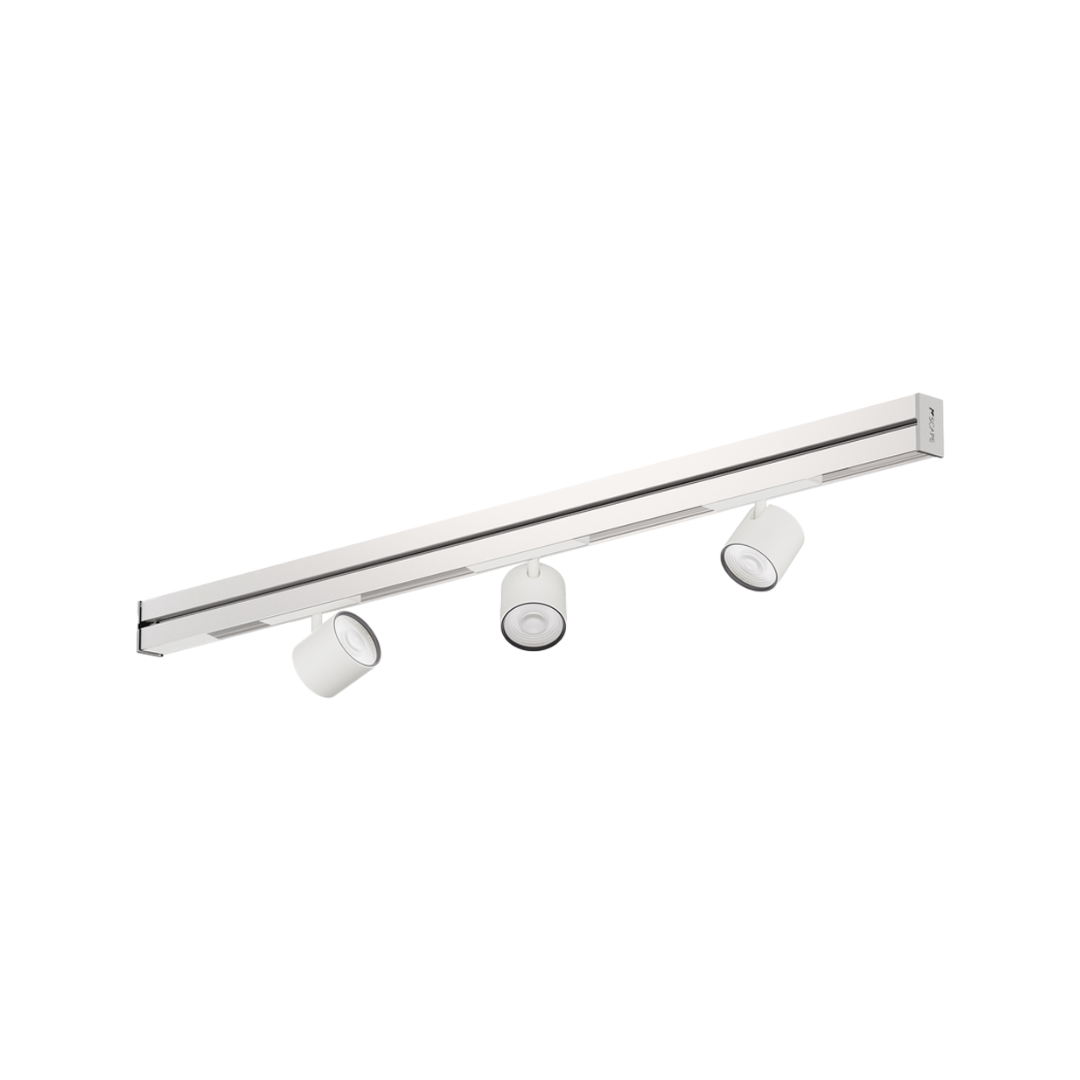

Discover RAIL S, KSCAPE’s latest innovation that seamlessly blends light and professional sound powered by K-array. Unveiling initially as a versatile track system, RAIL S combines a 4ft (1.2m) linear architectural lighting system with integrated projectors, changeable optics, and superior audio—all within a sleek design that respects the architect’s vision.

Experience professional audio excellence powered by K-array Audio Technology with a minituarized point source loudspeaker that defies its discreet dimensions. Boasting a wide coverage of 140°, a frequency response from 500 Hz to 18 kHz, and a peak SPL of 86 dB, it delivers uncompromised audio performance and a distinctive audio characteristic for RAIL S.

SKU: RS12-EO-C-TC-B-AU Brand: KSCAPE

Description
Downloads

Product Description

General

Type: Audio + Light
Dimensions (W x H x D): 1190x35x59 mm (46,8X1,37X2,32 in)
Weight: 2,5 kg (5,5 lb)
Material: Extruded aluminum body and stainless steel elements
Colors: White/Black
IP Protection: IP20

Lighting Characteristics

LED: Cree
LED lifetime: Lm80 60.000h 25°
Input voltage: 24 Vdc constant voltage
Control Interface: Standard 24Vdc / Casambi ready
Driver: Electronic remote driver
Optic: Multisystem Stucchi track inside

Audio Electrical Characteristics

Type: Point source
Transducers: 1×0.5” meodymium magnet woofers
Frequency Response: 500Hz – 18kHz (-6dB)
Rated Power: 3,5W
Max SPL: 86 dB (peak)
Coverage: V: 140° | H: 140°
Nominal Impedance: 16 Ω
