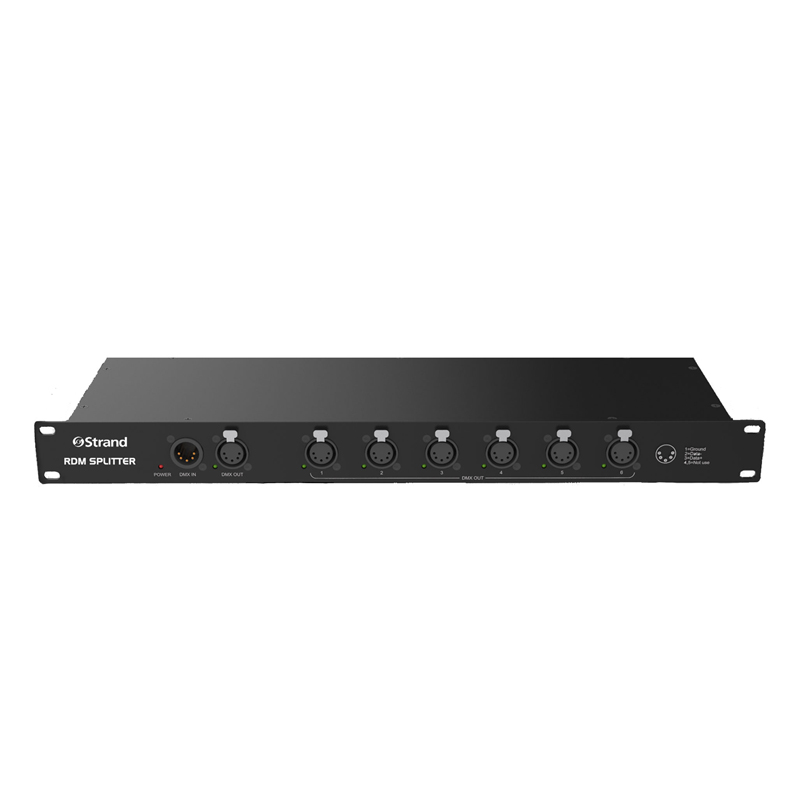

RDM SPLITTER – splitter is a 6-port, rack mounting RDM transparent

The Strand RDM/DMX splitter is a 6-port, rack mounting RDM “transparent” splitter designed for distribution of DMX-512A(RDM) signals in a lighting network. Easy to use with high quality XLR 5 pin signal connectors, this unit provides robust plug and play capabilities for the distribution of DMX within typical entertainment environments.
The Strand RDM Splitter provides six buff ered, electrically isolated outputs for connection to and control of DMX and RDM capable devices. Packaged into a 1U high rack mounting package it allows the splitter a to become a key part of your lighting installation. Power to the unit is provided via a locking PowerCon connector, ensuring power cannot accidentally be disconnected, helping you to safeguard your data distribution network against accidental power disconnection.

Product Description

The Strand RDM/DMX splitter is a 6-port, rack mounting RDM “transparent” splitter designed for distribution of DMX-512A(RDM) signals in a lighting network. Easy to use with high quality XLR 5 pin signal connectors, this unit provides robust plug and play capabilities for the distribution of DMX within typical entertainment environments. The Strand RDM Splitter provides six buff ered, electrically isolated outputs for connection to and control of DMX and RDM capable devices. Packaged into a 1U high rack mounting package it allows the splitter a to become a key part of your lighting installation. Power to the unit is provided via a locking PowerCon connector, ensuring power cannot accidentally be disconnected, helping you to safeguard your data distribution network against accidental power disconnection. FEATURES • Compatible with both DMX-512A(RDM) and DMX-512(1990) • 1 U rack mount housing design • Signal In/Thru (XLR 5pin) front or rear • 6 ports electrically isolated and buffered output (XLR 5 pin) • CE / ETL/cETL and FCC marked • Locking power connector with PowerCon power input (power cables sold separately)

Download

Data Sheet
