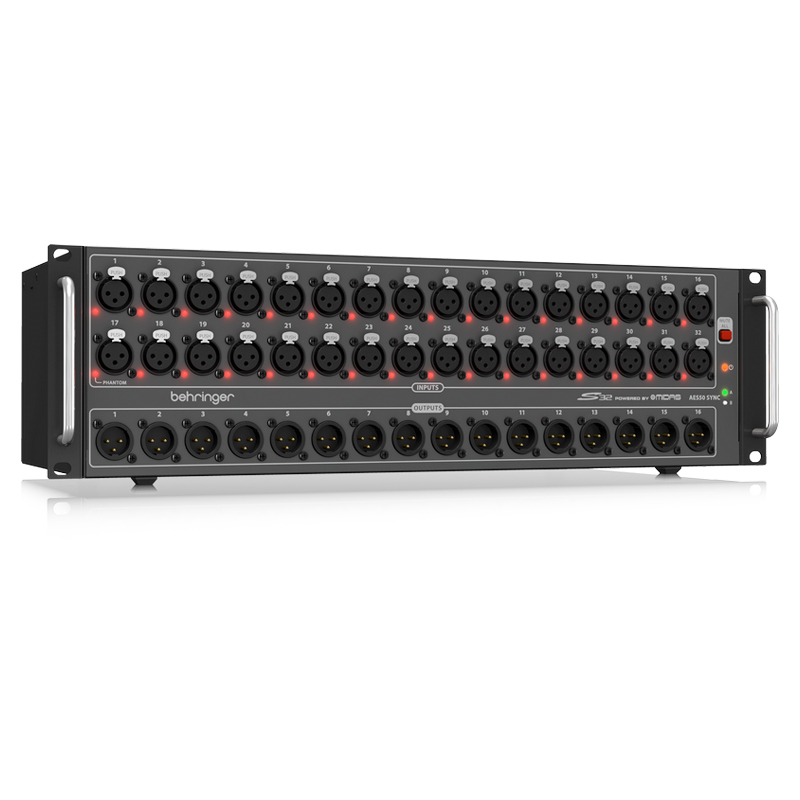

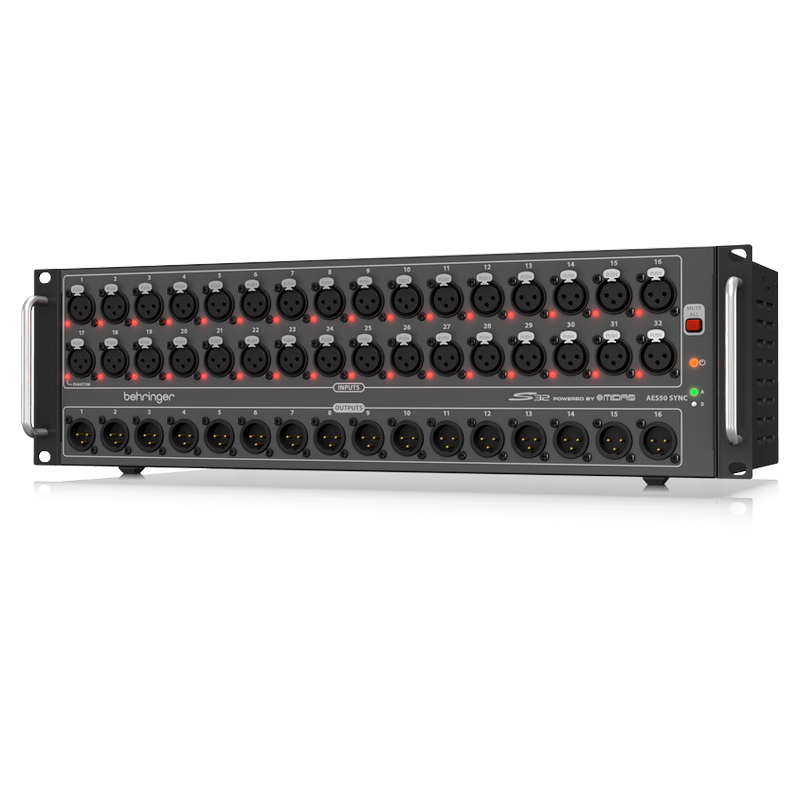

S32 - I/O Stagebox with 32 Remote-Controllable MIDAS Preamps

Product Description

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The ultra-affordable S32 digital stage box bridges the gap between the onstage talent, Front of House (FOH) console and the rest of the world with its ultra-fast and rock-solid performance!

The S32 provides 32 MIDAS-designed remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 328 ft / 100 m).

Key Features:

• 32 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 16 analog, servo-balanced XLR outputs
• AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
• ULTRANET Connectivity for Behringer’s P16 personal monitoring system for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Automatic AES50 stage-split mode when connected between Behringer X32 Series FOH and monitor consoles
• Dual AES50 ports for cascading additional S16, SD16 or SD8 stageboxes—no merger or router required
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• USB connector for system updates via PC
• “Planet Earth” switching power supply for maximum flexibility (100- 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• “Built like a tank” yet compact, all-steel 3U rack-mount chassis
• 3-Year Warranty Program
• Designed and engineered in Germany
