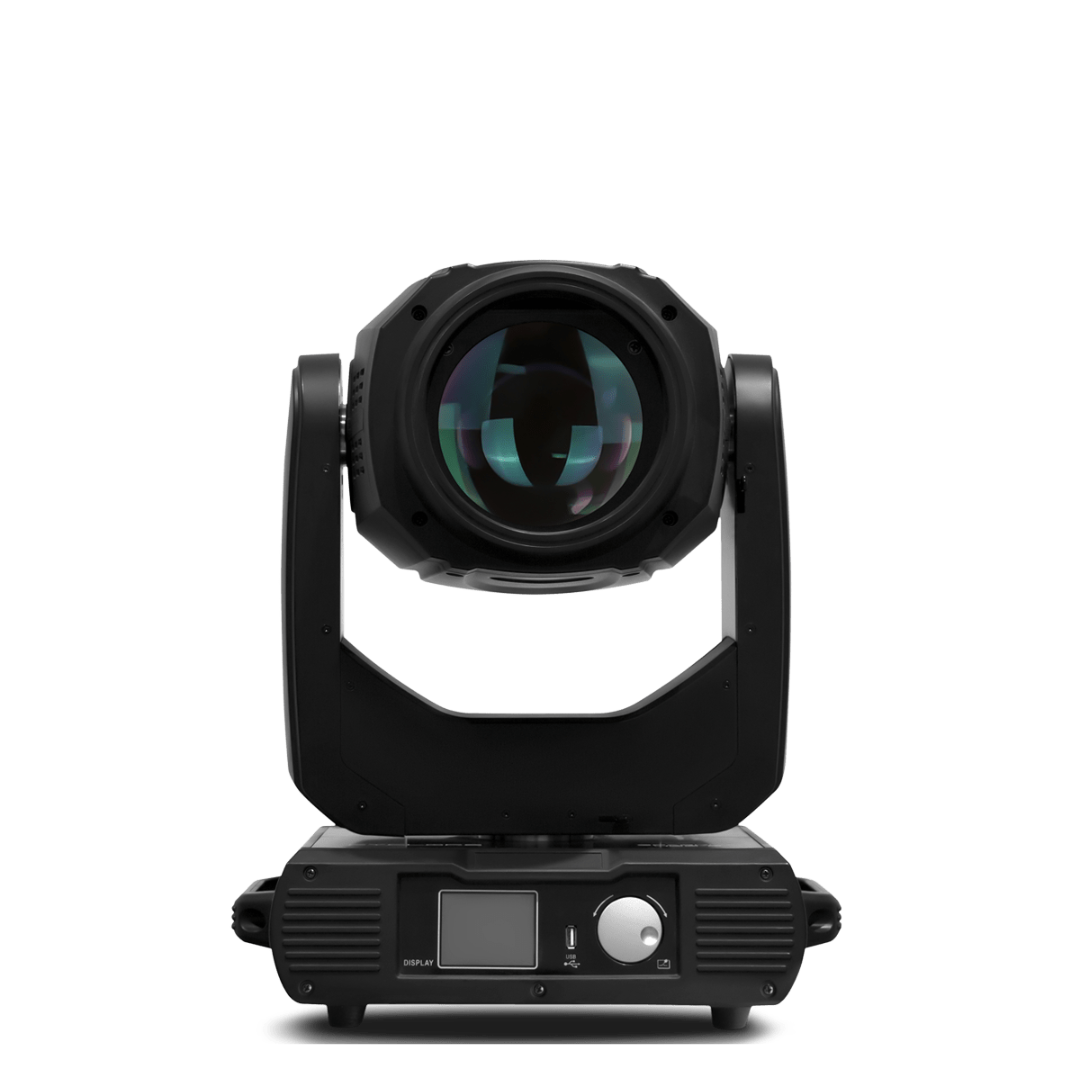

SPARKLY 440B - High Power Beam Moving Head

Product Description

SOURCE

• Light source: 400 watts
• Lamp life expectancy: 1,500 Hrs.

OPTICAL SYSTEM

• Beam angle: 4° and 6°
• Light output: 390,000 Lux @ 10m @ 4°
• Electronic focus

DYNAMIC EFFECTS

• Dimmer: Linear adjustment
• Color wheel: 14 colors + open
• Electronic variable strobe
• Static gobo: 14 gobos + open
• Gobo shake function
• Prism 1: 16 facet prism – 6 linear facet prism – Frost
• Prism 2: 32 facet prism – 6 linear facet prism – 1 double prism (6+12)
• Prism are combinable with independant rotation

CONTROL & PROGRAMMING

• Control protocols: DMX
• Display: 2.8’ full color touch screen, reversible 180°
• Control channels: 16, 19 CHs

MOVEMENT

• Pan: 540°
• Tilt: 280°
• Resolution: 16 bit

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 600 watts

CONNECTIONS

• DMX connections: 3 pin and 5 pin XLR In/Out male
  and female
• Power connections: PowerCon In

PHYSICAL

• Dimensions: 410 x 350 x 592mm
• Net weight: 20 Kg
• Color: Black
• IP rating: 20
