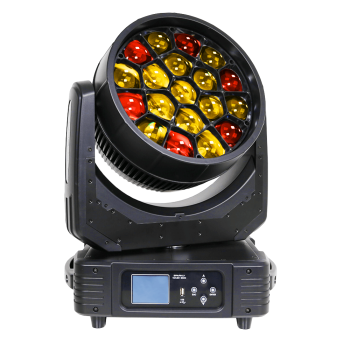

SPARKLY 500SBW - Hybrid Spot Beam Wash Moving Head

Product Description

SOURCE

• Light source: Osram Sirius HRI 470 watts
• Lamp life expectancy: 1,500 Hrs.

OPTICAL SYSTEM

• Beam angle: 2.5° to 45°
• Light output: 241,000 Lux @ 10m @ 2.5°
• Electronic focus

DYNAMIC EFFECTS

• Dimmer: 16 bit linear adjustment
• Color mixing: CMY
• Color wheel: 13 colors + White
• CTO Filter
• Static gobo: 14 gobos + open
• Rotating gobo: 9 gobos + open
• Gobo shake function
• Prism 1: 8 facet prism – 6 linear facet prism – cylindrical
• Prism 2: 8 facet prism – 6 linear facet prism – double layer
• Prism are combinable with independant rotationFrost

CONTROL & PROGRAMMING

• Control protocols: DMX/RDM
• Display: 2.8’ touch screen display, can reverse 180°
• Control channels: 34, 39 CHs

MOVEMENT

• Pan: 540°
• Tilt: 270°
• Resolution: 16 bit

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 600 watts

CONNECTIONS

• DMX connections: 3 pin and 5 pin XLR In/Out male and female
• Power connections: Powercon In

PHYSICAL

• Dimensions: 410 x 250 x 690mm
• Net weight: 24.5 Kg
• Color: Black
• IP rating: 20
