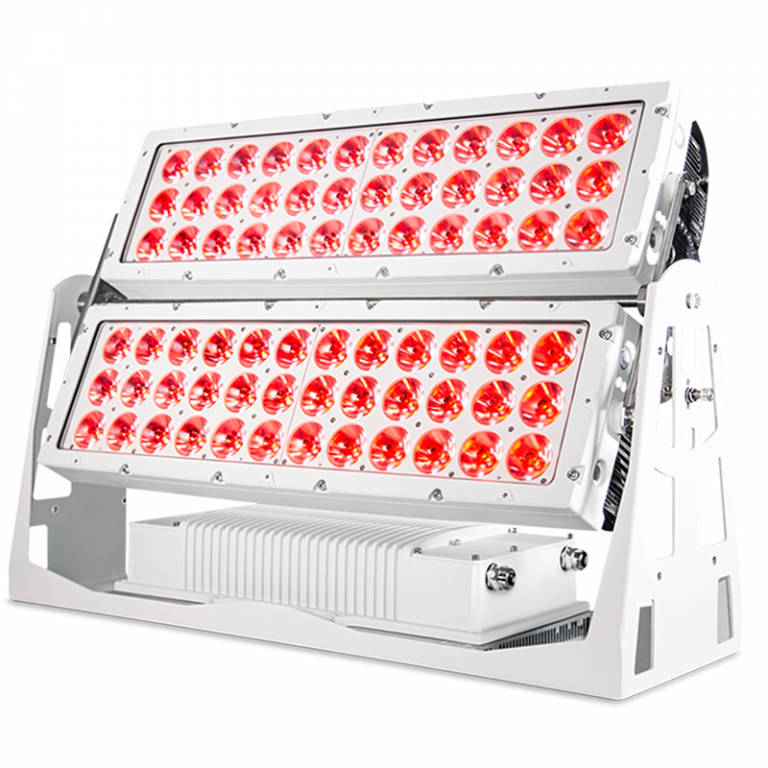

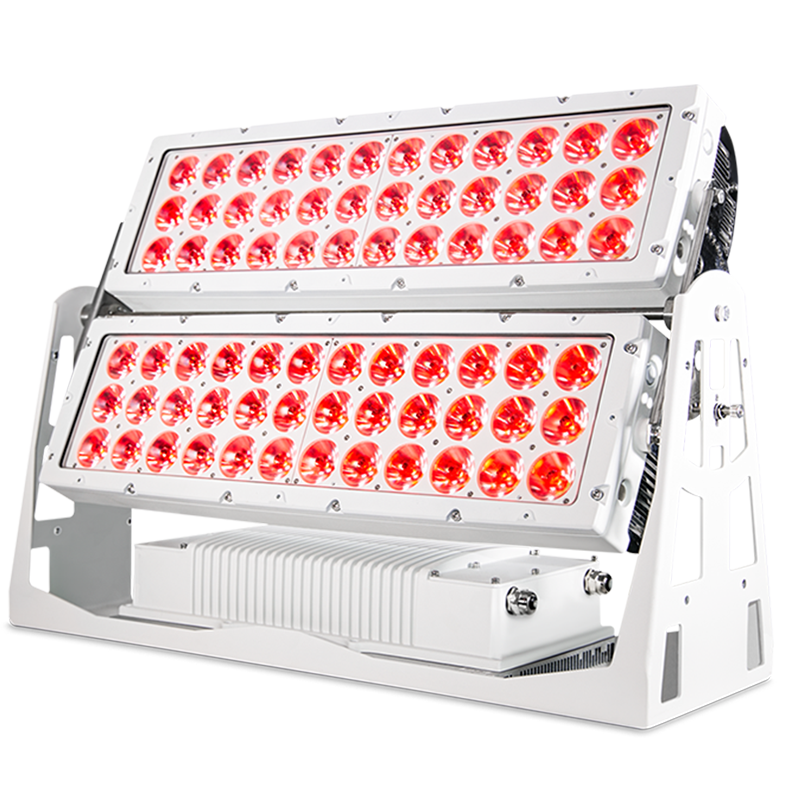

TITAN 472-RGBW - Multi-chip RGBA LED City Wash

Product Description

TITAN 472-RGBW is a 72×15 watts multi-chip RGBW, LED city wash. It has excellent color mixing effect, high color saturation, high light efficiency, high illumination, high performance and stability, it is realizable to achieve the perfect color interpretation and ultra-long light casting distance. Optional wireless DMX 512 control, it provides diverse lighting solutions for a variety of large outdoor lighting projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building and other large occasions.

SOURCE

• Light source: 72×15 watts multi-chip RGBW
• LED life expectancy: 50,000 Hrs
• Peak Intensity: 525800cd (14°

OPTICAL SYSTEM

• Optics: 14° , 25°
• Light output: 4,500 Lux @ 10m @ 14°

CONTROL & PROGRAMMING

• Control Protocols: DMX
• DMX control channels: 0-100%
• Controllable sections: 8
• Dimmer: 0% -100%; 16 Bit
•  Color Mixing: RGBW

ELECTRICAL

• Input Voltage: AC100 – 277V
• Max Power: 1200 W
• Power Factor: > 0.9

CONNECTIONS

• Power connection: 3m cable (input only)
• Data connection: 3m cable (input output)

PHYSICAL

• Dimensions: 881x252x569 mm
• Net Weight: 46 kg
• Color: Off – white (Gray, Black Optional)
• Housing: Die-cast aluminum
• Security: Anti-thunder shock protection design
• IP Rating: 66
• Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
