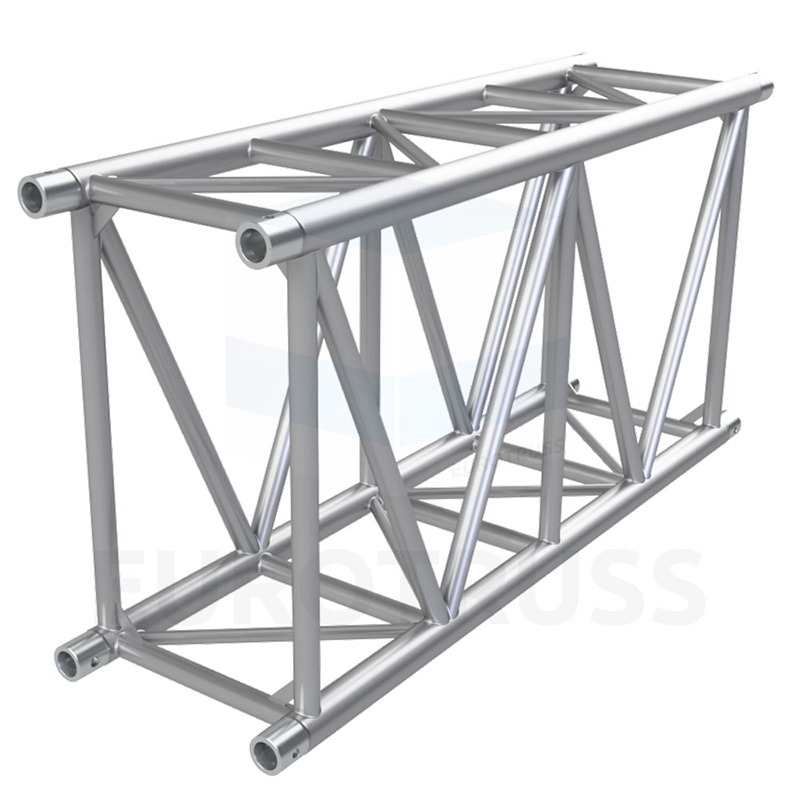

TTS Rectangular Truss

Product Description

The outside dimensions are slightly bigger due to the increased main tube and the self weight grows with 10kg per meter (6,7 lbs per ft) up to a reasonable 35kg per meter (23,5 lbs per ft).

The attractive feature is that with the TTS Eurotruss developed a stronger pre-rig with an enormous higher load bearing capacity which increased with 75% compared to the standard TT. The TTS is standard equipped with grey castor wheel sets.

The result shows that the TTS is just more than an upgraded TT, it is a superb Pre Rig Truss to line up with the TT Range in Truss, Towers and Roofs and is the main rig truss for the highly praised Pitch Roof PR15.

Made with the fast connection system and approved  according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

Facts

• Tolerance free conical connector system
• High stability aluminium alloy
• Excellent load bearing capacity
• Low dead weight
• High wear resistance
• TüV approved
• 5 mm wall thickness of 100 mm main tube

Technical Specifications

Height: 1050 mm / 41.34 in
Width: 620 mm / 24.41 in
Main Tube: 100 x 5 mm / 3.94 x 0.20 in
Braces: 50 x 3 mm / 1.97 x 0.12 in
Braces: 30 x 3 mm
Weight: ~35kg/m / ~23,5lbs/ft
Pin Position: Top Vertical and bottom Horizontal
Material: EN AW-6082 T6
Connection: CS5-CON
