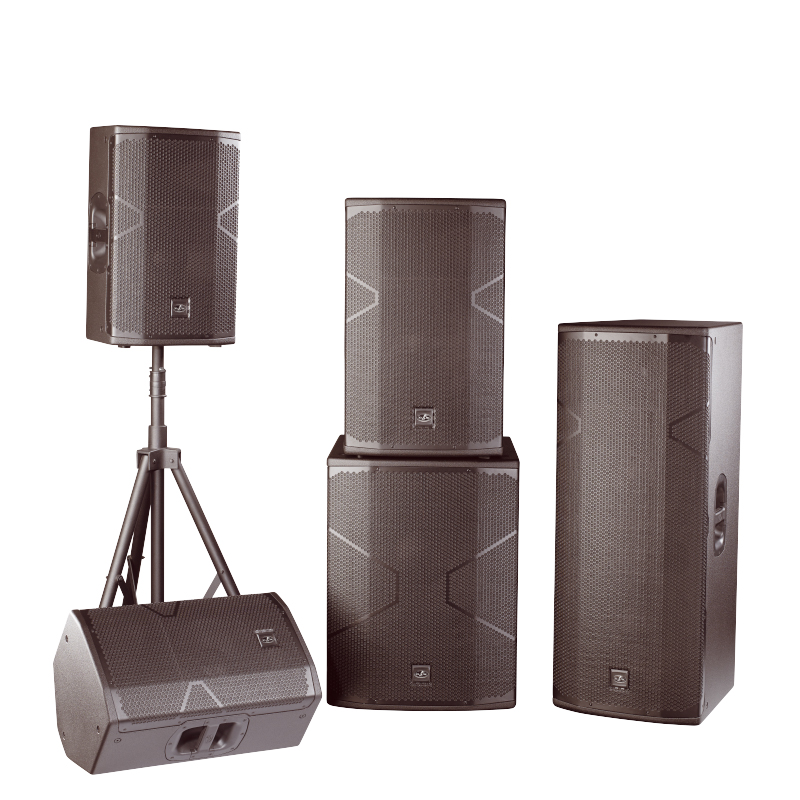

Vantec 12A – Multi-purpose Full Range System

The Vantec 12A is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.



Categories: , Brand: Series:

Product Description

The Vantec 12A is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system. The 1500 Wpeak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also  allows users to wirelessly stream music from any mobile device. – Compact multi-purpose system with monitor position – Ultra lightweight Class D amplifier with SMPS – User definable DSP with LCD screen – Wireless streaming of music – Pole mount socket with dual angles 0º/10º – Rigging points Product features
  • Amplifier Power:1500 Wpeak Clase D, Biamplified
  • Frequency Range (-10 dB):60 Hz – 20 kHz
  • Rated Peak SPL at 1 m:135 dB
  • Dispersion:90º x 50º
  • Enclosure Material:Birch Plywood
  • Color/Finish:Black ISO-flex Paint
  • Connectors INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON
  • AC Requirements:115 V, 50 Hz/60 Hz 230 V, 50 Hz/60 Hz
  • Dimensions (H x W x D):61 x 38 x 37.5 cm 24 x 15 x 14.8 in
  • Weight:21 kg (46.2 lb)
