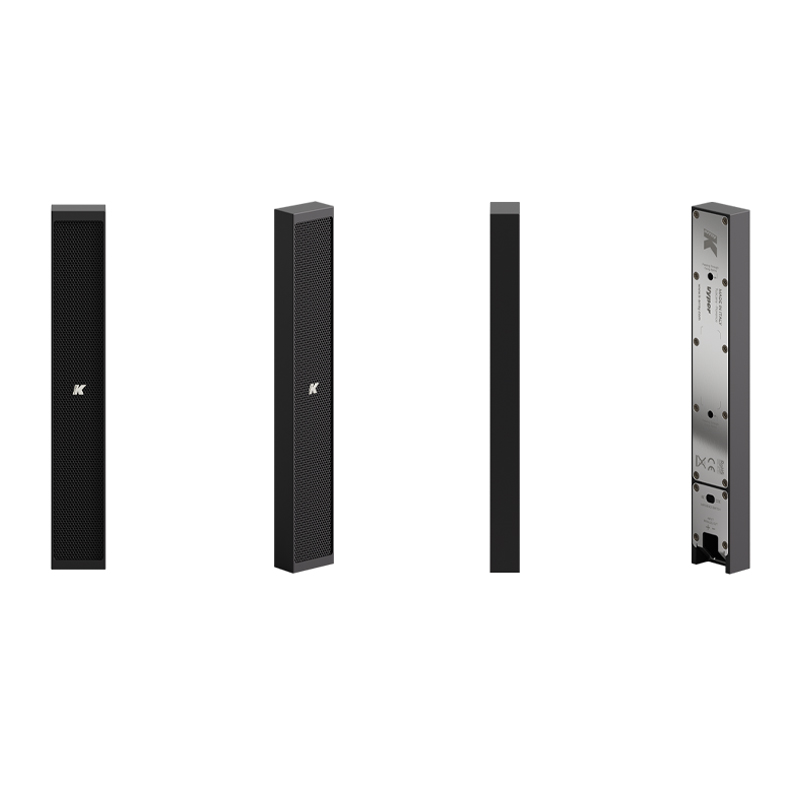

Vyper-KV25 II - Ultra-flat Passive Loudspeaker

GENERAL

• Type: Line array

• Transducers: 4 x 1″ neodymium magnet woofers

• Frequency Response: 150 Hz – 18 kHz (-6 dB) (1)

• Max SPL: 108 dB (peak) (2)

• Rated Power: 75 W

• Coverage: V. 25° | H. 140°

• Connectors: 2PIN euroblock connector (included)

• Nominal Impedance: 8 Ω / 32 Ω selectable

HANDLING AND FINISHES

• Dimensions (W x H x D): 40 x 260 x 22 mm (1.56 x 10.24 x 0.85 in)

• Weight: 0.4 kg (0.88 lb)

• Material: Aluminum

• Colors: Black, White, Custom Ral

• Finishes: 24K Gold, Polished

REGULATIONS

• IP Rating: IP65

(1) With dedicated preset
(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
