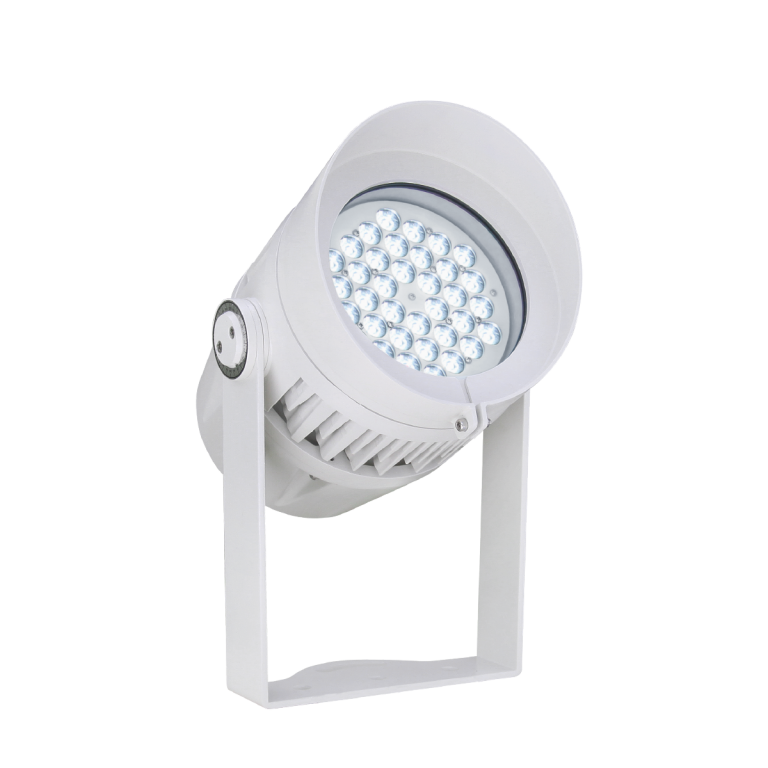

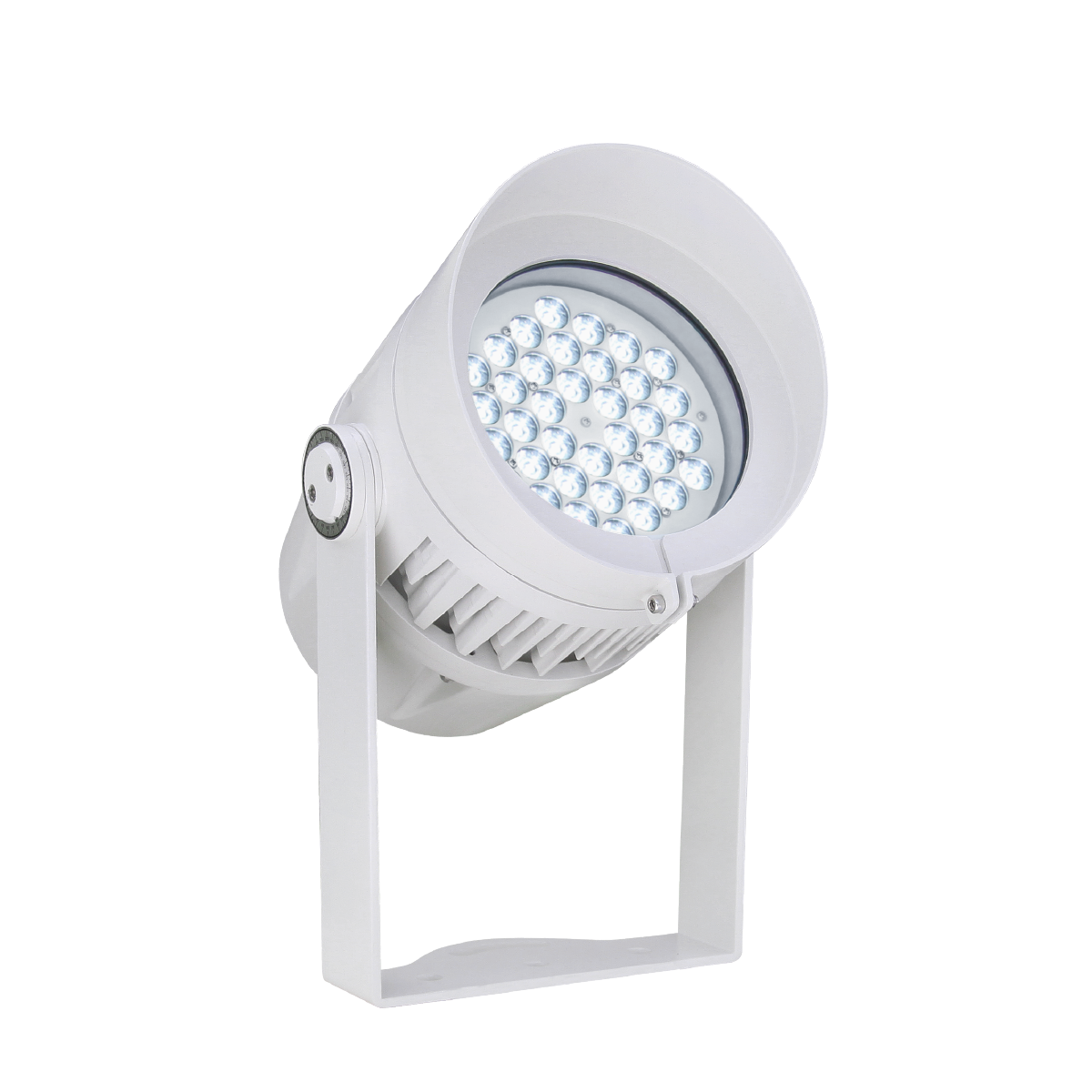

WHOPPER 236-AC

WHOPPER 236-AC is a 36×3 watts Amber Cool White LED Exterior wash. It has exquisite outline with built-in power supply and driver, independent heat dissipation system, provides a series of optical lens, and is equipped with adjustable glare shield. Controllable through the DMX 512 system and pioneering digital dimming technology this fixture is the perfect solution for all architectural applications.

Product Description

WHOPPER 236-AC is a 36×3 watts Amber Cool White LED Exterior wash. It has exquisite outline with built-in power supply and driver, independent heat dissipation system, provides a series of optical lens, and is equipped with adjustable glare shield. Controllable through the DMX 512 system and pioneering digital dimming technology this fixture is the perfect solution for all architectural applications. SOURCE
  • Light source: 36×3 Watts Amber Cool White
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 38750 cd (25°)
OPTICAL SYSTEM
  • Optics: 25° (5°, 12°, 45°)
  • Light output: 10,000 Lux @2m @ 25°
CONTROL & PROGRAMMING
  • Control Protocols: DMX 512, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: Amber Cool White
 ELECTRICAL
  • Input Voltage: AC100~277V
  • Max Power: 120 w
  • Power Factor: > 0.9
CONNECTIONS
  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input output)
PHYSICAL
  • Dimensions: 315 x 242 x 390 mm
  • Net Weight: 8.1 kg
  • Color: Off-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)

Download

Data Sheet
