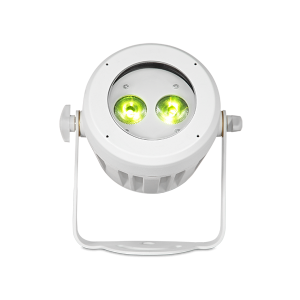

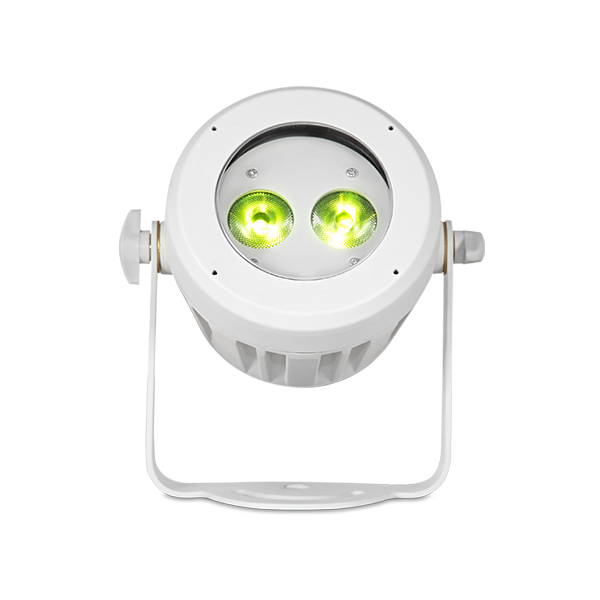

WHOPPER 402-RGBL

WHOPPER 402-RGBL is a 2×15 watts multi-chip RGBL, LED compact design Exterior wash with intelligent DMX dimming technology. Integrated power and DMX signal cable and hand-in-hand wiring layout are designed for easy reliable installation.

Product Description

WHOPPER 402-RGBL is a 2×15 watts multi-chip RGBL, LED compact design Exterior wash with intelligent DMX dimming technology. Integrated power and DMX signal cable and hand-in-hand wiring layout are designed for easy reliable installation.

SOURCE

  • Light source: 2×15 watts multi-chip RGBL
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 3925cd (20°)

OPTICAL SYSTEM

  • Optics: 22°
  • Light output: 1,000 Lux @2m @ 20°

CONTROL & PROGRAMMING

  •  Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBL

ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 40W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 170x176x164mm
  • Net Weight: 1.7 kg
  • Color: Off -White (Optional: Gray, Black)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C

Download

Data Sheet
