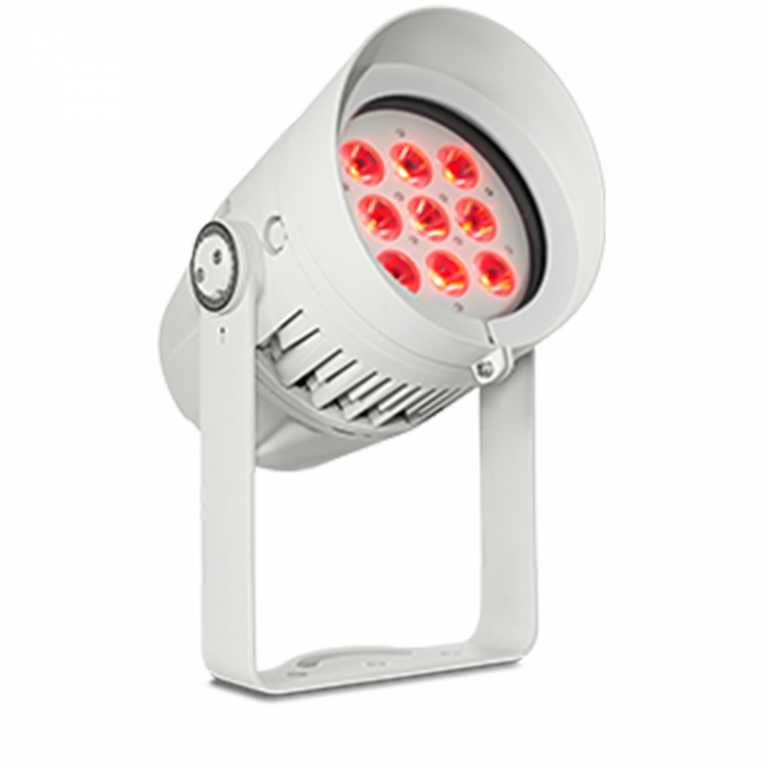

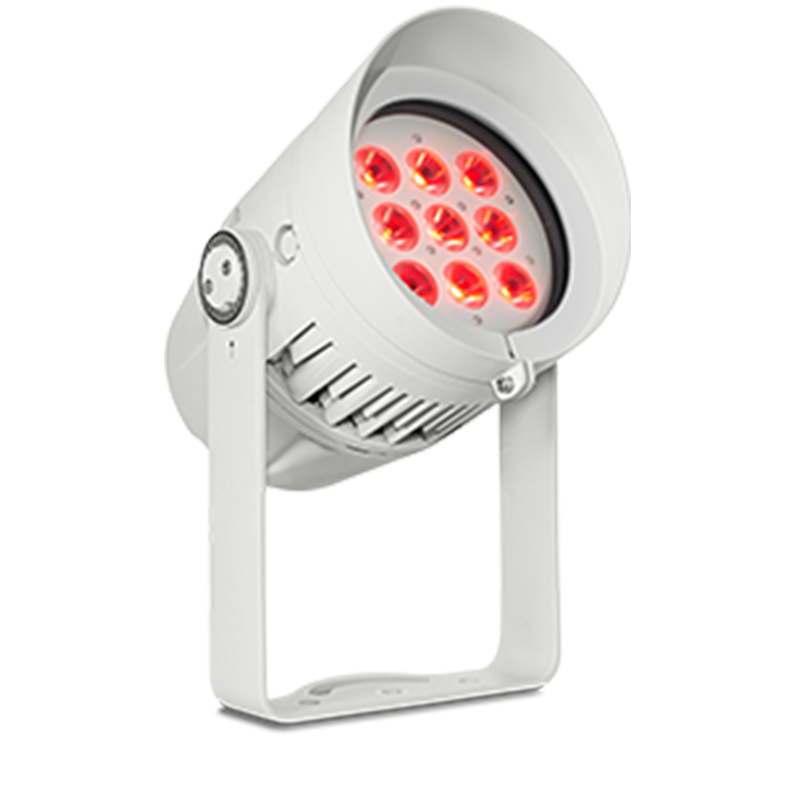

WHOPPER 409-RGBW - Multi-chip RGBW LED Exterior Wash

WHOPPER 409-RGBW is a 9×15 watts multi-chip RGBW, LED Exterior wash with smart temperature control system. It has high color saturation, smooth color mixing, creative DMX dimming technology and pioneering segment control system. Its high IP rating and strong build make it ideal for architects to present creative effects for all architectural applications.

SKU: Whopper409RGBW Categories: , , Brand: Series:

Product Description

WHOPPER 409-RGBW is a 9×15 watts multi-chip RGBW, LED Exterior wash with smart temperature control system. It has high color saturation, smooth color mixing, creative DMX dimming technology and pioneering segment control system. Its high IP rating and strong build make it ideal for architects to present creative effects for all architectural applications.

SOURCE

  • Light source: 9×15 watts multi-chip RGBW
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 16223 cd (22°)

OPTICAL SYSTEM

  • Optics: 22 °
  • Light output: 4,500 Lux  @2m @ 22°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBW

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 150 w
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 315x242x390mm
  • Net Weight: 8.1 kg
  • Color: O­ff-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)

Download

Data Sheet
