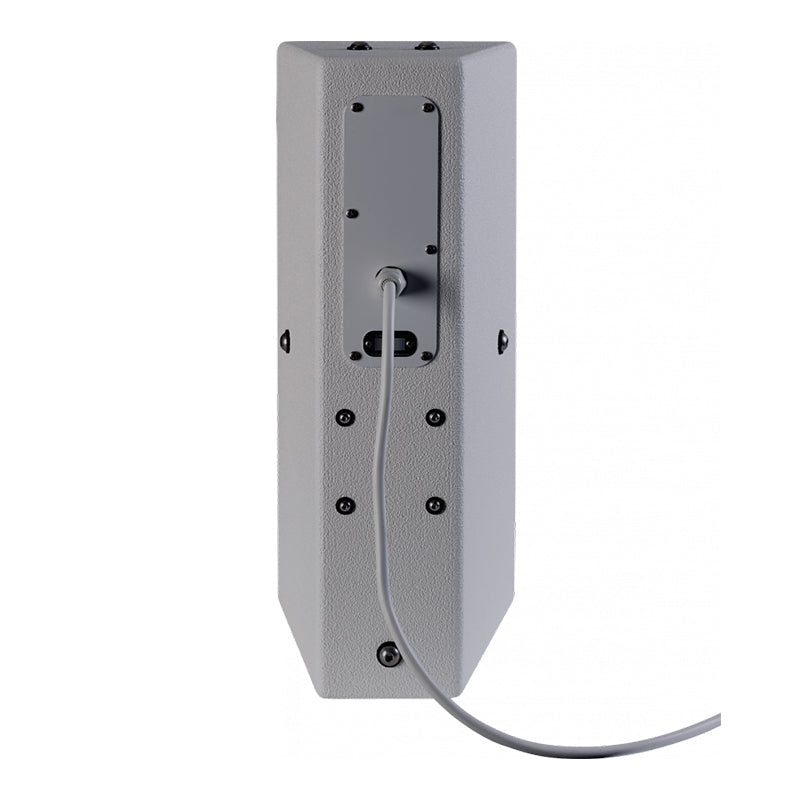

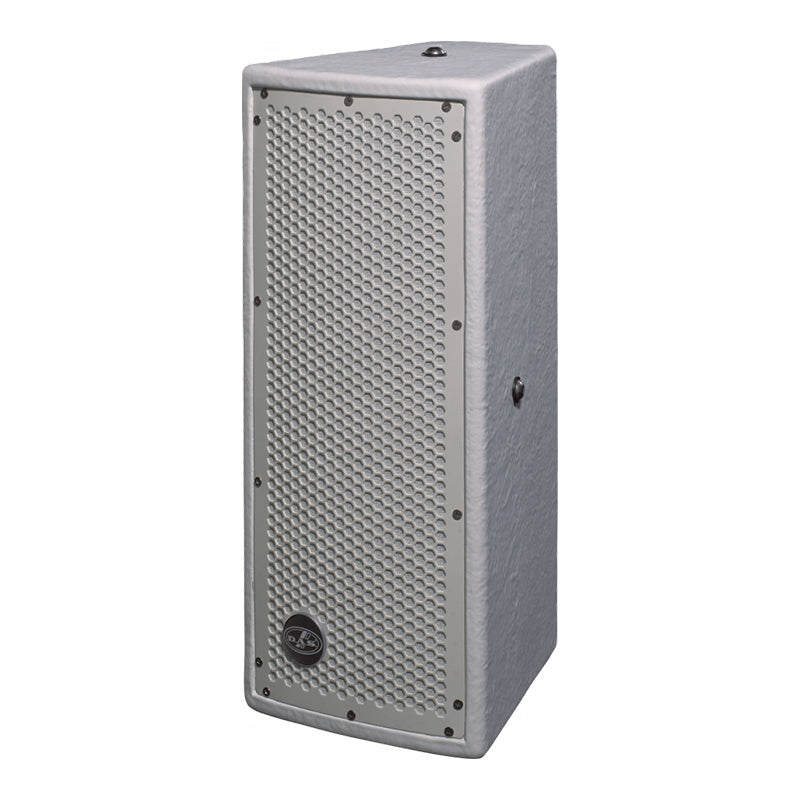

The WR-8826-DXG employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.
The WR-8826-DXG offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Features
EN54-24 certified for use in voice alarm systems
2-way system for outdoor installation
DX finish (Fiberglass) for direct exposure
IP56 ingress protection rating
Twin 6″ loudspeaker
1″annular diaphragm driver
Stainless steel threaded fixing points for wall mounts
| Performance |
| Frequency Range (-10 dB) |
70 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) |
80º |
| Vertical Coverage |
80º |
| Nominal Impedance |
8 ohms |
| RMS Power Handling |
200 W |
| Peak Power Handling |
800 W |
| On-axis Sensitivity 1W/1 m |
93 dB SPL |
| Maximum Peak SPL at 1 m |
122 dB |
| Recommended Amplifier |
DX-80-230
DX-80-115 |
| Recommended Processor |
DSP-2040 |
| Connectors |
| Audio Input Connector |
Barrier Strip |
| Audio Output Connector |
Barrier Strip |
| Enclosure |
| Enclosure Construction |
Birch Plywood |
| Enclosure Geometry |
Trapezoidal |
| Rigging |
M10 Rigging Points |
| Finish |
Fiberglass |
| Color |
Grey |
| IP Rating |
IP-56 |
| Dimensions ( H x W x D ) |
550 x 230 x 270 mm
21,7 x 9,1 x 10,6 in |
| Net Weight |
13,5 kg ( 29,8 lb ) |
| Components |
| LF Driver |
6B |
| HF Driver |
M-1 |
| Horn/Waveguide |
BC-88 |
| Shipping |
| Carton Dimensions ( H x W x D ) |
608 x 274 x 345 mm
23,9 x 10,8 x 13,6 in |
| Shipping Weight |
15,0 kg ( 33,1 lb ) |
