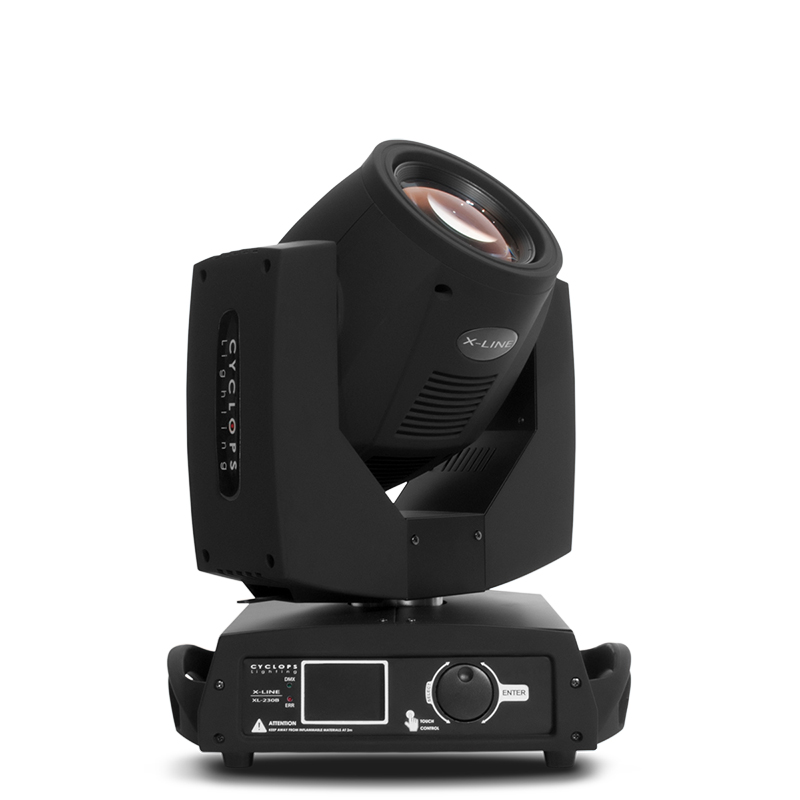

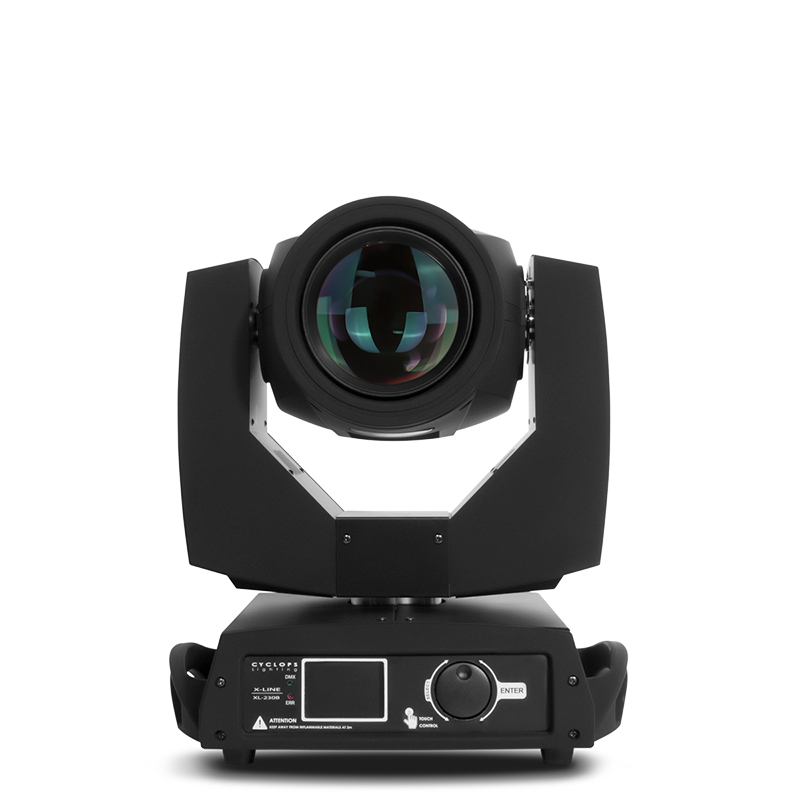

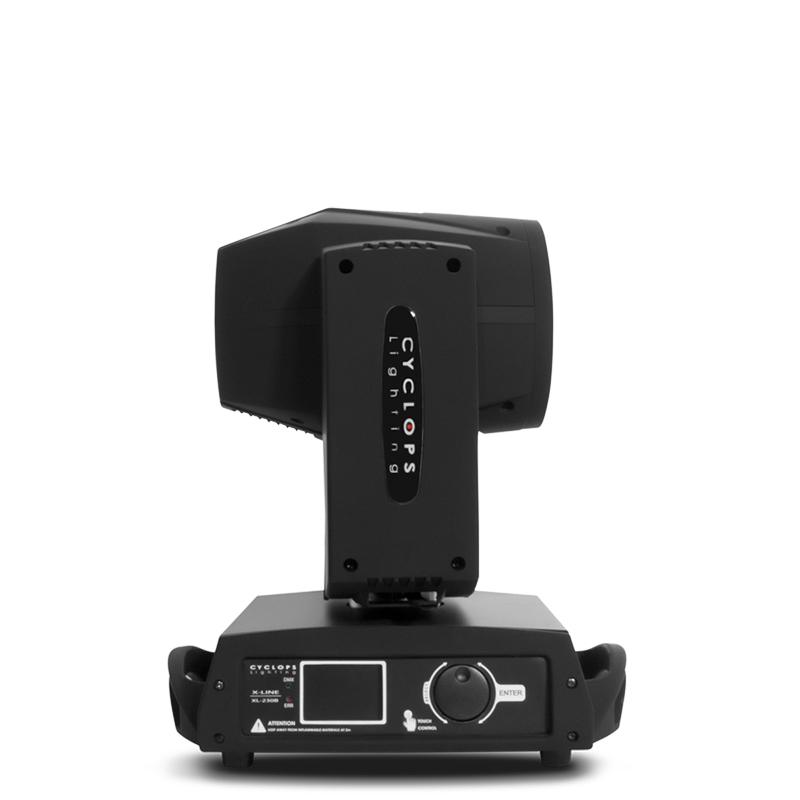

XL 230B – Powerful Beam Moving Head

XL-230B is a compact 230 watts lamp beam moving head with a narrow beam angle of 3°. With a small size and fast movement, this beam can deliver a colorful and dynamic aerial effect, ideal for clubs and stage events.

SKU: XL230B Categories: , , Brand:

Product Description

XL-230B is a compact 230 watts lamp beam moving head with a narrow beam angle of 3°. With a small size and fast movement, this beam can deliver a colorful and dynamic aerial effect, ideal for clubs and stage events. SOURCE
  • Light source: 230 watts
  • Lamp life expectancy: 2000 Hrs.
OPTICAL SYSTEM
  • Beam angle: 3°
  • Light output: 100,100 Lux @ 15m @ 3°
  • Electronic focus
DYNAMIC EFFECTS
  • Dimmer: Linear adjustment
  • Color wheel: 14 colors + open
  • Strobe: 0-10 times per second
  • Static gobos: 17 gobos + open
  • Prism: 8 facet
  • Frost
CONTROL & PROGRAMMING
  • Control protocols: DMX
  • Display: Touch LCD display
  • Control channels: 16, 20 CHs
MOVEMENT
  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit
ELECTRICAL
  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 350 watts

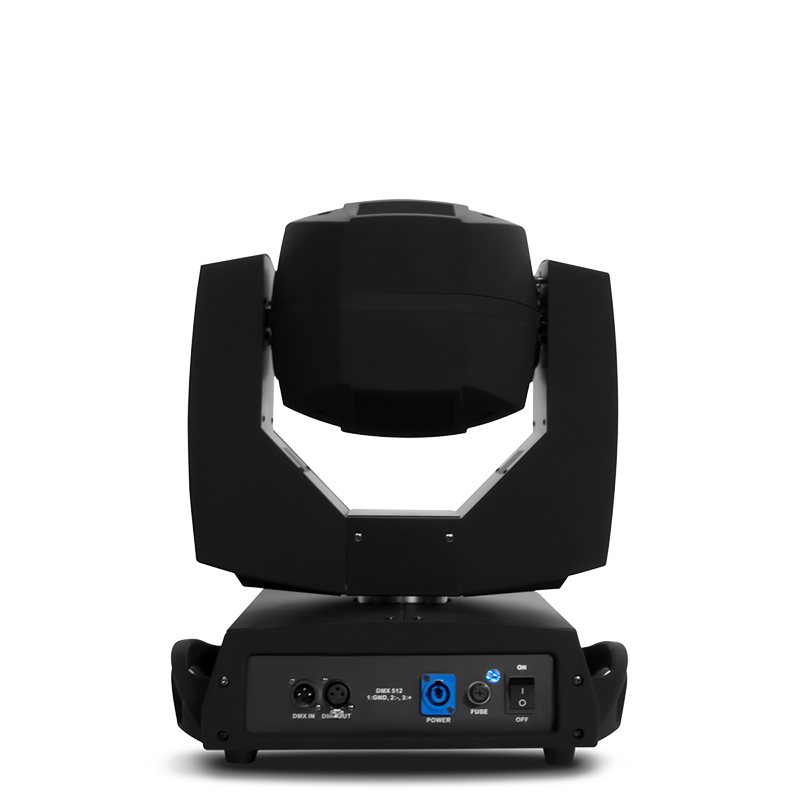

CONNECTIONS
  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon IN/OUT
PHYSICAL
  • Dimensions: 400 x 390 x 500mm
  • Net weight: 16 Kg
  • Color: Black
  • IP rating: 20
  • Operating temperature: 20°C/45°C
