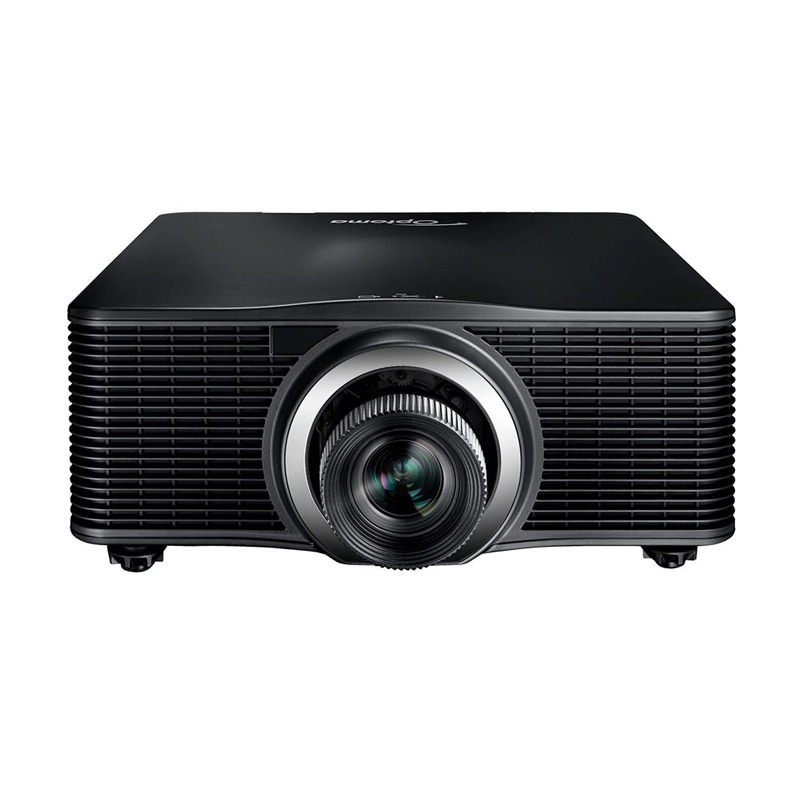

ZU1100 - Ultra Bright WUXGA DLP Laser Projector

• High brightness WUXGA DLP laser projector: 11,500 lumens
• DuraCore laser technology: Up to 30,000 hours laser light source
• Dust resistant: Independently tested, IP6X certified for total reliability
• Installation flexibility: 7 interchangeable lens options including an ultra short throw lens

Specifications:

Display/Image

• Display technology: DLP™
• Resolution: WUXGA (1920×1200)
• Brightness: 11,500 lumens
• ANSI brightness: 9,600
• Contrast ratio: 2,000,000:1
• Native aspect ratio: 16:10
• Aspect ratio – compatible: 4:3,16:9,16:10
• Keystone correction – horizontal: +/-20°
• Keystone correction – vertical: +/-20°
• Uniformity: 90%
• Screen size: Dependent on lens

Lamp Info

• Light source type: Laser
• LASER life: 30,000 hours

Optical

• Throw ratio: Dependent on lens
• Projection distance (m): Dependent on lens
• Lens options:
  BX-CTA16- 0.36 ~ 0.36
  BX-CTA17- 0.65~0.75
  BX-CTA15- 0.75 ~ 0.95
  BX-CTA01- 0.95 ~ 1.22
  BX-CTA06- 1.22 ~ 1.53
  BX-CTA03- 1.52 ~ 2.92
  BX-CTA13- 2.90 ~ 5.50
• Lens shift: Yes – see documentation for details

Connectivity

• Connections: Inputs 2 x HDMI 2.0, 1 x 3D sync, 1 x DVI-D, 1 x HDBaseT, 1 x 3G-SDI, 1 x 12V trigger
• Outputs: 1 x 3D sync, 1 x HDMI, 1 x USB-A power 2A
• Control: 1 x RS232, 1 x Wired remote, 1 x RJ45

General

• PC compatibility: HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
• 2D compatibility: PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
• 3D compatibility: Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
• 3D: Full 3D
• Security: Security bar, Kensington Lock
• IP rating: IP6X
• OSD / display languages: 11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
• 24/7 operation: Yes
• 360° operation: Yes
• Operating conditions: 5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%
• Remote control: Wired ProAV remote
• In the box: AAA Battery, AC power cable 3M, Lens cover, Quick start guide
• Optional wireless models: QuickCast Bundle, QuickCast starter kit

Networking

• LAN: Yes

Power

• Power supply: 100 – 240V, 50 – 60Hz
• Power consumption (standby): 0.5W
• Power consumption (min): 360W

Weight and dimensions

• Dimensions (W x D x H) mm: 484 x 529 x 207.8
• Net weight: 21 kg
