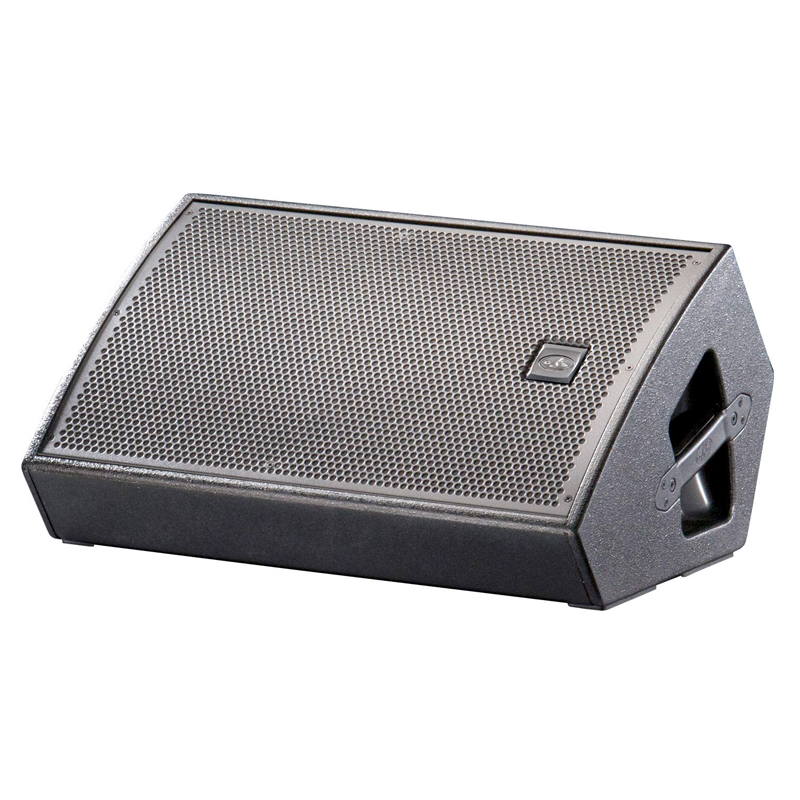

Action M12A - Powered Monitor

The Action M12A is a powered stage monitor that incorporates a 12″ D.A.S. speaker for bass reproduction.

Product Description

The Action M12A is a powered stage monitor that incorporates a 12″ D.A.S. speaker for bass reproduction. High frequencies are handled by an M-34 compression driver with 1” exit and titanium diaphragm.The “low profile” enclosure design is made from Birch plywood and finished with a durable black paint. A 35 mm pole mount socket widens the versatility of the Action M12A monitor.- 2-way powered stage monitor system – Two channel Class D amplifier with 1000 W peak power – 12” D.A.S. bass loudspeaker – Compression driver with 1” exit – Low-profile design for minimum visual impact – Two side located handles – Durable black paint finish Product features
  • Amplifier Power:1000 W, peak, 500 W continuous Class D, Biamplified
  • Frequency Range (-10 dB):60 Hz – 20 kHz
  • Rated Peak SPL at 1 m:130 dB
  • Dispersion:80º x 50º
  • Enclosure Material:Birch Plywood
  • Color/Finish:Black/ISO-flex Paint
  • Connectors INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON
  • AC Requirements:115 V, 2.4 A, 50 Hz/60 Hz 230 V, 1.2 A , 50 Hz/60 Hz
  • Dimensions (H x W x D):42 x 64.5 x 31.6 cm 16.6 x 25.4 x 12.5 in
  • Weight:19 kg (41.8 lb)

Downloads

Catalogue
