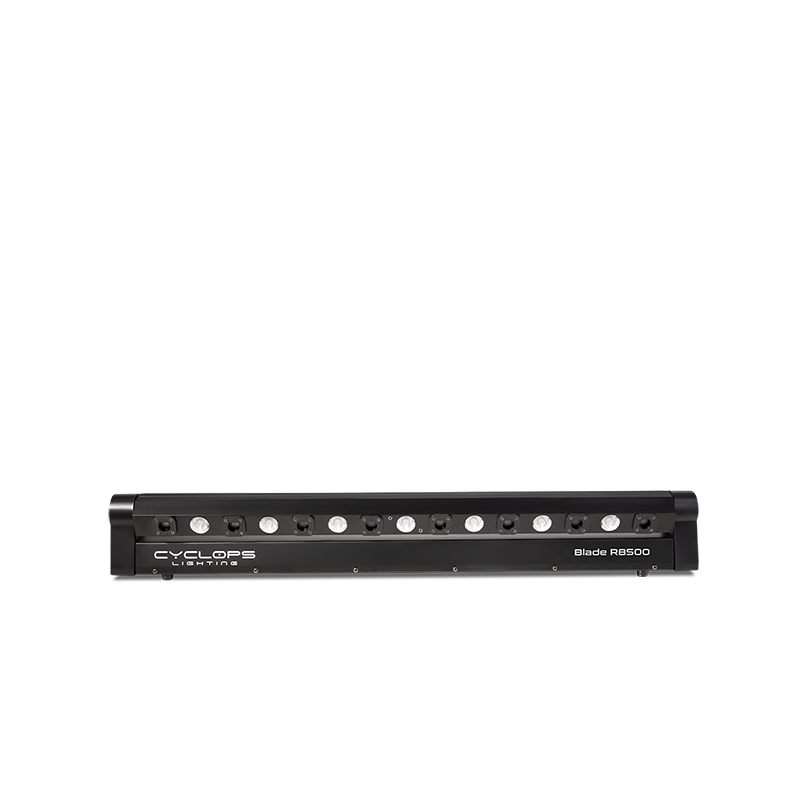

BLADE R8500 Rotating Red Laser Bar with Amber LED beams

Blade R8500 is a rotating laser bar with 8 beam laser outlets each equipped with a laser diode of 500 mW / 638 nm bright red and 7 amber LEDs of 3 watts with a beam angle of 7° for additional aerial effects. This special laser bar effect creates fans of laser beams along with a warm white beam effect controlled via DMX. It is ideal for stage, clubs, live gigs and show productions.

Product Description

Blade R8500 is a rotating laser bar with 8 beam laser outlets each equipped with a laser diode of 500 mW / 638 nm bright red and 7 amber LEDs of 3 watts with a beam angle of 7° for additional aerial effects. This special laser bar effect creates fans of laser beams along with a warm white beam effect controlled via DMX. It is ideal for stage, clubs, live gigs and show productions.

LASER

  • Source: 8 x 500 mW diodes
  • Power: 4 watts
  • Wavelength: 638nm
  • Color: Red
  • Laser safety: Class 3B
  • Life expectancy: 2,000 Hrs.
  • Modulation: TTL

SCANNER

  • Scan system: Stepper motor
  • Scan angle: 180°

LED SOURCE

  • LED power: 7 x 3 watts amber LEDs
  • Color temperature: 2200 K
  • LED beam angle: 7°
  • LED life expectancy: 50,000 Hrs.

DYNAMIC EFFECTS

  • Pixel control
  • Electronic strobe: 0-25 Hz
  • Built-in dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Auto, Sound, Master-slave
  • Display: LED display with 4 control buttons
  • DMX channels: 7, 22 CHs

MOVEMENT

  • Tilt: 180°

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Power consumption: 68 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 1000 x 84 x 173mm
  • Net weight: 6.8 Kg
  • Color: Black
  • IP rating: 20
  • Operating temperature: 10°C/40°C
