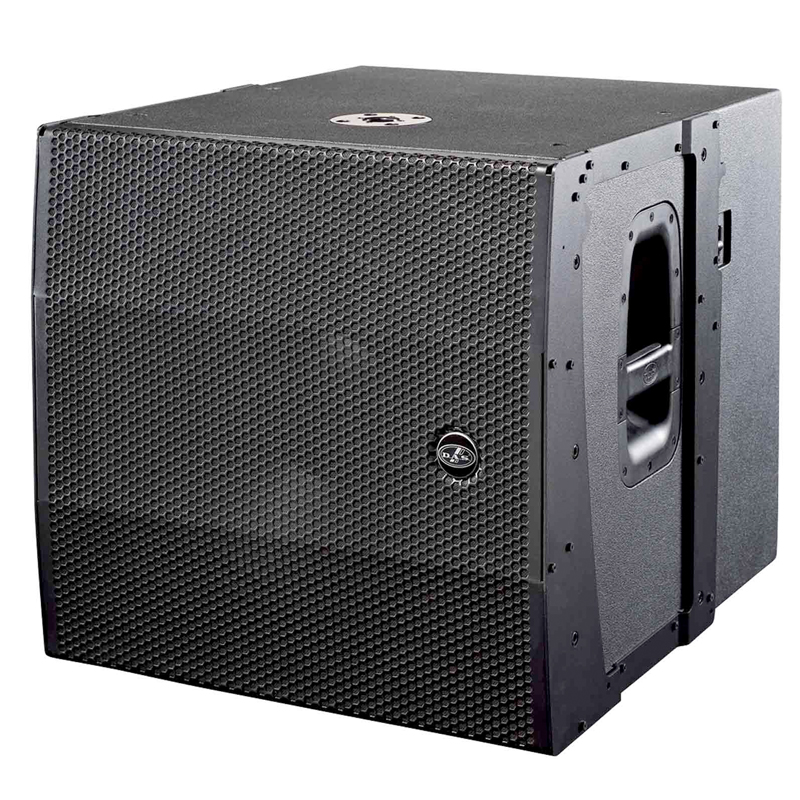

Convert 18A - Powered Subwoofer

Product Description

The Convert 18A is a powered subwoofer system designed to provide extended bass response for the Convert range cabinets. A 1000 W Class D amplifier drives a D.A.S. 18H bass loudspeaker. The 18H loudspeaker incoporates a 4″ voice coil for high power handling and output. The subwoofer system includes two balanced inputs with stereo filtered output connections for satellite systems. The variable low-pass filter ranges from 100 Hz-160 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system.

Key Features:

• Powered subwoofer system
• High output 18″ loudspeaker
• Polarity switch (0º-180º)- Filtered ouput defeat switch
• Variable 100 -160 Hz low-pass filter
• Gain control

Technical Specifications:

• Nominal LF Amplifier Power: 1000 W
• Frequency Range (-10 dB): 35 Hz-160 Hz (Variable LPF)
• Rated Peak SPL at 1 m: 134 dB
• Connectors: INPUT: 2 x Female XLR | LOOP THRU: 2 x Male XLR | AC INPUT: powerCON | AC OUTPUT: powerCON
• AC Requirements: 115 V, 50 Hz/60 Hz | 230 V, 50 Hz/60Hz
• Current Draw (1/3 power @ 230 V):1.6 A
• Enclosure Material: Birch Plywood
• Color/Finish: Black or White/Iso-Flex Paint
• Dimensions (H x W x D): 56 x 57.6 x 67 cm | 22 x 22.7 x 26.4 in
• Weight:47 kg (103.6 lb)
