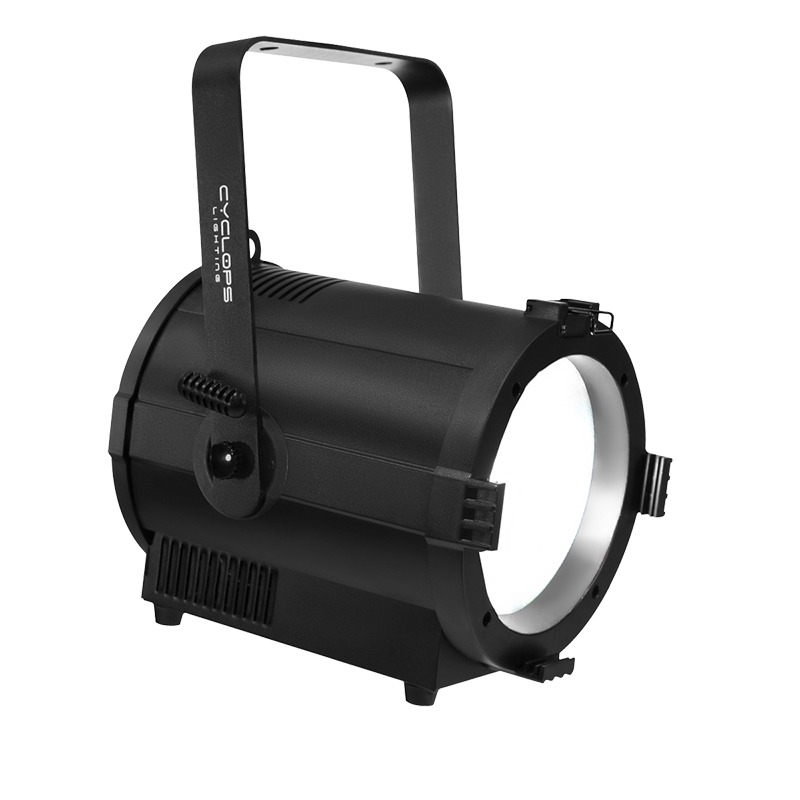

FR-300C – 300 watts – Cool White LED Fresnel


FR-300C is a 300 watts 5600 K LED fresnel. It features a motorized zoom range from 15° to 50°. It has high, light power output, high CRI of 97 &TLCI 96, various control protocols and soft wash effect. A barn door is included to shape the light.

Product Description

FR-300C is a 300 watts 5600 K LED fresnel. It features a motorized zoom range from 15° to 50°. It has high, light power output, high CRI of 97 &TLCI 96, various control protocols and soft wash effect. A barn door is included to shape the light.

SOURCE

  • Light source: 300 watts Cool white COB LED
  • 1000-1800W tungsten equivalent
  • LED life expectancy: 50,000 Hrs.
  • Color temperature: 5600 K
  • CRI: 97, R9: ≥90
  • TLCI≥ 96

OPTICAL SYSTEM

  • Zoom range: 15° to 50° motorized
  • Light Output: 8,500 Lux @ 5m @ 15°

CONTROL & PROGRAMMING

  • Control protocols: RDM, Artnet, DMX control
  • Control channels: 1, 2, 3, 4 CHs
  • 5 Dimmer curves
  • Flicker free with selectable PWM
  • Color: Cool white

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

CONNECTIONS

  • AC connection: PowerCON in
  • DMX data in/out: 3-pin XLR in & out

PHYSICAL

  • Dimensions: 428 x 295 x 451mm
  • Net weight: 11 Kg (including barn door)
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20

Download

Data Sheet
