HEX70HDUK-KIT - Multi Format HDBaseT™ CSC Extender Set

Product Description

The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.

The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

Key Features:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
• Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p up to a distance of 70m over single CAT cable
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
• Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
• Features 2 x USB-Type A devices (RX – peripherals), 2 x USB-Type A devices (TX – peripherals) and 2 x USB Type-B (TX – host source specific) that support a combined data transmission bandwidth of up to 480Mbps
• USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
• Independent USB Type-A connection to support charging only of devices up to 5V 2A
• Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
• Bi-directional IR pass-through
• Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
• Web interface module for control and configuration of HEX70HDUK-KIT
• Control via front panel, IR, RS-232 and TCP/IP
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver endAdvanced EDID ad HDCP management

*USB-C  video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device

**Analogue audio breakout supports 2ch PCM only

Specifications:

HEX70HDUK-TX

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 2 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• USB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-B
• EDID: 4-pin DIP switch
• Product Upgrade: 1 x Micro USB, female
• Local Power Input: 1 x 24V/5A 4-pin DIN connector
• Casing Dimensions (W x H x D): 183mm x 44mm x 173mm

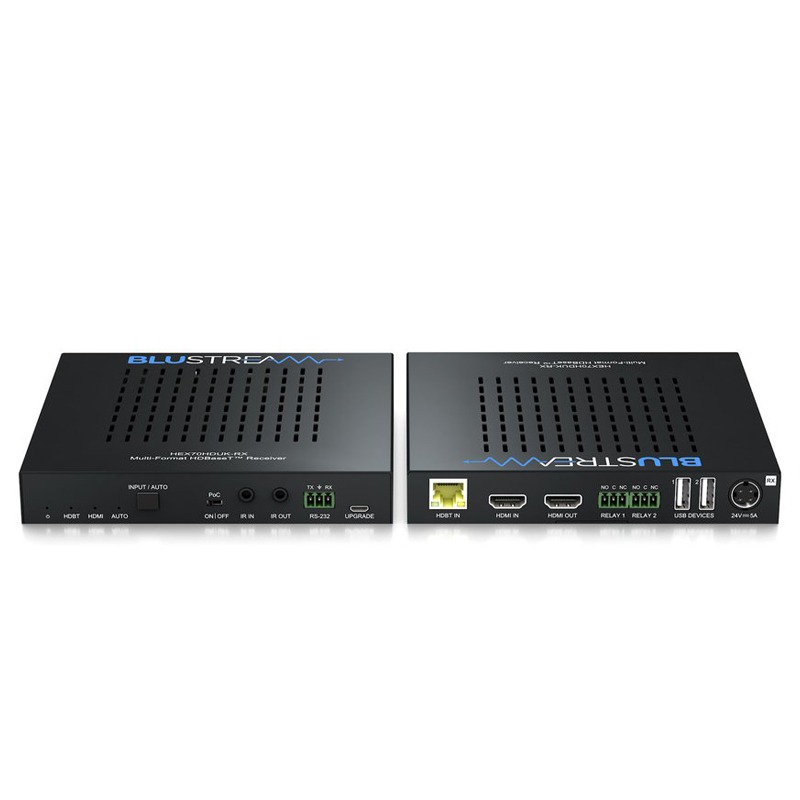

HEX70HDUK-RX

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 5-pin Phoenix connector (2ch balanced/unbalanced analogue audio),  1 x Optical (S/PDIF)
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• Relay Control: 2 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• USB Ports: 2 x USB Type-A
• EDID: 4-pin DIP switch
• Product Upgrade: 1 x Micro USB, female
• Local Power Input: 1 x 24V/5A 4-pin DIN connector
• Casing Dimensions (W x H x D): 155mm x 24mm x 155mm

• Shipping Weight: TBC
• Power Supply: 24V/5A 4-pin DIN connector
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

Box Contents:

• 1 x HEX70HDUK-TX
• 1 x HEX70HDUK-RX
• 1 x 24V/5A DC power supply
• 1 x USB-A to USB-B cable
• 1 x IRE1 emitter
• 1 x IRR receiver
• 1 x RS-232 control cable
• 2 x Mounting kit
• 1 x Quick Reference Guide
