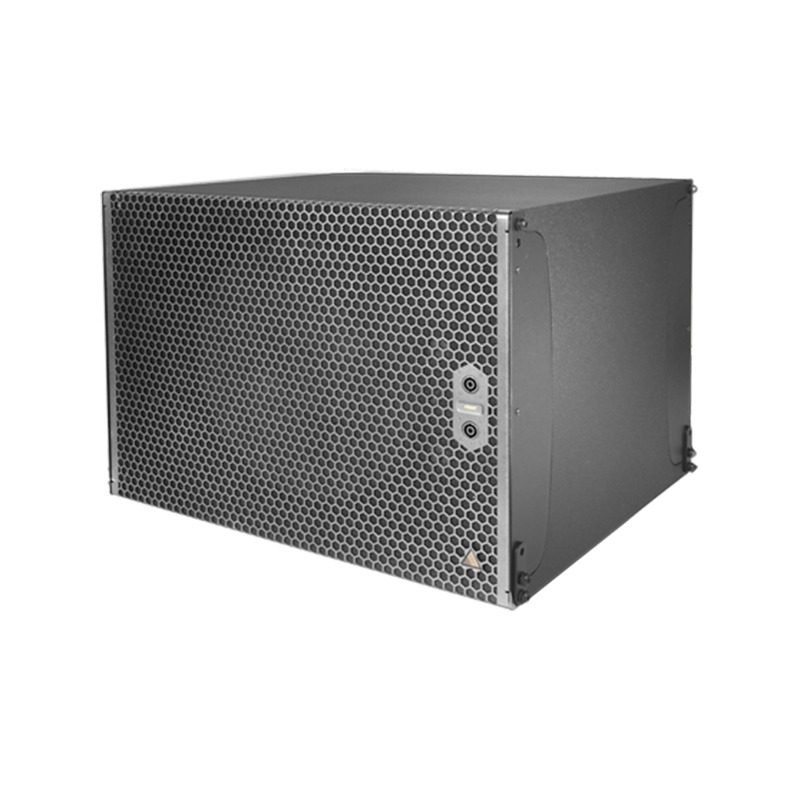

IS119 - Sub-Compact Light Weight Long Excursion 19” Subwoofer

The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two front and back Speakon™ NL4 connectors (IS119), or barrier strips (IS119b). A dual grill solution is used so that when arranged in cardioid mode, the appearance does not change. The integrated rigging system matches the rigging for the IS10 and can be flown in the same array using the IS10 & IS119 Support Frame. (930-0028)

Specifications:

• Frequency Range (+/-3 dB): 30 Hz – 100 Hz
• Maximum Peak SPL**: 138 dB
• Components LF: ND19-S 19” Kevlar Neodymium Driver
• Nominal Impedance LF: 8 Ω
• Power Handling (AES / Peak) LF: 1200 / 4800 W
• Rigging: Integrated Rigging System
• Connection: 4x Speakon™ NL4 (2x Front 2+/2-, 2x Rear 1+/1-), or Barrier Strips / IP67 Cable Gland with Weatherized
• Height Front (mm / in): 544 / 21.4
• Width (mm / in): 737 / 29
• Depth (mm / in): 645 / 25.4
• Weight (kg / lbs): 46.5 / 102.6
• Supported Processing: Lake

  **12 dB crest factor pink noise at 1m, half space, using specified processing and amplification
