Radius and Edge Expansion Cards

Product Description

4 Channel Analog Input Card

• Mic and/or line level inputs.
• 4 channels per card.
• +48v phantom power @10mA.
• Signal matching. 5 analog gain settings with +/-24dB of digital trim.
• Extended dynamic range A/D converters. >115 dB.
• Easy wiring. 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs
• Field swappable by qualified technicians.

4 Channel Analog Output Card

• Analog line outputs.
• 4 channels per card.
• High output levels for long cable runs. Up to +24 dBu.
• Digital trim. +12dB down to full off.
• Extended dynamic range D/A converters. >117 dB.
• Easy wiring. 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
• Field swappable by qualified technicians.

4 Channel Digital Input Card

• 4 channels (2 stereo pairs).
• Pro or consumer – AES/EBU or S/PDIF.
• Connect to any source – sample rate converts 12 to 192 kHz input signal to 48k internal clock.
• Level matching – +/-24dB digital trim.
• Field swappable by qualified technicians.

4 Channel Digital Output Card

• 4 channels (2 stereo pairs).
• Pro or consumer – AES/EBU or S/PDIF.
• Flexible output sample rates – defaults to 48kHz or can be externally clocked from 12 to 192kHz.
• Output trim – +12dB to full off.
• Easy wiring – 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
• Field swappable by qualified technicians.

4 Channel AEC Input Card

• Wideband dedicated processing.
• Zero-latency direct outputs and discrete reference inputs per AEC channel.
• AEC processing available to the card’s direct inputs or internally routed sources.
• 11 mS AEC latency, up to 300 mS tail length, and greater than 100 dB/S convergence time.
• Field swappable by certified technicians.

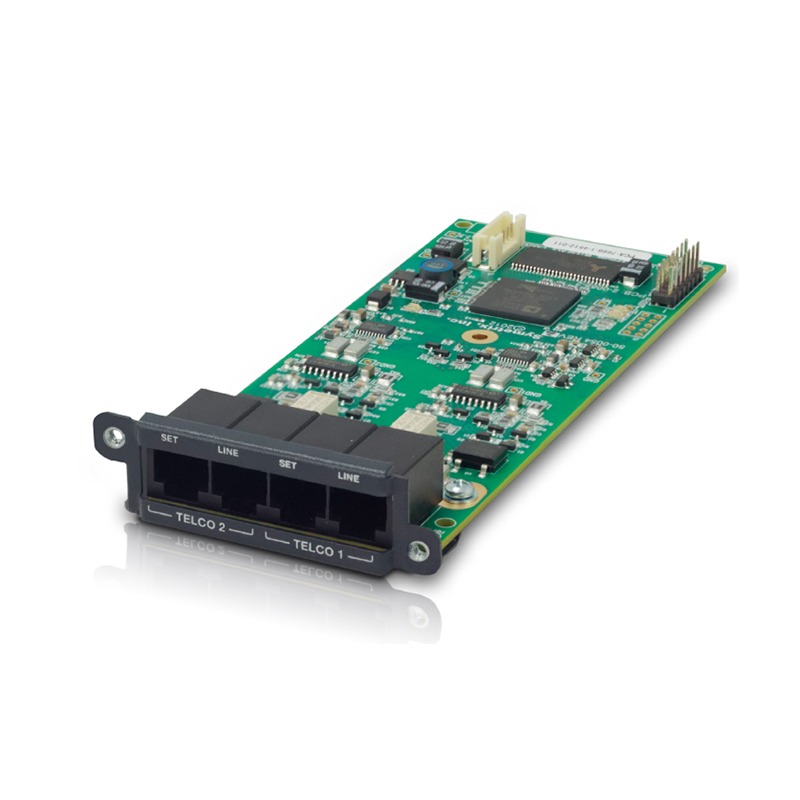

2 Line Analog Telephone Interface Card

• 2 PSTN (POTS) lines – telco connections via RJ11.
• Multiple applications – teleconferencing, paging, remote monitoring, broadcast.
• Deskset functionality – answer, dial, redial, speed-dial, ignore (DND), decode (DTMF), ID callers, detect progress, monitor line status and faults, + more.
• Compliance – EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47-CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).
• Field swappable by qualified technicians.
  Note: The 2 Line Analog Telephone Interface Card is only for use in North America at this time.

2 Line VoIP Interface Card

• Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
• A diversity of applications – well suited for conferencing, paging, remote monitoring, and broadcast.
• Best-in-class deployment and administration – easy to deploy and manage. The intuitive configuration software is accessible from both the AV and VoIP LANs giving AV integrators and IT/VoIP administrators easy access for configuration and maintenance.
• Market-leading open standards interoperability – Designed for enhanced interoperability while leveraging and complementing existing IT investments, the card delivers high-definition voice quality and a superior unified communications experience.
• Multiple Control Options – SymVue application builder and extensive third-party control support allow for intuitive end-user operation while reducing the amount of time needed to develop application-specific user interfaces. An expanded series of Crestron certified control modules, including a VoIP Dialer Module, can be found in the Crestron Application Market.

USB Audio Card

• Adds up to 16 channels of USB audio I/O to a Radius DSP, or up to 64 channels to an Edge DSP, bridging computer-based soft codecs or recording and playback software to the expansive Dante™ network audio ecosystem.
• Multiple distinct modes of operation including two speakerphone modes for conferencing, along with a 2×2 and 8×8 line I/O mode for multitrack recording and playback.
• Speakerphone and 2×2 line modes are class 1 USB (driverless) for quick and problem-free plug-and-play connectivity and provide the ability to utilize a soft codec’s AEC or disable it in favor of Symetrix’ award-winning AEC.
• 8×8 line I/O mode utilizes Class 2 USB. Windows drivers are included.
• A high-retention Type B USB connection provides a robust and standard direct connection between the DSP and computer.
