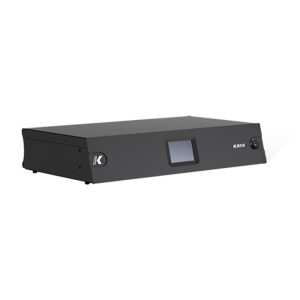

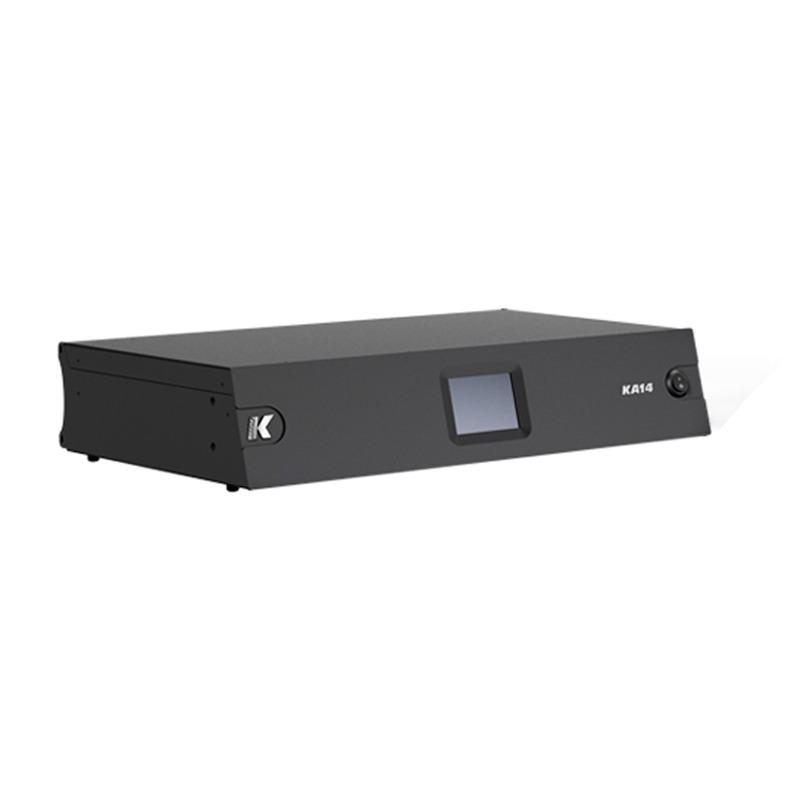

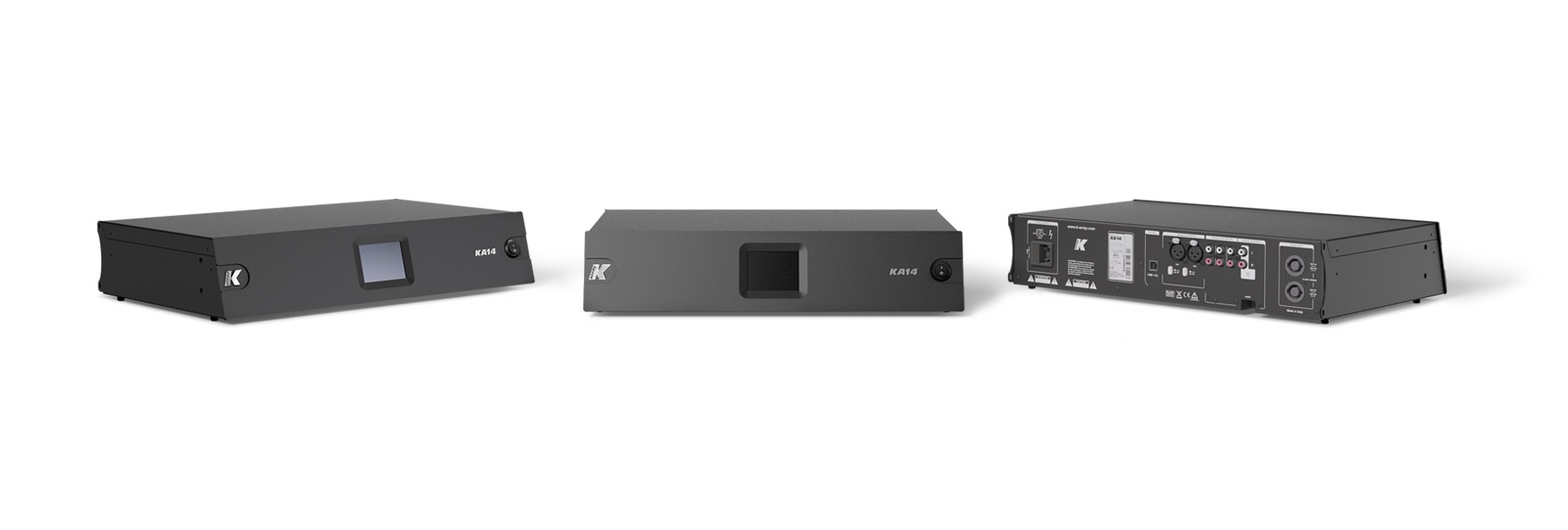

Kommander-KA14 - 1000W, 2U Rack Amplifier and Processing Solution

Name: Kommander-KA14 - 1000W, 2U Rack Amplifier and Processing Solution
SKU: KA14

The Kommander-KA14 is a versatile amplifier, easily adaptable for small applications that do not require a lot of power, featuring four configurable output channels capable of delivering 250 W at 4 Ω.

Add to Quote

SKU: KA14 Categories: Audio, K-Array, K-Array Amplifiers Brand: K-arraySeries: Kommander Series

Product Description

GENERAL

Type: 4ch switching mode, Class D Amplifier
Output Power: 4x 250 W @ 4 Ω
Impedance: minimum 4 Ω
Frequency Response: 20 Hz – 20 kHz (±1 dB)
Connections:
– 2x XLR (bal) Mic/Line input
– 3x stereo pairs RCA (unbal) line inputs
– 1x stereo pair RCA (unbal) line output
– 2x speakOn loudspeaker output3x stereo pairs RCA (unbal) line inputs
– 1x stereo pair RCA (unbal) line output
– 2x NL4 speakOn loudspeaker output
Built-in DSP: Input gain, delay up to 12 ms, 4x input ch. full parametric IIR filters (Peaking, Shelving, Hi/Lo pass, Hi/Lo Butterworth), Onboard preset, Remote monitoring
Remote control: K-Framework software via USB or RS485
Protections: Thermal protection, High Frequency, DC, Saturation Protection, Overcurrent, Primary AC Undercurrent
MAINS Operating Range: 100-240V AC, 50-60 Hz with PFC
Power Consumption: 400 W @ 4 Ω load, Pink noise, 1/8 rated power
