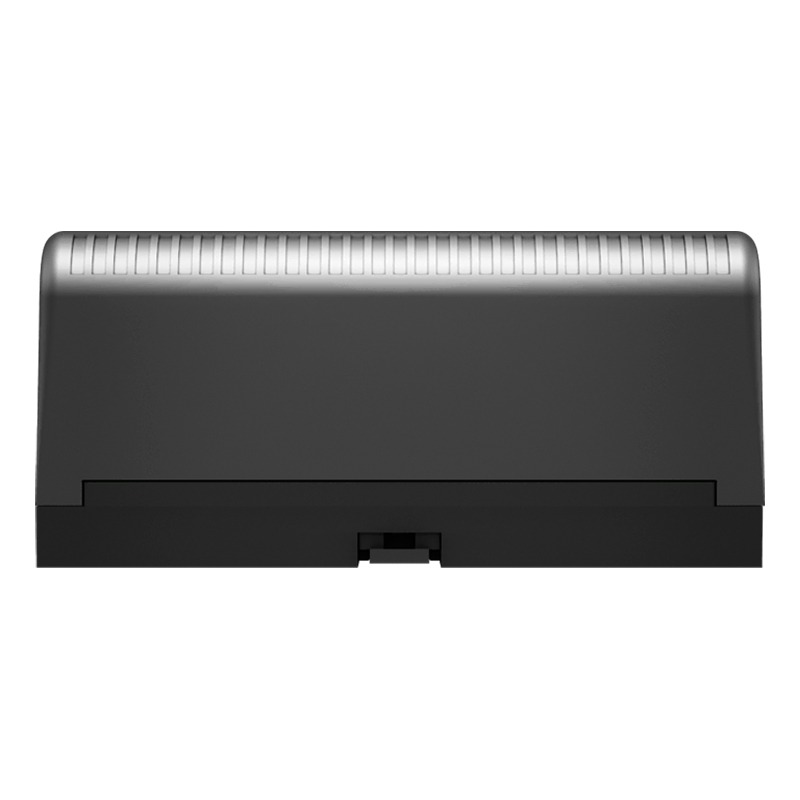

MADRIX AURA – Standalone Lighting Controller

MADRIX AURA is the advanced lighting control recorder and stand-alone playback unit.
Developed and made in Germany.

Product Description

The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping. It redefines what is possible in a compact control unit with exceptional performance.

Stand-Alone Playback
Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 8 or 32 universes per device.

Live Recording
Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.

Central Hub
Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.

Time-Controlled Shows
Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.

Master-Slave Synchronization & Scalability
Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.

Web Configuration
Use the built-in web configuration page to access and change specific device settings, such as the important IP address, subnet mask, playlist settings, and much more.

Live Control
Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and brightness.

Remote Control
Trigger MADRIX AURA via HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.

Specifications

  • Supply Of Power: DC 5 V – 24 V; connection via 2-pin, pluggable screw terminal or via 5 V USB
  • Power Consumption: 1.5 W (300 mA) during normal operation (500 mA max. fused)
  • Network Protocols: Art-Net, Streaming ACN
  • Output: 8x / 32x 512 DMX channels output over Ethernet network
  • Recording Input: 8x / 32x 512 DMX channels input over Ethernet network
  • Remote Control Input: 1x 512 DMX channels received over Ethernet network
  • Ethernet: 2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s
  • SD Card Slot: Supports SD, SDHC, and SDXC cards
  • USB Port: USB 2.0, type B plug
  • Handling: 8 control buttons, 5 status LEDs (+ 4 network status LEDs)
  • Dimensions (L x W x H): 86 mm x 105 mm x 49 mm
  • Weight: 148 g | 154 g incl. screw terminal, SD card, and wall mounts
  • Operating Temperature: -10 °C to 70 °C
  • Storage Temperature: -20 °C to 85 °C
  • Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)
  • Case: Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
  • IP Rating: IP20
  • Certificates: CE, FCC, RoHS
