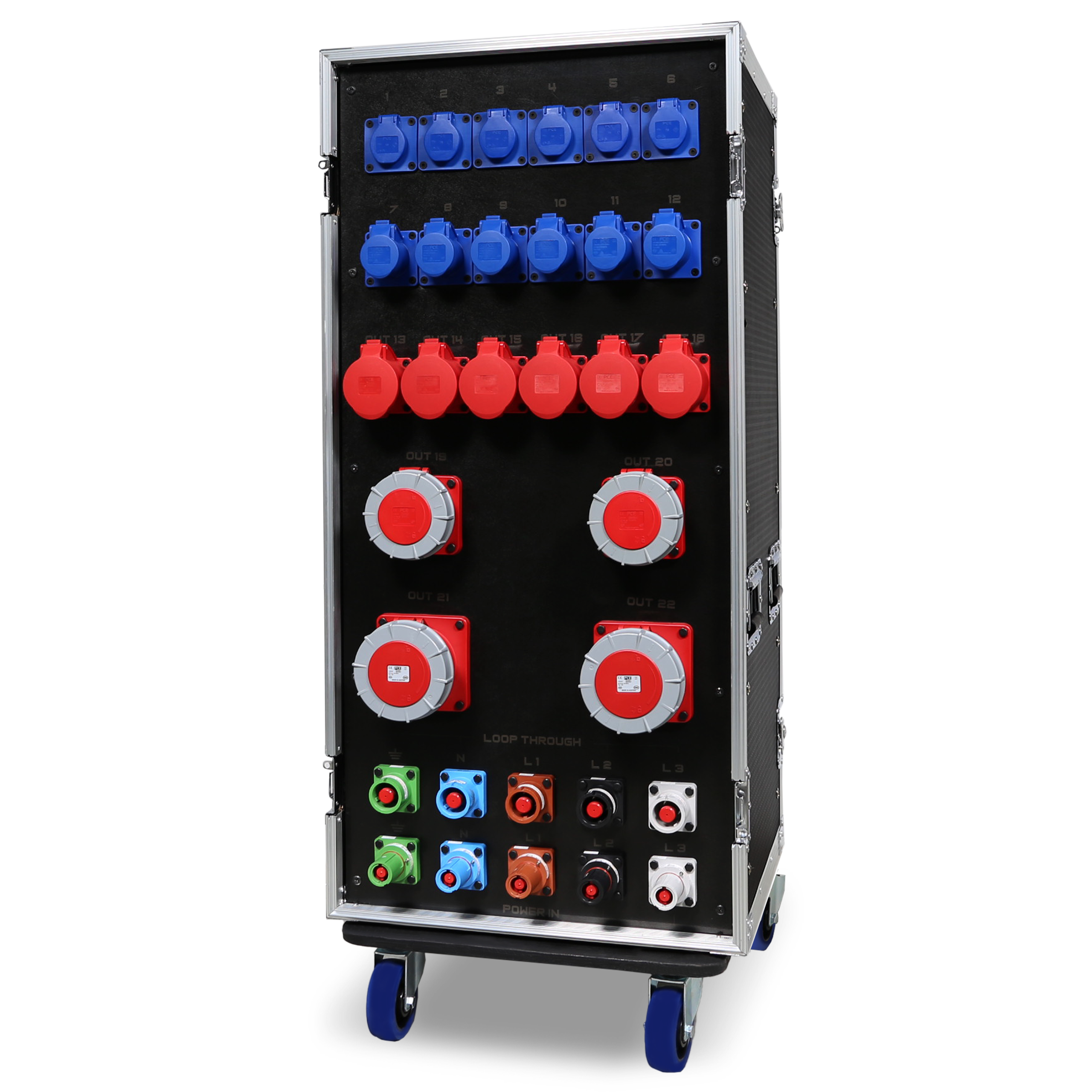

MD400-365RCBO - 400A Main Distribution Box - RCBO Protection

Main Distribution Box with 1 x 400A Power Lock 400V 5P Input, and 6 x 16A SCHUKO 250V 3P , 6 x 16A CEE 240V 3P,  6 x 32A CEE 400V 5P, 2 x 63A CEE 400V 5P,  2 x 125A CEE 400V 5P and 1 x Power Lock Set 500A Through Output outputs.

SKU: MD400-365RCBO Categories: , , Brand:

Product Description

INPUT
Plugs Breakers

1 x Power Lock Set 500A Single Pole 3 Phase

1 x 400A Main MCCB 4P

OUTPUT
Sockets Breakers

6 x 16A CEE 240V 3 Pin Flanged Socket

6 x 10A RCBO

6 x 16A CEE 240V 3 Pin Flanged Socket

6 x 16A RCBO

6 x PCE 32A CEE 400V 5 Pin Socket

6 x 40A RCD 4P
6 x 32A MCB 4P

2 x 63A CEE 400V 5 Pin Flanged Socket

2 x 63A RCD 4P
2 x 63A MCB 4P

2 x 125A CEE 400V 5 Pin Flanged Socket

2 x 125A MCB 4P

1 x Power Lock Set 500A Single Pole 3 Phase

No Breakers

CASE

24U Flight Case
Integrated Handles and Wheels

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCBO

Additional Information: Made of Premium Components



Additional information

Weight 135.0 kg
Dimensions 80.0 × 60.0 × 130.0 cm

Download

Data Sheet
