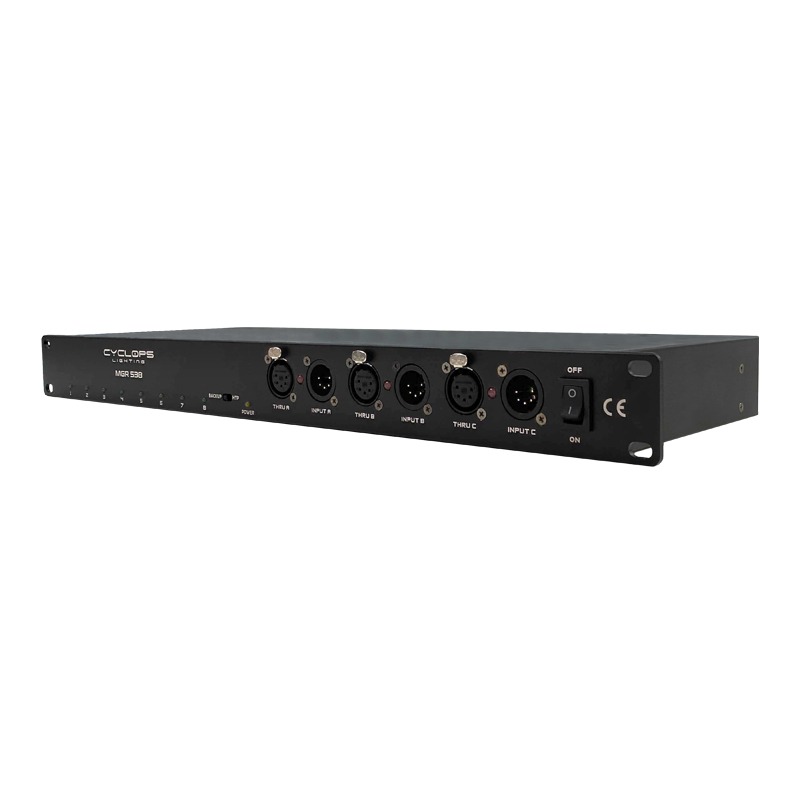

MGR 538 - 5 Pin Rack mounted DMX Merger

Product Description

FEATURES

• Merges up to 3 DMX sources
• Power and data optically isolated DMXports
• High voltage protection
• Two operation modes: HTP and BACKUP
• High brightness Power and Data Status LED indicators
• Front panel Power on/off switch

CONTROL & PROGRAMMING

• DMX Pass-Thru
• HTP and BACKUP Mode Selector
• Power on/off switch
• Power and Data LED indicators

CONNECTIONS

• Data inputs: 3 x Neutrik 5 pin XLR
• Data thru: 3 x Neutrik 5 pin XLR
• Data outputs: 8 x Neutrik 5 pin XLR
• Power connection: powerCon input and output

ELECTRICAL

• Input Voltage: AC 88-256V 50/60 Hz

PHYSICAL

• Dimensions: 482 x 173 x 46 mm
• Net Weight: 1.75 Kg
• Color: Black
