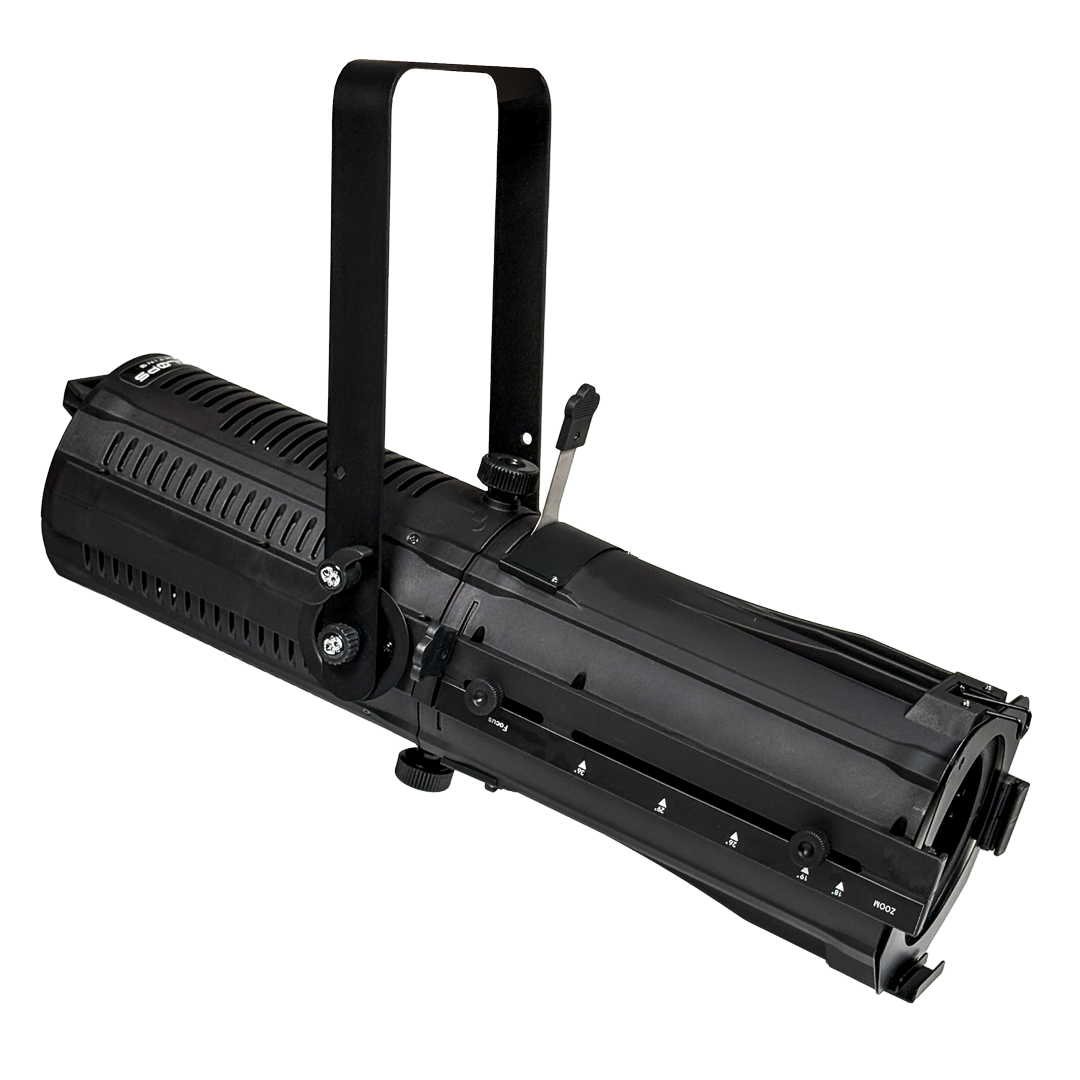

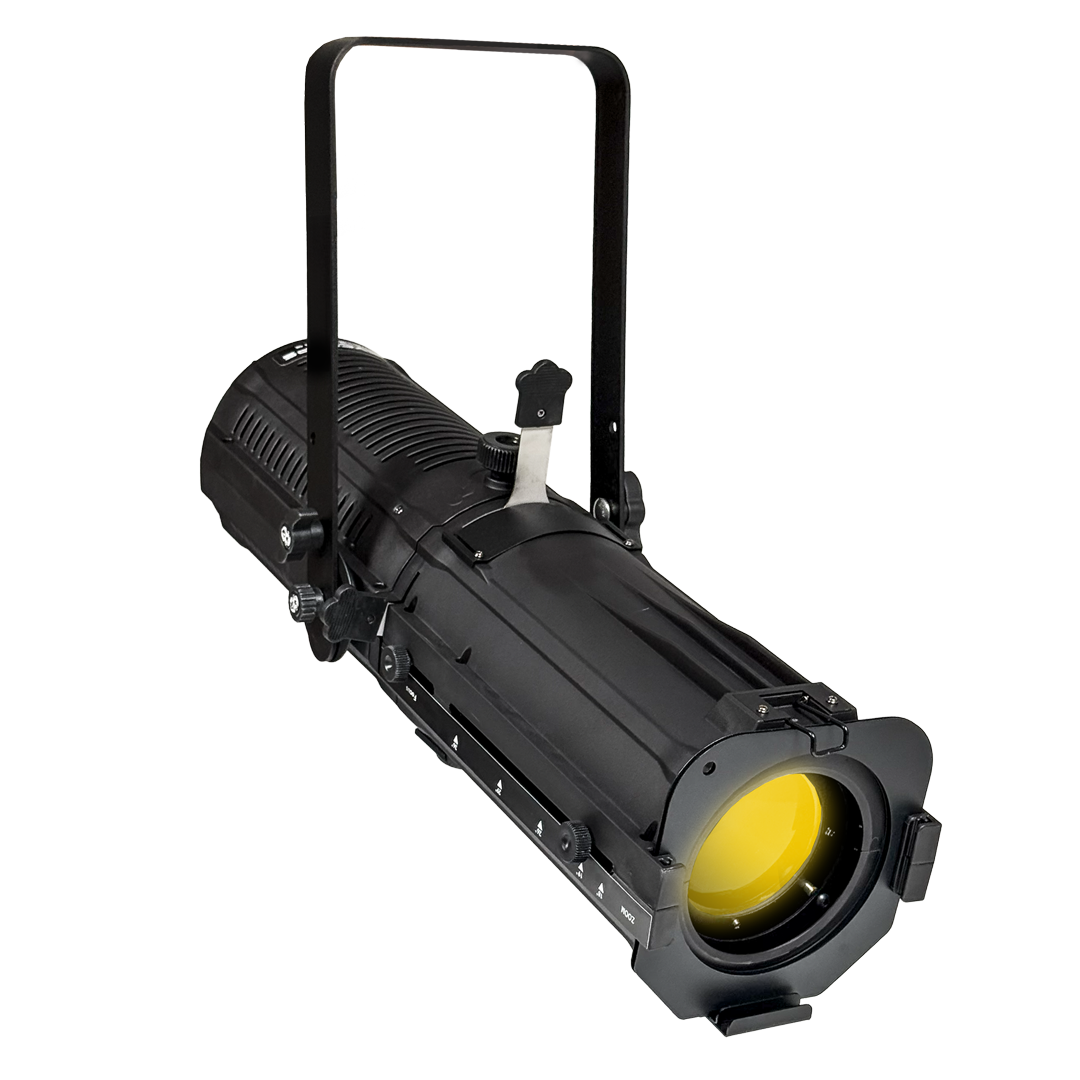

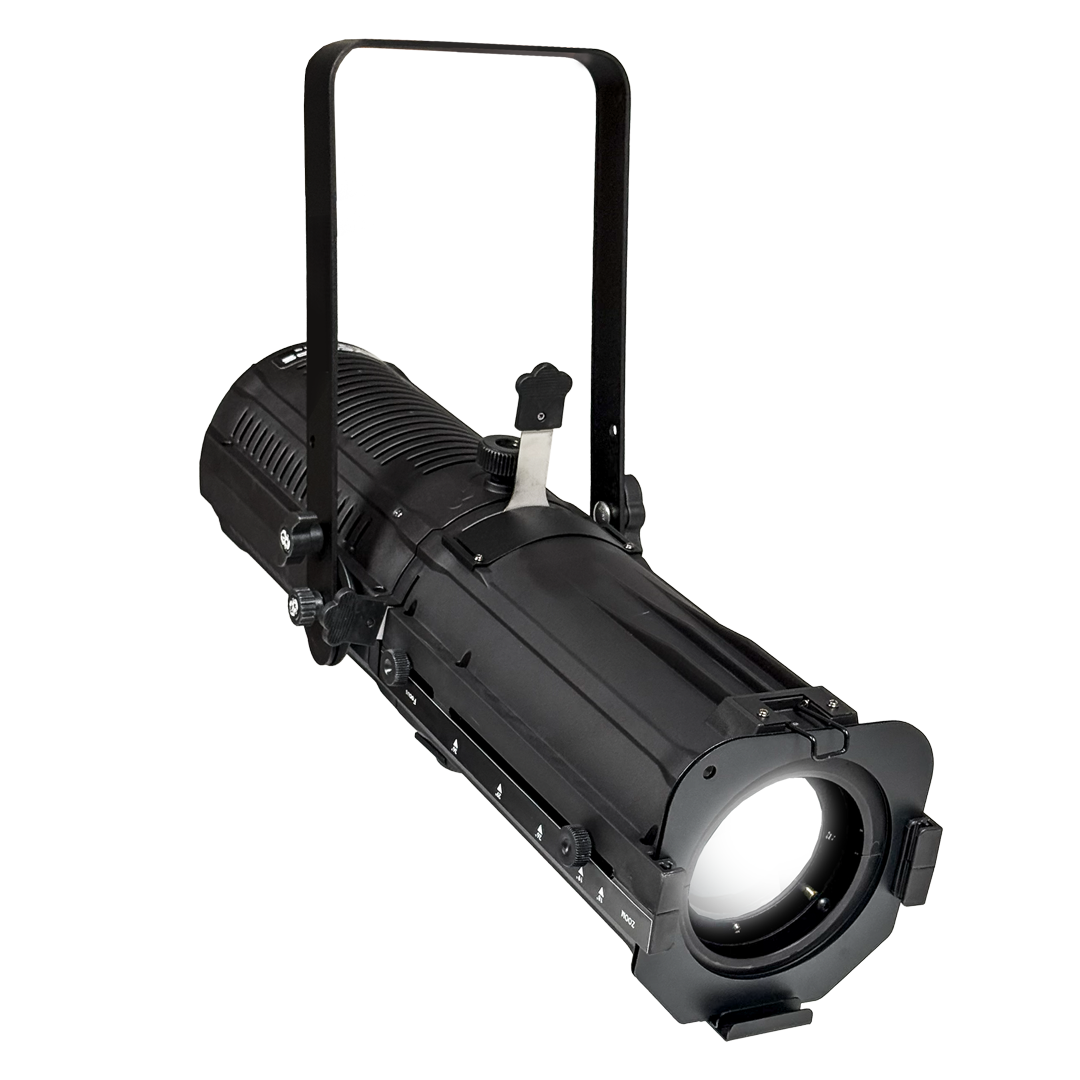

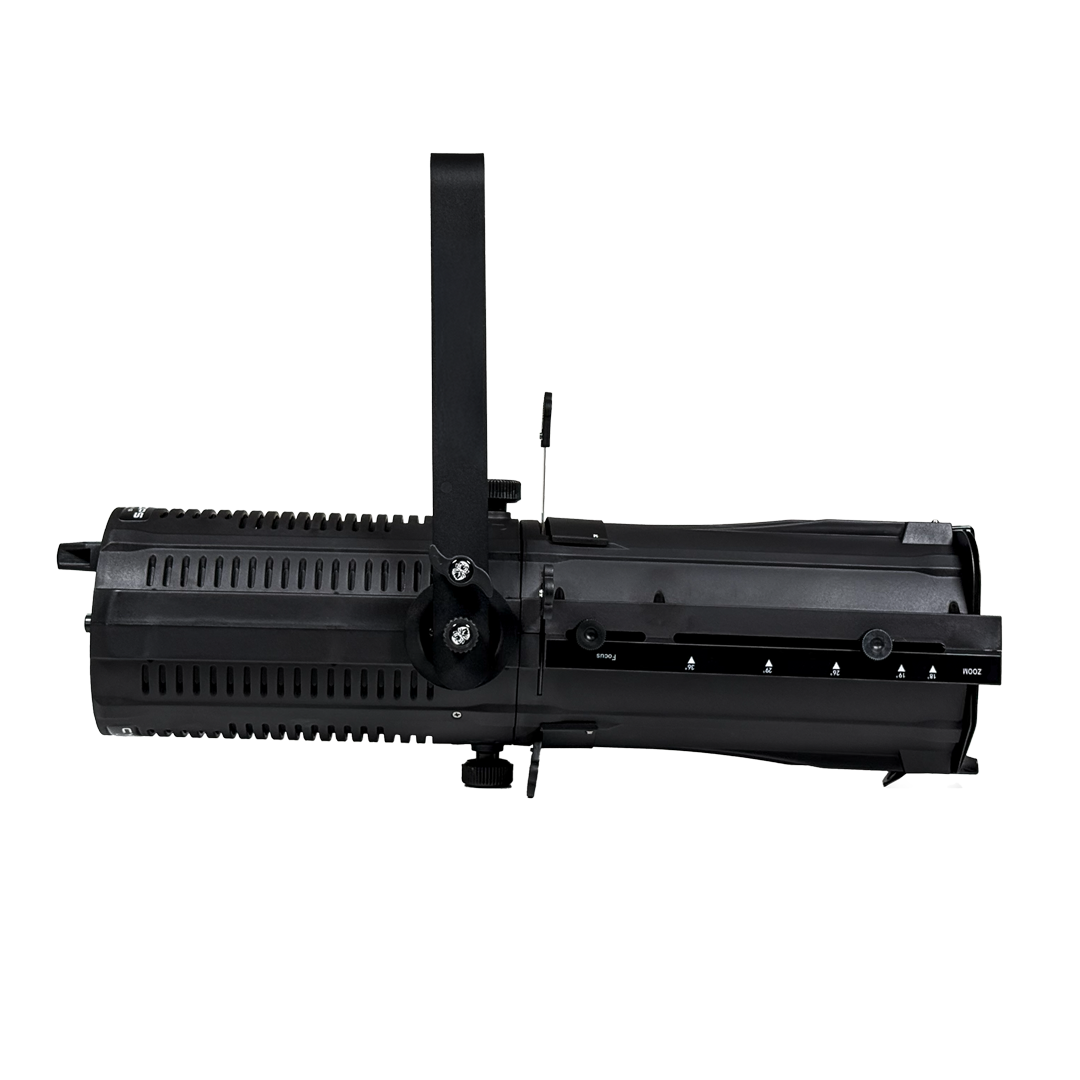

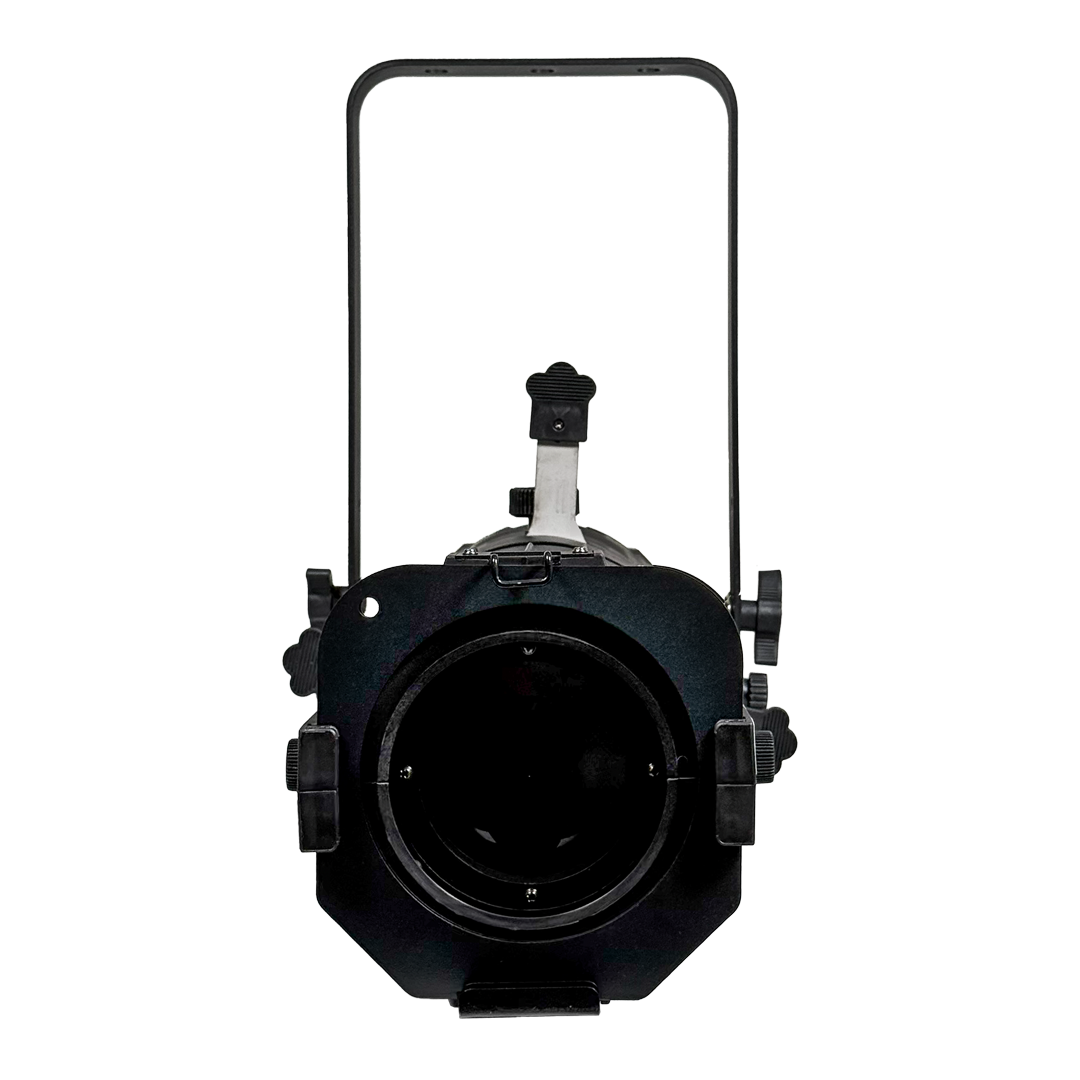

PR 300 - 300 watts Warm White LED Profile

Product Description

SOURCE

• Light Source:
• PR 300C: 300W Cool White COB LED
• PR 300W: 300W Warm White COB LED
• PR 300T: 600W COB LED (300W WW + 300W CW)
• Total Output (Light Output @ 2m @ 18°):
• PR 300C / PR 300W: 29,000 Lux
• PR 300T: 14,000 Lux
• LED Life Expectancy: 50,000 Hours
• Color Temperature:
• PR 300C: 5600K
• PR 300W: 3200K
• PR 300T: 2800K – 6500K (Tunable)
• CRI / TLCI:
• PR 300C / PR 300W: CRI 97, R9 ≥ 90, TLCI 98
• PR 300T: CRI 96, R9 ≥ 90, TLCI 98

OPTICAL SYSTEM

• Zoom: Manual Zoom
• Zoom Range: 18° to 38°
• Optional Lens: Fresnel lens adapter 25°–50° (PMMA)
• Accessories: Optional Iris and Gobo Holder (Gobo Size: OD=58mm / ID=50mm)

DYNAMIC EFFECTS

• Dimmer: 16-bit dimmer
• Strobe: Electronic strobe effect
• PWM: Video flicker-free with selectable PWM

CONTROL & PROGRAMMING

• Display: LCD display with four buttons
• Control Channels:
• PR 300C / PR 300W: 1, 2, or 3 CHs
• PR 300T: 2, 4, or 5 CHs
• Control Protocols: Rotary, DMX 512, RDM (PR 300C and PR 300W also offer Art-Net support)
• Dimming Curves: 5 selectable dimming curves

THERMAL MANAGEMENT

• Operating Temperature: -5°C to 45°C
• Temperature Control: Intelligent temperature control for silent operation

CONNECTIONS

• Power Connections: PowerCon In/Out
• DMX Connections: 3-pin and 5-pin XLR In/Out (male and female)

ELECTRICAL

• Input Voltage: AC 100–240V / 50–60HzPower Consumption: 300W

PHYSICAL

• Dimensions: 745 x 294 x 294 mm
• Net Weight: 8.7 Kg (including lens)
• Housing: PR 300C / PR 300W: Metal/Plastic
• PR 300T: Plastic
• Housing Color: Black
• IP Rating: IP20
