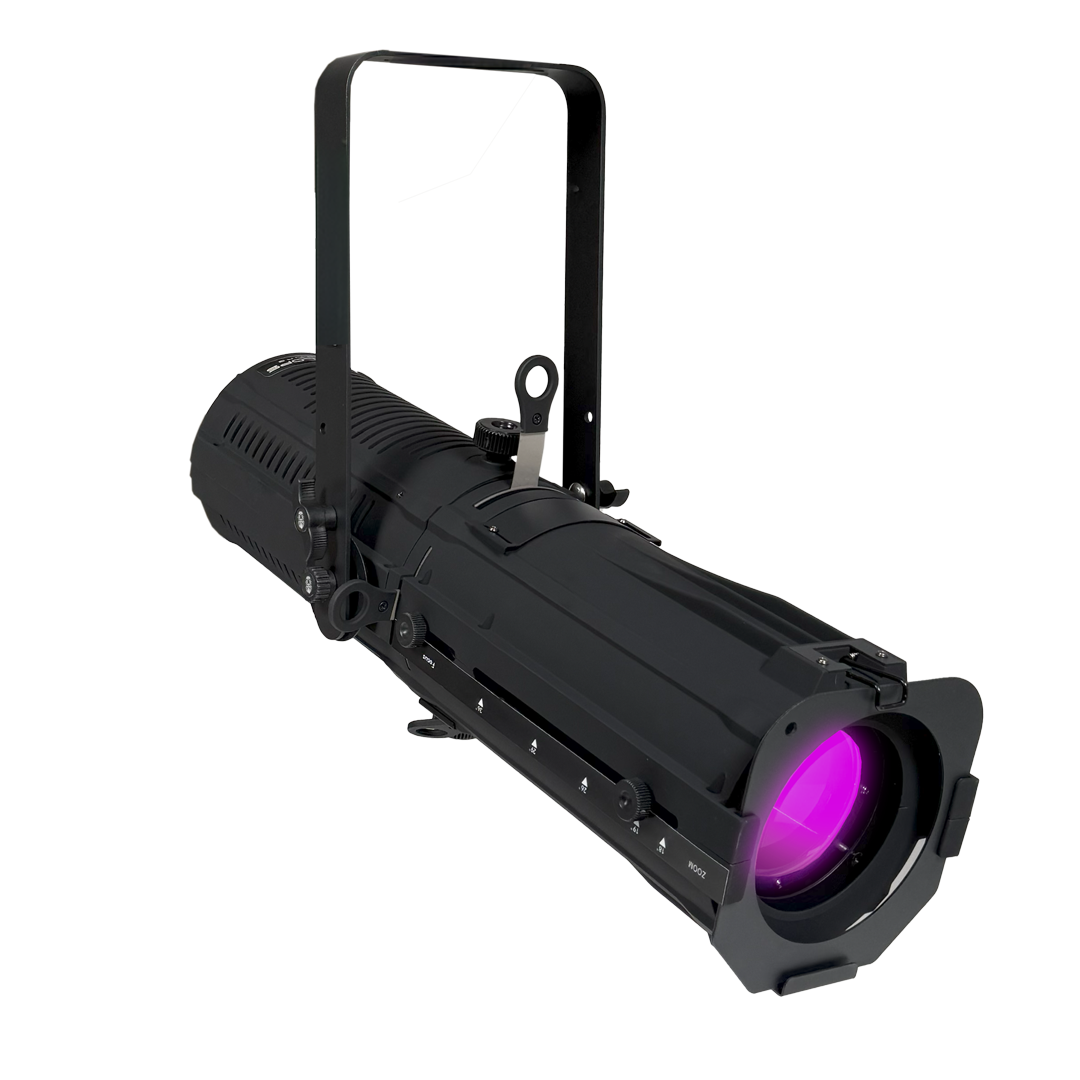

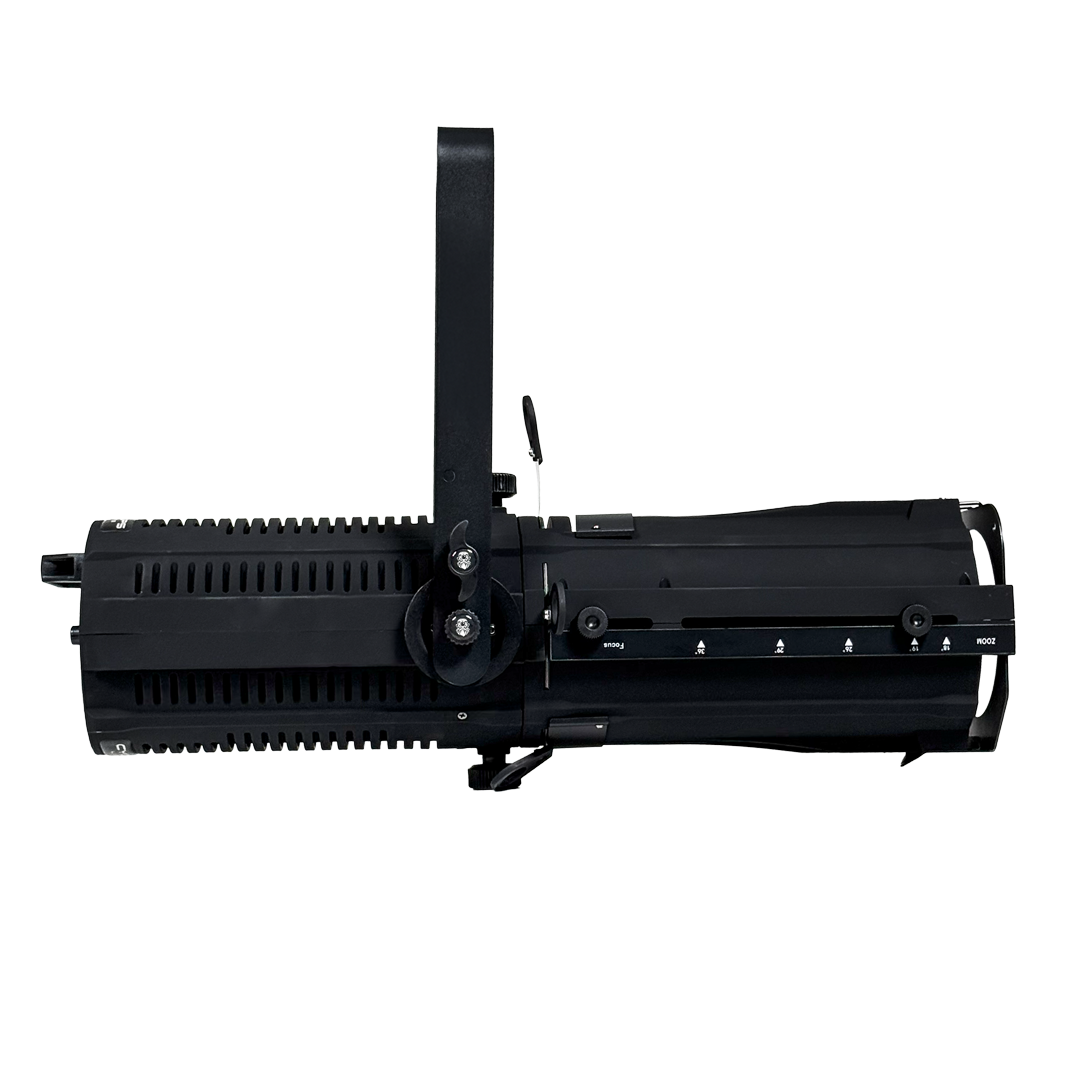

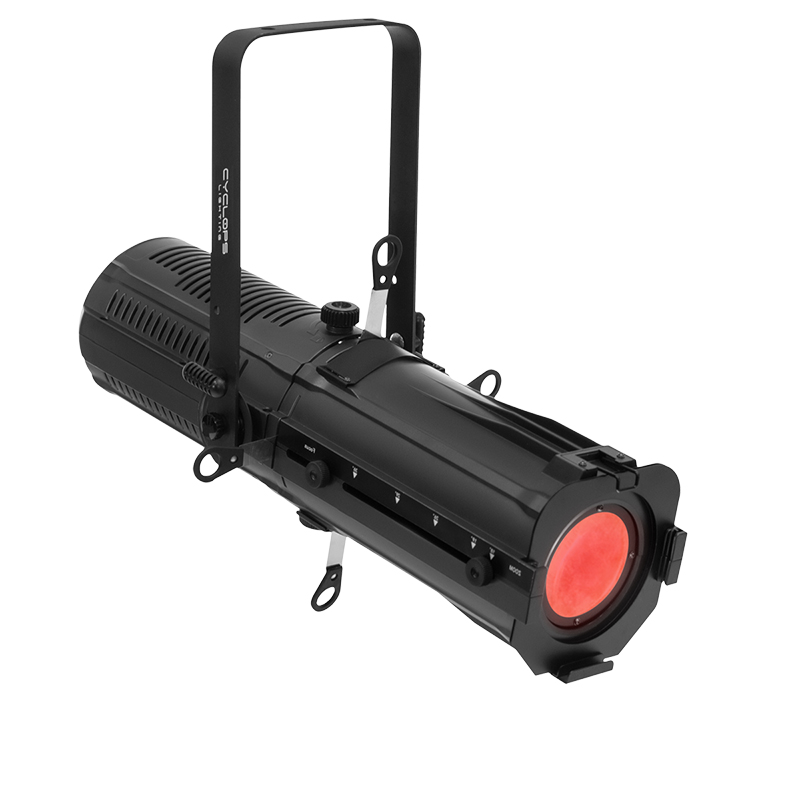

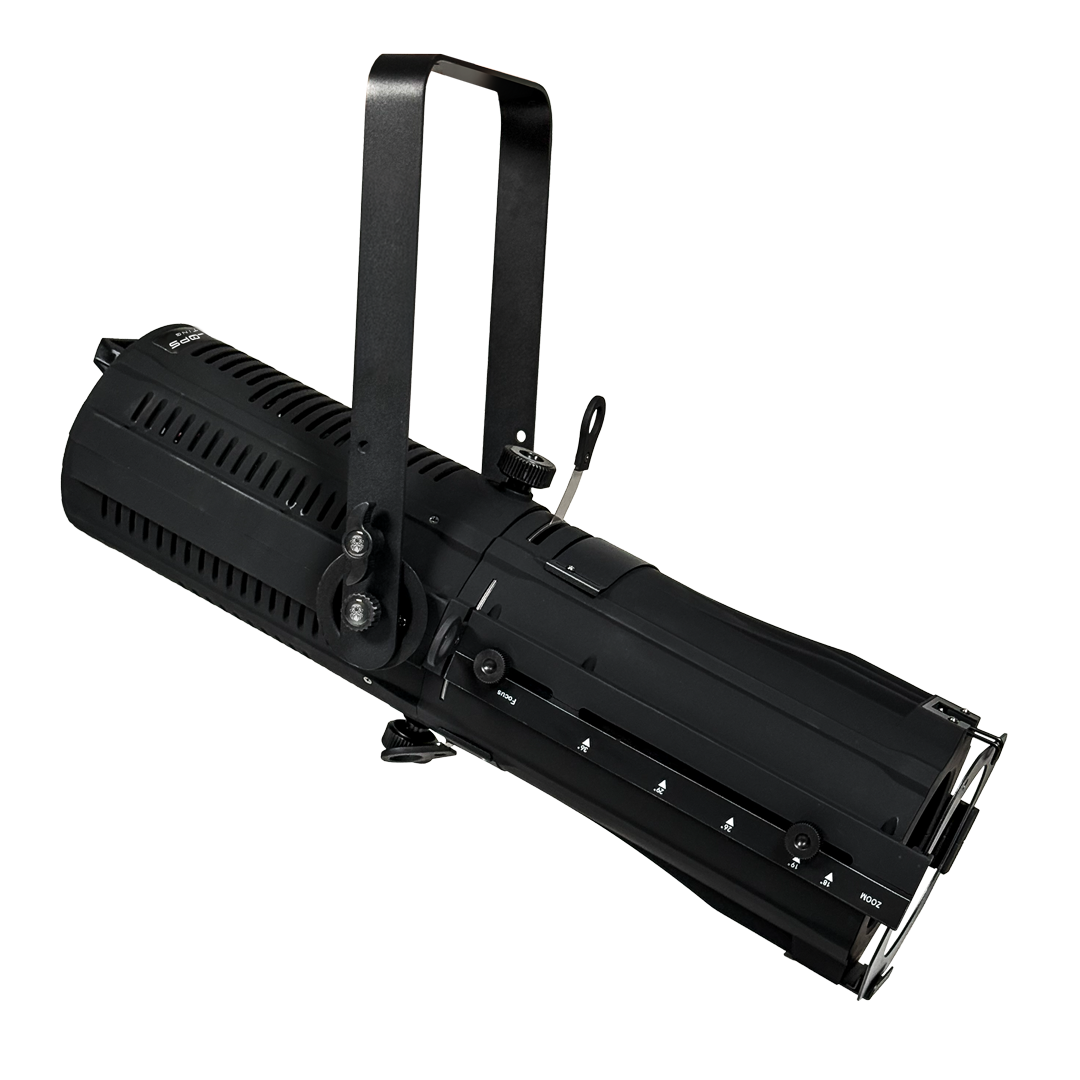

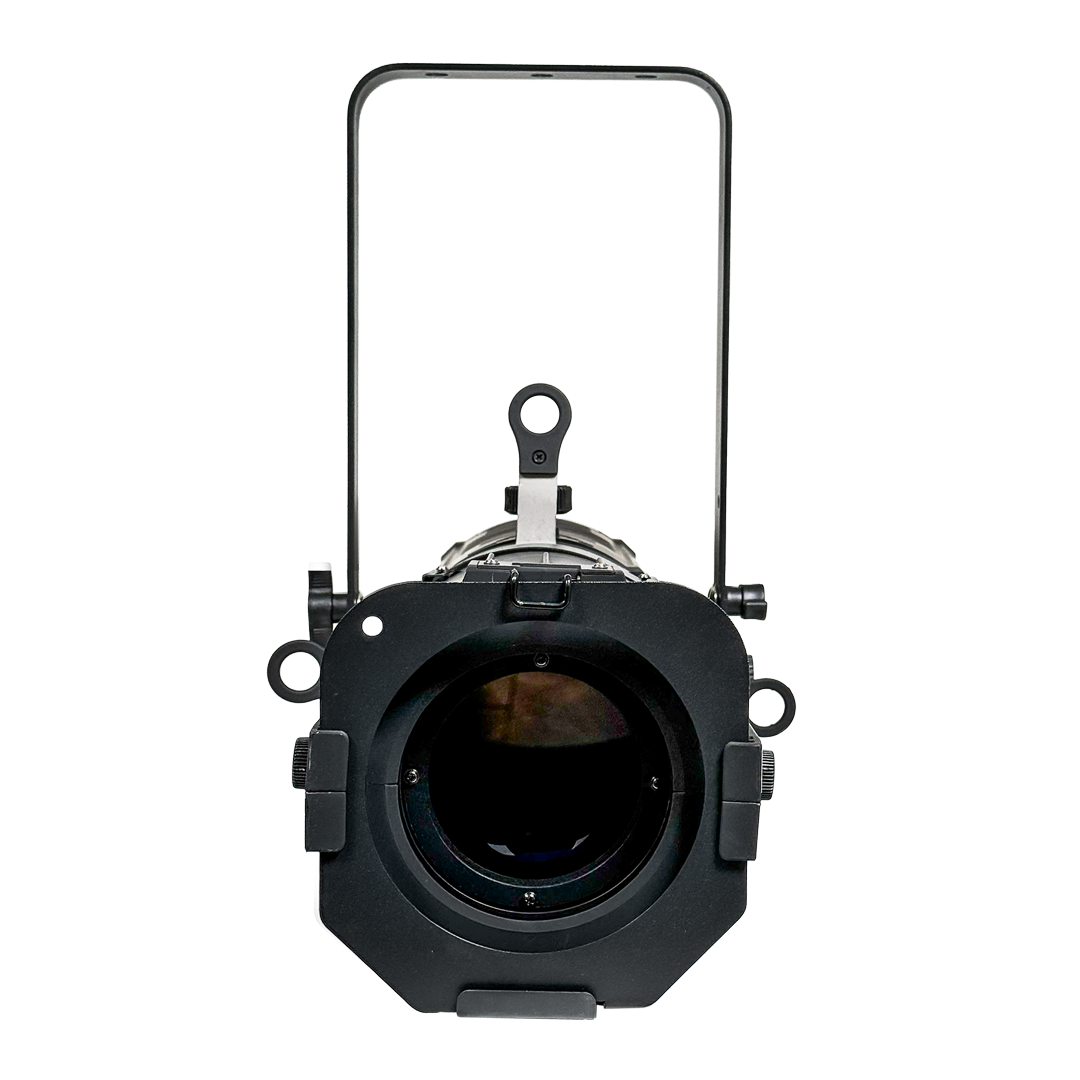

PR 400F - 400 watts RGBW LED Profile Spot

PR 400F is a 400 watts RGBW LED Profile. With a multicolor COB LED source, it can deliver a flat and even field of light with bright color output and a smooth color transition. An optional high performance Fresnel lens with barn doors can replace the profile lens offering an even Fresnel wash from the same LED engine. This LED profile offers a high quality output making it ideal for theatres, schools, studios and events application.

Available in a kit of 1 flight case, 6 Profiles, 6 Adapter Fresnel Lenses + Barndoors.

SKU: PR400FKIT



SKU: PR400F1838-5PIN Categories: , , Brand: Series:

Product Description

PR 400F is a 400 watts RGBW LED Profile. With a multicolor COB LED source, it can deliver a flat and even field of light with bright color output and a smooth color transition. An optional high performance Fresnel lens with barn doors can replace the profile lens offering an even Fresnel wash from the same LED engine. This LED profile offers a high quality output making it ideal for theatres, schools, studios and events application.

Available in a kit of 1 flight case, 6 Profiles, 6 Adapter Fresnel Lenses + Barndoors.

SOURCE

  • Light source: 400 watts RGBW COB LED
  • LED life expectancy: 50, 000 Hrs

OPTICAL SYSTEM

  • Manual zoom
  • Zoom range: 18° to 38°
  • Light output: 6,500 Lux @ 2m @ 18°
  • Optional Fresnel lens adapter 25°-50° (PMMA)
  • Optional Iris and Gobo holder

KEY FEATURES

  • 5 Dimmer curves
  • Color mixing: RGBW
  • White temperature macros
  • Strobe
  • Video flicker free with selectable PWM
  • Intelligent temperature control
  • Silent operation

CONTROL & PROGRAMMING

  • Control protocols: Rotary, DMX, RDM, Artnet
  • Control channels: 1, 4, 6, 10 CHs

 ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

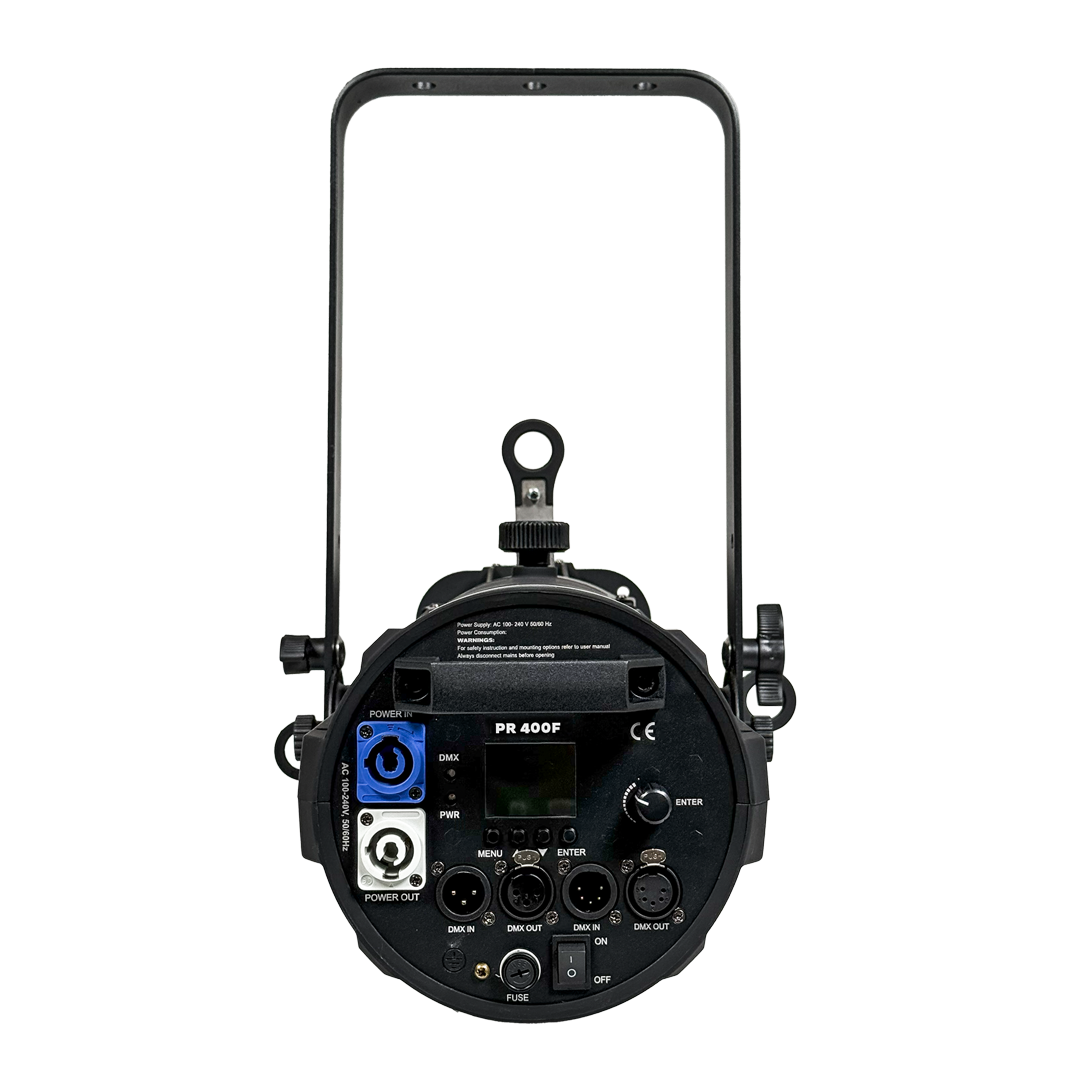

 CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 745 x 294 x 294mm
  • Net weight: 8.7 Kg (including lens)
  • Color: Black
  • IP rating: 20
  • Operating temperature: -5°C/45°C



Download

Data Sheet
