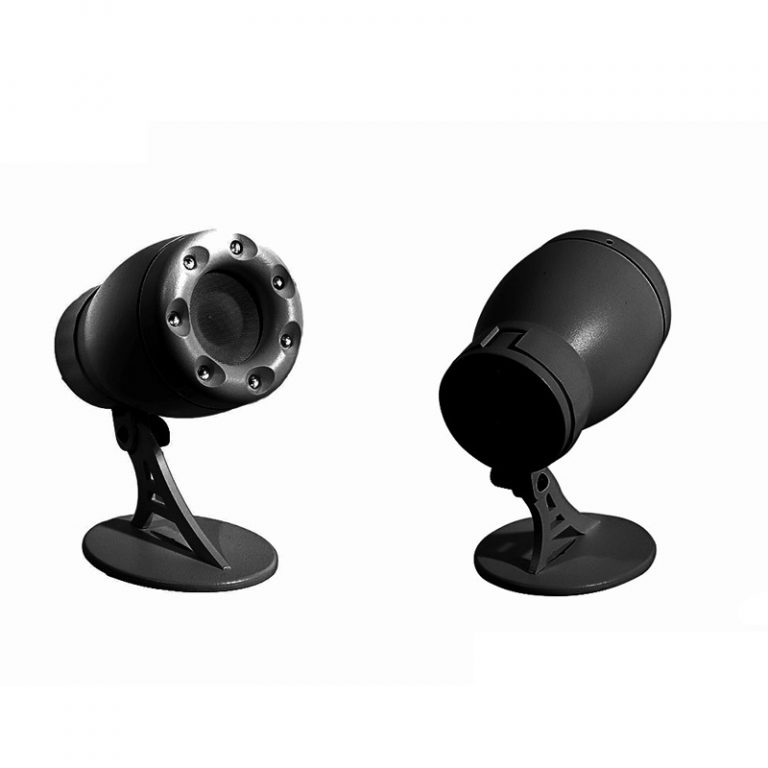

Tornado-KTL2C – 2″ Passive Ceiling Speaker

The Tornado-KTL2C has a proprietary 2” high-efficiency drive unit with a neodymium magnet structure and a suspension engineered for maximum linear excursion and minimum residual transducer interference. The cone transducer delivers an impressive maximum peak SPL of 107 dB, and has a wide operating frequency range from 150 Hz to 18 kHz with very low distortion. This model features 6 integrated RGB LEDs that can be controlled with a wide range of K-array accessories via DMX or by remote control.

The Tornado-KTL2C comes with ceiling brackets for flushed-mount installations.

Product Description

General:
  • Type: Point source
  • Transducers: 2″ neodymium magnet woofer
  • Frequency Response (1): 150 Hz – 18 kHz (-6 dB)
  • Maximum SPL (2): 107 dB (peak)
  • Rated Power: 18 W
  • Coverage: V. 90° | H. 90°
  • Connectors: 4PIN euroblock connector (included)
  • Nominal Impedance: 8 Ω / 32 Ω selectable
  • 70V version available upon request
Handling and Finishes:
  • Dimensions (W x H x D): 125 x 125 x 119 mm (4.92 x 4.92 x 4.69 in)
  • Weight: 0.65 kg (1.43 lb)
  • Material: Aluminum
  • Color: Black, White, Custom RAL
Regulations:
  • IP Rating: IP20
Notes for data: (1) With dedicated preset. (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m. Passive loudspeakers require dedicated presets loaded on K-array amplifiers. New materials and designs are introduced into existing products without previous notice.
