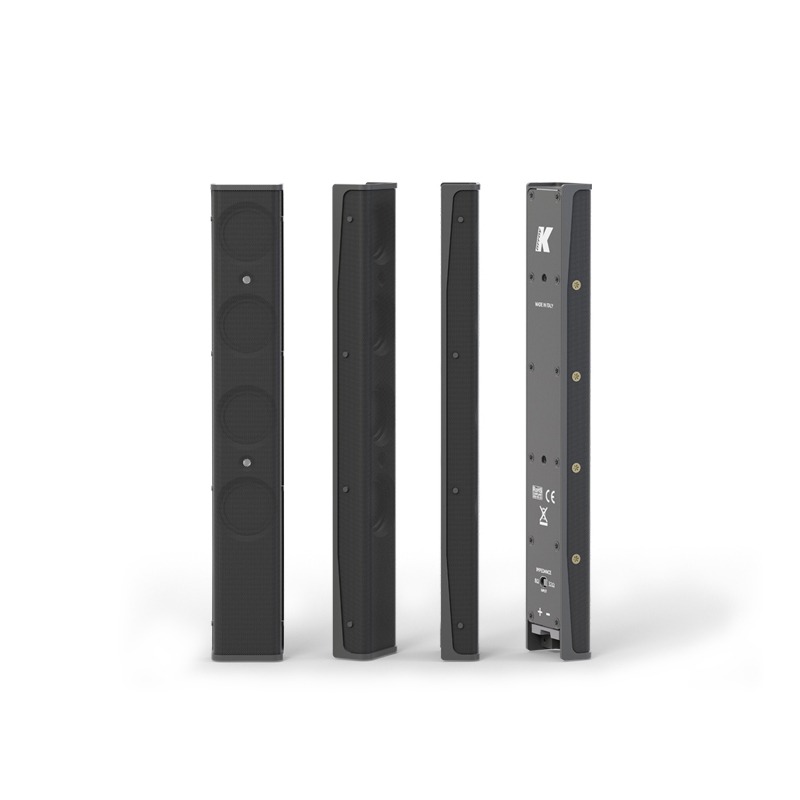

Vyper-KV25 – Ultra-flat Passive Line Array

The Vyper-KV25 is a 26-cm-long passive line array comprised of four 1” neodymium magnet transducers housed in an elegant and resistant aluminum chassis.

The Vyper-KV25 features two different values of impedance (8Ω – 32Ω), with the benefit of joining up to 8 units powered from a single amplifier channel at the 32Ω, being the perfect solution for small to medium venues. The Vyper is able to reproduce the whole vocal frequency range with high intelligibility and unparalleled directivity.

Clear
SKU: N/A Categories: , , Brand: Series:

Product Description

General:
  • Type: Line array
  • Transducers: 4 x 1″ neodymium magnet woofers
  • Frequency Response (1): 150 Hz – 18 kHz (-6 dB)
  • Maximum SPL (2): 108 dB (peak)
  • Rated Power: 75 W
  • Coverage: V. 25° | H. 140°
  • Connectors: 2PIN euroblock connector (included)
  • Nominal Impedance: 8 Ω / 32 Ω selectable
Handling and Finish:
  • Dimensions (W x H x D): 40 x 260 x 22 mm (1.6 x 10.2 x 0.9 in)
  • Weight: 0,4 kg (0.88 lb)
  • Material: Aluminum
  • Color: Black, White, Custom RAL

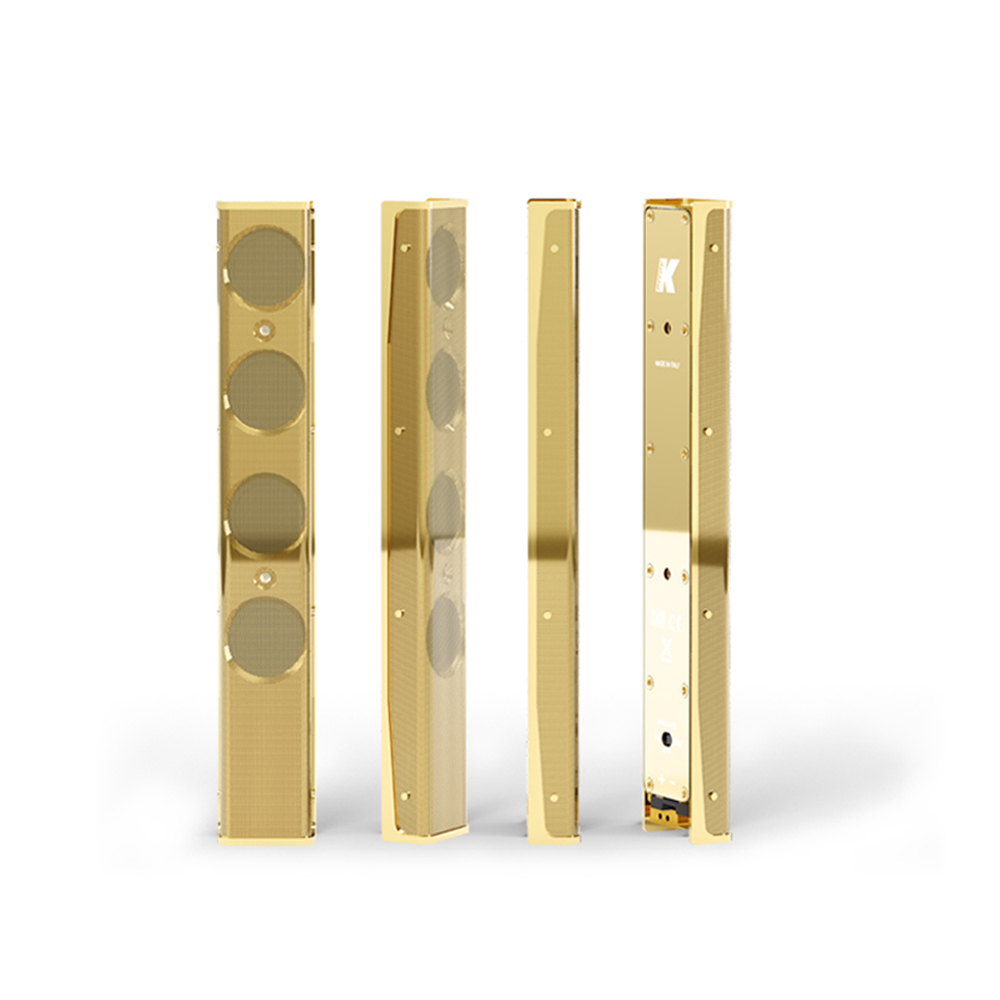

  • Finishes: 24K Gold, Polished, Brushed
Regulations:
  • IP Rating: IP64

Additional information

Color

, ,

Downloads

Data Sheet
