W Series - Remote Controls

Product Description

Key Features:

• IP and PoE based controllers
• User-programmable displays for labeling and feedback
• Configurations available in US and EU form factors
• Simple and easy end-user control of the business audio system
• Simple deployment with standard PoE switch
• Mounts in a 1.375 inch, or 35mm, shallowdepth electrical box
• Flexible display accommodates the use of Symbols to simplify operation and overcome language barriers.
• Dramatically increases the number of control devices that can be added to a Symetrix based system
• Perfect for Houses of Worship, Hospitality, Education, Performance/Live Sound and Conferencing
• Available in 4 different configurations

W1

Features a push button encoder and display. The encoder can operate in a continuous (as in a volume control) fashion. The push button can toggle a binary or momentary action (as in a mute or preset recall) or toggle between two encoder assignments.

W2

Features four momentary buttons and display. Programming features are similar to the ARC-SW4e, however updates include the ability to designate an arbitrary contiguous number of buttons as a radio button group while allowing the remaining buttons to be assigned to individual functions.

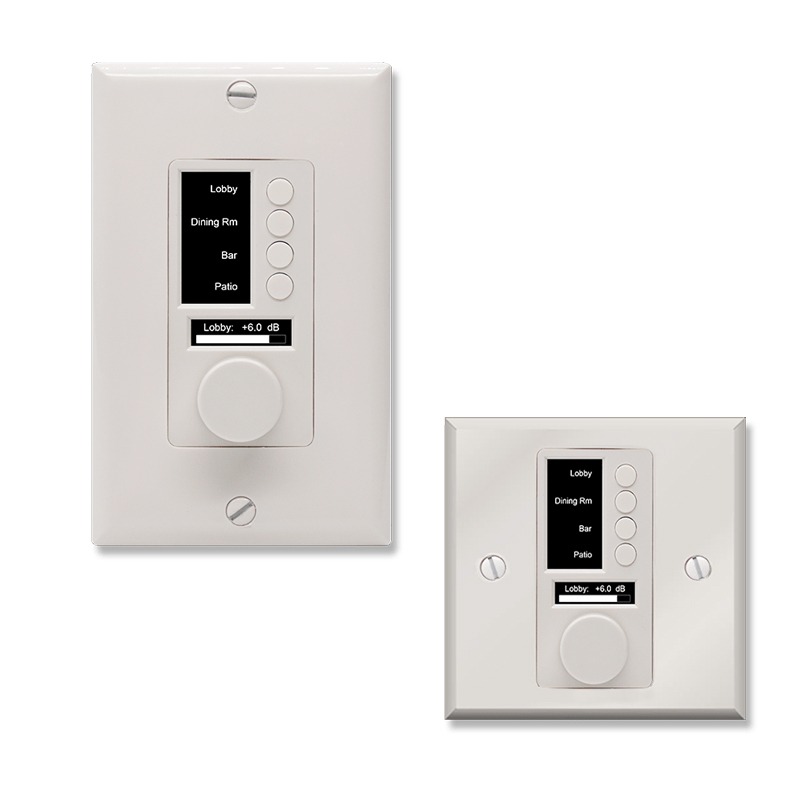

W3

Features a push button encoder, four momentary buttons, and display. Provides expanded “Select and Set” functionality, multiple encoder modes, and encoder menu select.

W4

Features a push button encoder, eight momentary buttons, and display. Expands the functionality of the W3 to include up to eight different assignments for “Select and Set”, radio groups, and individual buttons. (Only available in US form factor)
