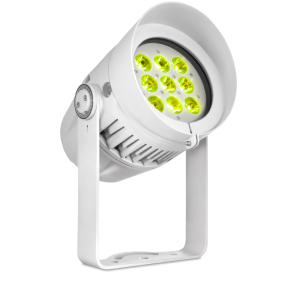

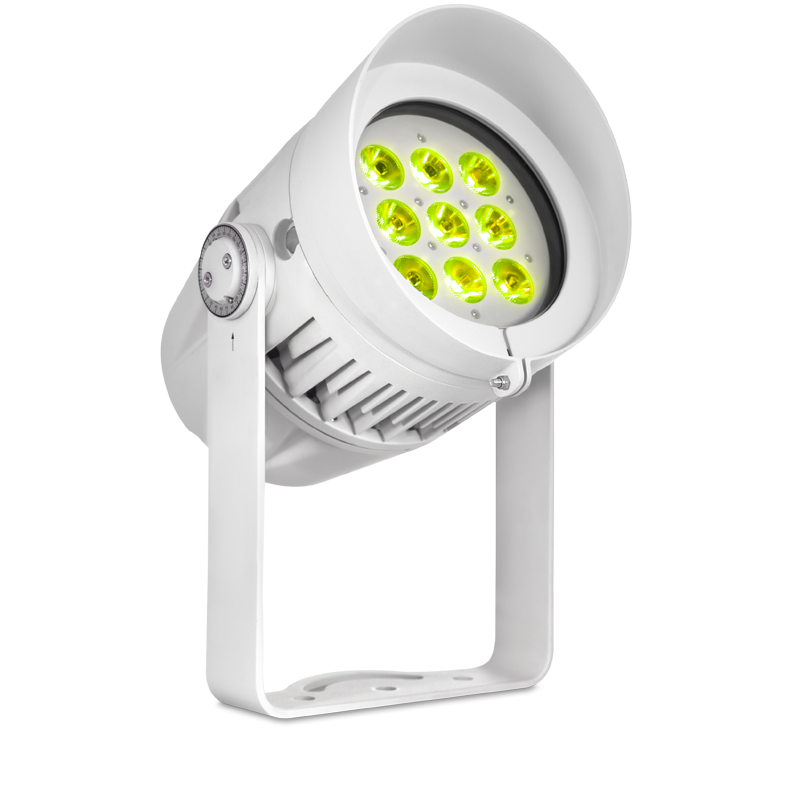

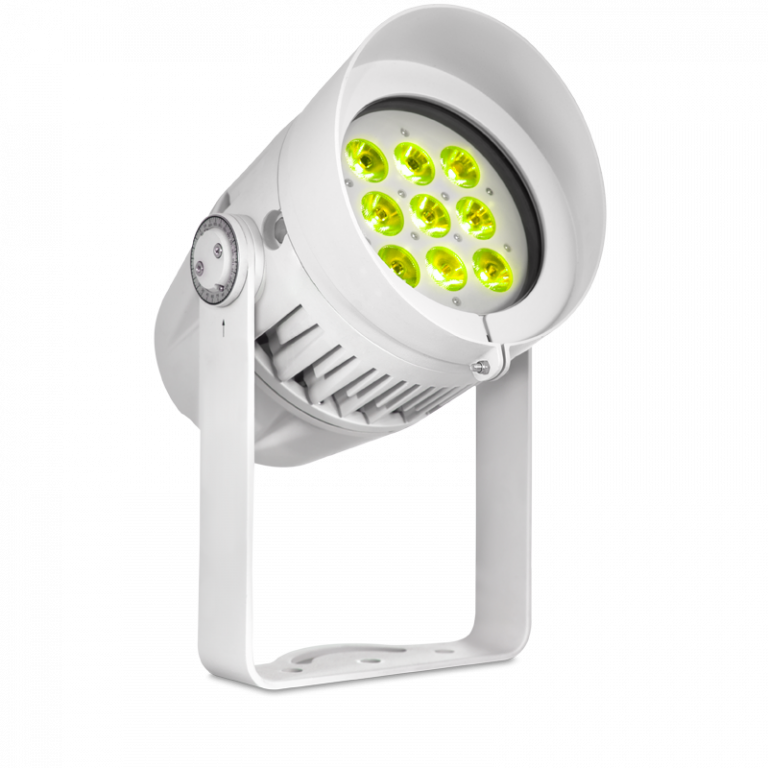

Whopper 409-RGBL is a 9×15 watts multi-chip RGBL, LED Exterior wash with smart temperature control system. It has high color saturation, smooth color mixing, creative DMX dimming technology and pioneering segment control system. It’s high IP rating and strong build makes it ideal for architects to present creative effects for all architectural applications.

SKU: Whopper409RGBL Categories: , , Brand:

Product Description

Whopper 409-RGBL is a 9x15 watts multi-chip RGBL, LED Exterior wash with smart temperature control system. It has high color saturation, smooth color mixing, creative DMX dimming technology and pioneering segment control system. It’s high IP rating and strong build makes it ideal for architects to present creative effects for all architectural applications.

SOURCE

  • Light source: 9x15 watts multi-chip RGBL
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 18025 cd (22°)

OPTICAL SYSTEM

  • Optics: 22 °
  • Light output: 5,000 Lux @2m @ 22°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBL

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 150 w
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 315 x 242 x 390 mm
  • Net Weight: 8.1 kg
  • Color: Off-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: - 40°C~45°C (operating) /- 20°C~45°C (startup)

Download

Data Sheet
