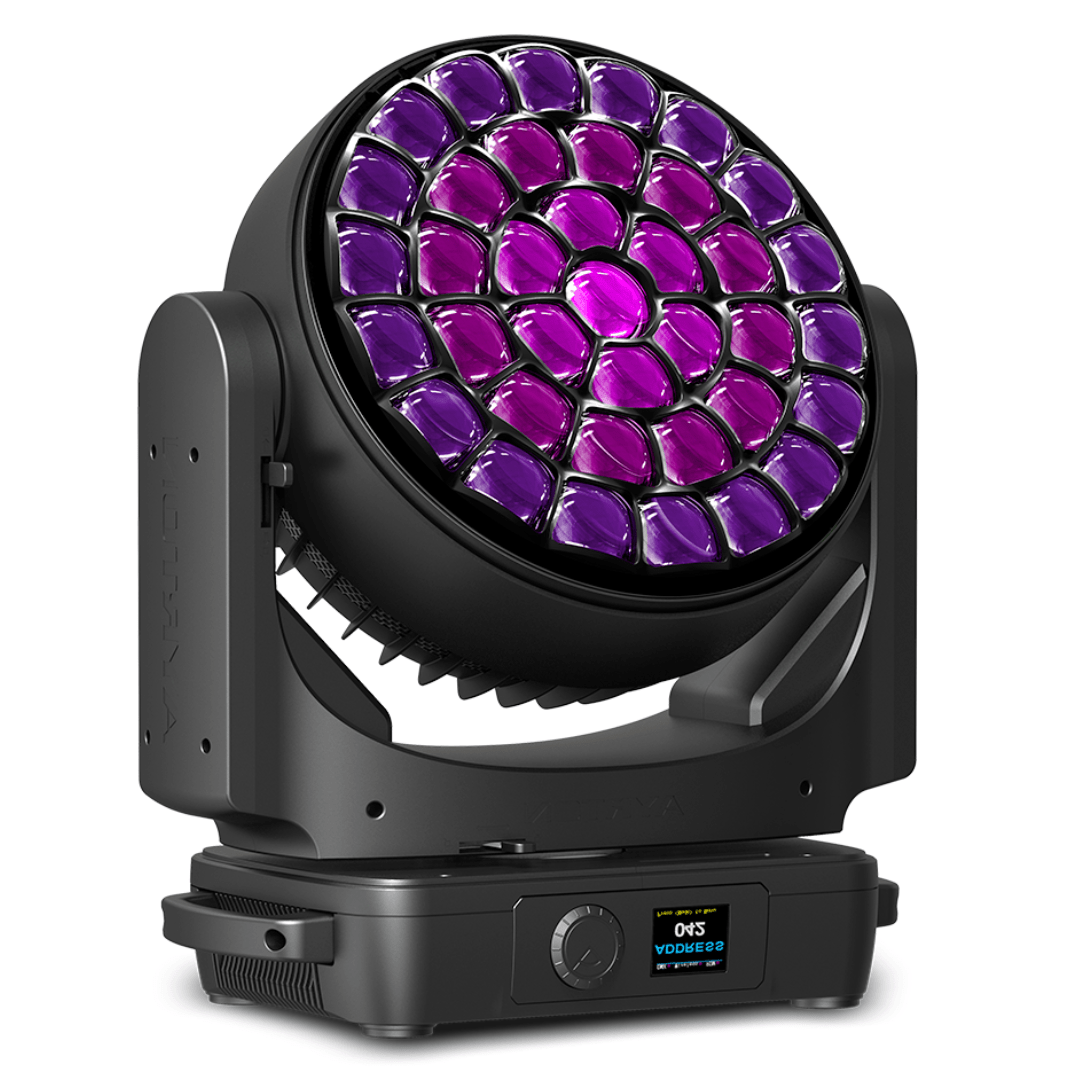

Zonda 9 Wash - LED Wash Moving Head

OPTICS

• 2-element 14:1 zoom high-resolution optic system
• Beam aperture: 4.0° to 56°
• Fast motorised linear zoom
• 37 truncated edges 50 mm frontal lenses
• 384 mm front lens cluster

LIGHT SOURCE

• 37 x 1,000 lumens RGBW High-Power LED sources
• Total luminaire output: up to 25,000 lumens
• CRI: up to 86
• Rated life: L70: up to 40,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

MOVEMENT

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• PAN and TILT automatic repositioning
• Moving-head range: 540° (pan), 270° (tilt)

COLOURS

• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8-bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets

EFFECTS

• 2D & 3D graphical effects capabilities
• Effects can be coupled with beam, wash or matrix applications
• Built-in pattern effects with speed and fade controls for scenic applications

DIMMER / STROBE

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FEATURES

• Graphic LCD display for addressing and special functions settings, with flip function
• Clicking jog wheel to set functions
• Excess temperature protection
• XLR 5 pin male and female connectors for DMX connection
• ethercon RJ45 IN / OUT connectors for ArtNet™ connection
• powerCON TRUE1 male connectors for power connection

CONTROL

• DMX 512 protocol through DMX cable
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 26 to 54 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 120 to 240 Volts – 50/60Hz
• Power 1,400 W maximum

COOLING SYSTEM

• Advanced cooling system
• Self adjusting variable speed fans for quiet operation (Auto mode)
• Selectable auto, stage & studio ventilation modes
• Safety protection against temperatures excesses

HOUSING

• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Heatsinks in aluminium
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
• Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45°C (113°F)
• Minimum permitted ambient temperature (Ta min): -10°C (14°F)
• Minimum usage distance: 3.0 m (9.84 ft)

COMPLIANCE
EU (EMC & LVD)

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• UL 1573
• FCC Part 15, Subpart B: 2018

SIZE

• Product: 530 x 625 x 280 mm (l x h x d)

WEIGHT

• Product: 29.2 kg

PRODUCT CODES

• 013740: ZONDA 9 WASH – MULTI SOURCES 9 SERIES
