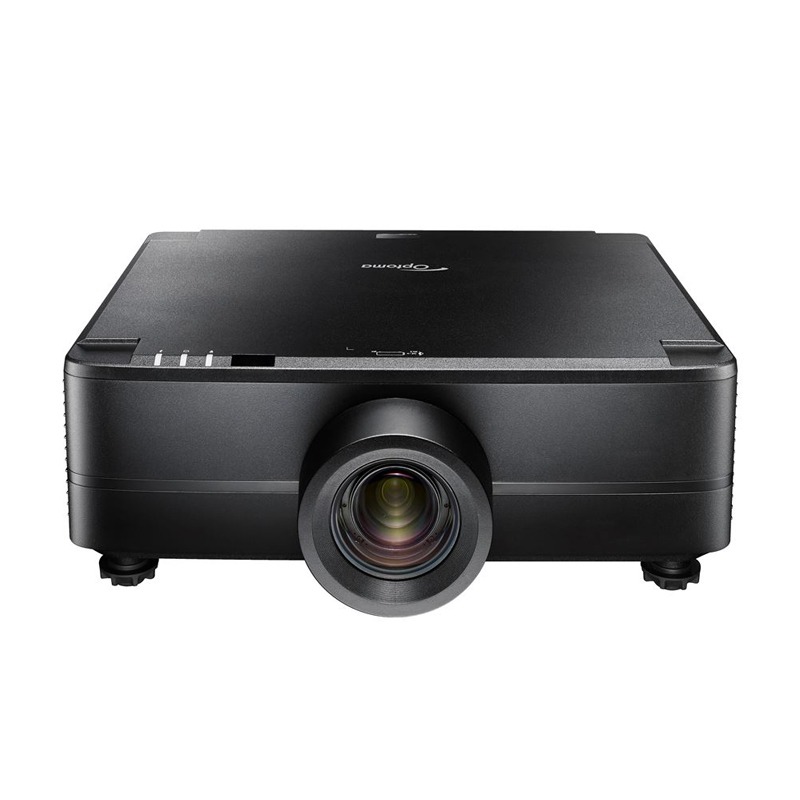

ZU920T - Ultra Bright 9800 Lumen DuraCore Laser Projector

Product Description

High brightness, color precision and quiet operation make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as edge-blending and projection mapping, simulation, and immersive installations.

The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.

Key Features:

• 9800 lumen DuraCore laser projector: Ultra bright for immersive installations
• Full motorized lens shift: Ideal for a simple set-up
• Large zoom range: Motorized zoom expands placement opportunities
• Long life: Delivers 30,000 hours of virtually maintenance-free operation

Specifications:

Display/Image

• Display technology: DLP
• Resolution: WUXGA (1920×1200)
• Brightness: 9,800 lumens
• ANSI brightness: 8,200
• Contrast ratio: 3,000,000:1
• Contrast ratio – full on/off: 1,100:1
• Native aspect ratio: 16:10
• Aspect ratio – compatible: 4:3,16:9,16:10
• Keystone correction – horizontal: 30°
• Keystone correction – vertical: 30°
• Uniformity: 95%
• Screen size: 50″ ~ 300″ diagonal

Lamp info

• Light source type: DuraCore Laser
• LASER life: 30,000 hours

Optical

• Throw ratio: 1.25:1 ~ 2:1
• Projection distance: 52.36″ – 514.17″
• Zoom: 1.6
• Zoom type: Motorised
• Focal length (mm): 18.72~29.59
• Lens shift: Vertical: +/-55%, Horizontal: +/-25%
• Native offset: 50%
• Lens shift: Yes – see documentation for details

Connectivity

• Connections:
  Inputs 1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm
  Outputs: 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm
  Control: 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232
• LAN – wireless networking: No

General

• Noise level (typical): 36dB
• Noise level (max): 38dB
• Security: Security bar, Kensington Lock
• OSD / display languages: 10 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional)
• 24/7 operation: Yes
• 360° operation: Yes
• Remote control: Backlit ProAV remote
• Speaker count: 2
• Watts per speaker: 10W

Networking

• LAN – wireless networking: No
• LAN: Yes

Power

• Power supply: AC 90 – 264V 50/60 Hz
• Power consumption (min): 260W
• Power consumption (max): 505W

Weight and dimensions

• Dimensions (W x D x H) mm: 19.13″ x 17.03″ x 6.93″
• Gross weight: 38.58 lbs
• Net weight: 30.86 lbs
