Crank Abu Dhabi

- Abu Dhabi, UAE

The Crank Experience Comes to Abu Dhabi with Cyclops & K-array

Crank is one of the leading fitness and cycle institutions in the Middle East. Offering an unforgettable workout experience, Crank is known throughout the industry for its electric classes which are fully loaded with programmed and customized AV effects. The huge success of Crank Dubai has seen them expanding to Abu Dhabi, and Procom was brought on board for the full design, fitout and programming of the audio, lighting and video for the new venue.

For their main cycling room, K-array was the ideal sound system of choice. For that, a selection of KP52 along with KMT18P and KA84 were installed. The system operates over Symetrix Jupiter 8 together with ARC-2e wall controller and wireless access.

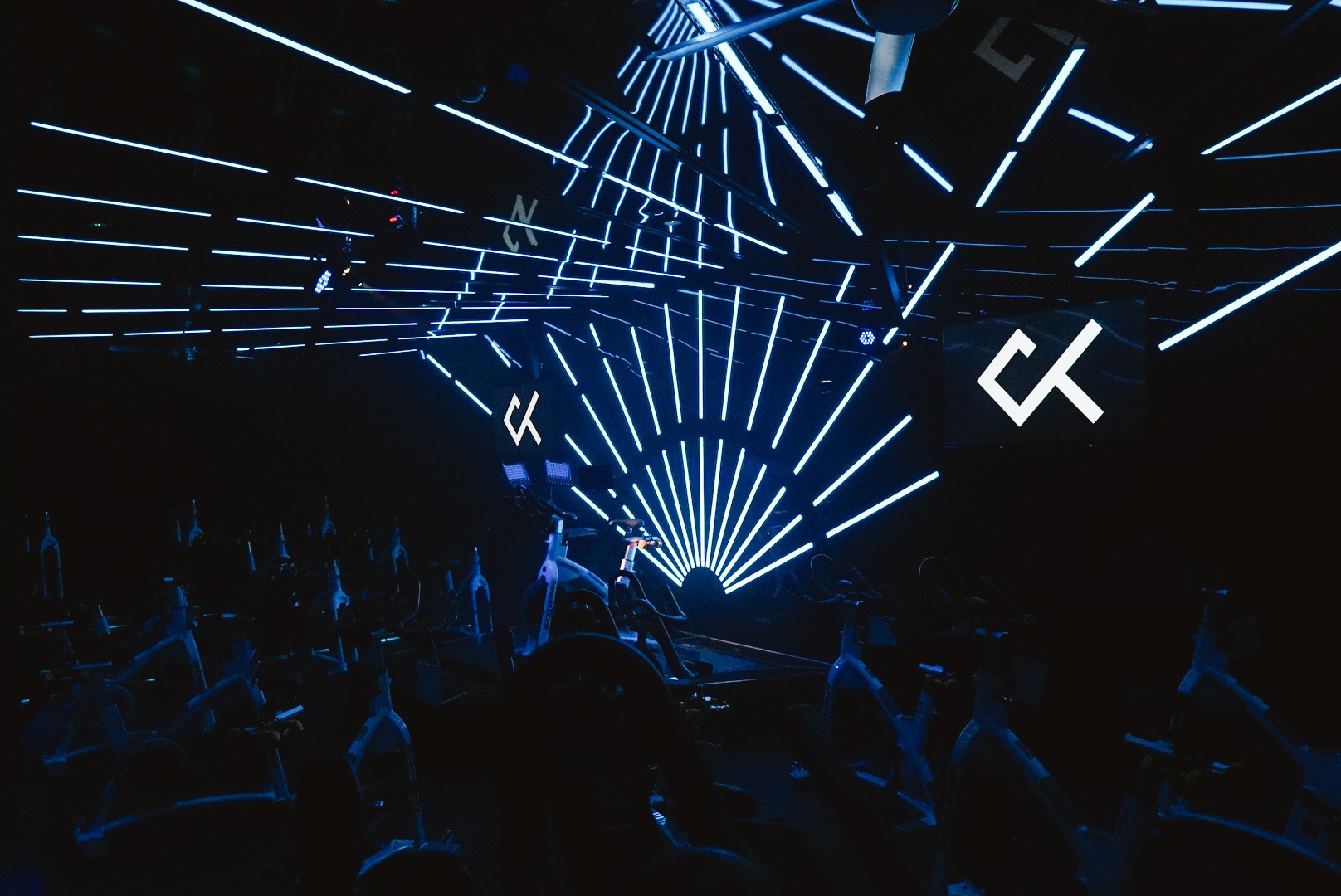

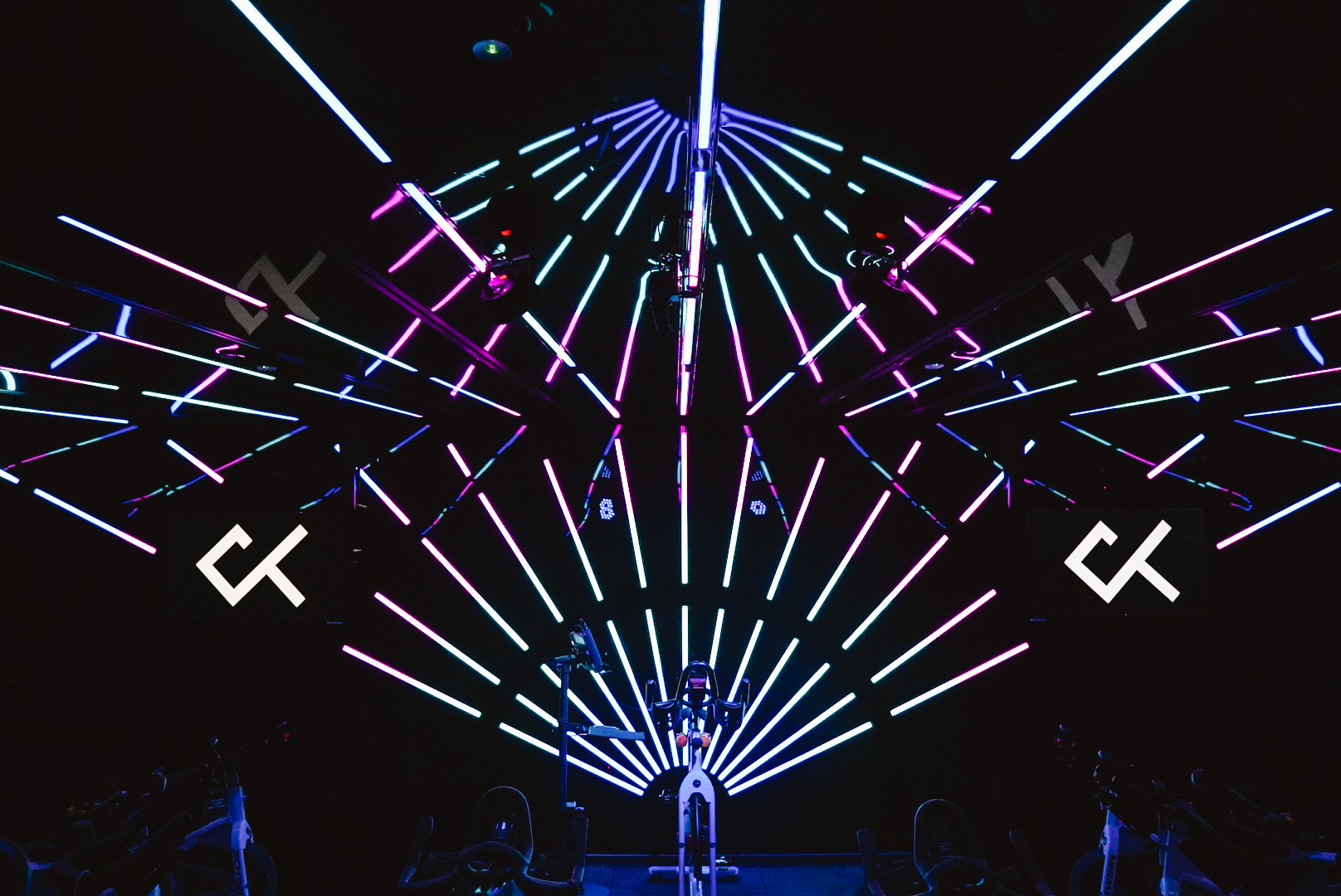

110 x Pixibar 48-IS from Cyclops Lighting were used to light up the main cycling room. The lighting fixtures are controlled by a network of 2 x Madrix Basic Keys linked to a series of  Luna 16’s. 8 x RGB6300 Laser Bars were installed into the stage to create the iconic laser cage around the instructor. A PR20 was used as facelight for the instructor from above. An Antari HZ-500 haze machine was provided for atmospheric effects around the stage.

Video control was integrated over 2 x Hex70BKit’s along with a CMX42AB Matrix from Blustream. The system allows multiple control interfaces to be switched between the in-house displays.

As part of the Crank experience, a full kinetic, three-dimensional “CK” logo was installed into the main double volume entrance along with audio for BGM and announcements.

The entrance was lit up with Cyclops Lighting Pixitube Opaque 120-I along with Pixistrip 32-I, and a total of 17 x KW-6 kinetic hoists with LED balls on it. Lighting control was made easy through a Madrix Luna 8, as well as a Madrix key 8 and a Madrix Aura 8.

A selection of 4 x KF26 were installed in the reception along with 8 x  CL-8-T in the changing rooms.
