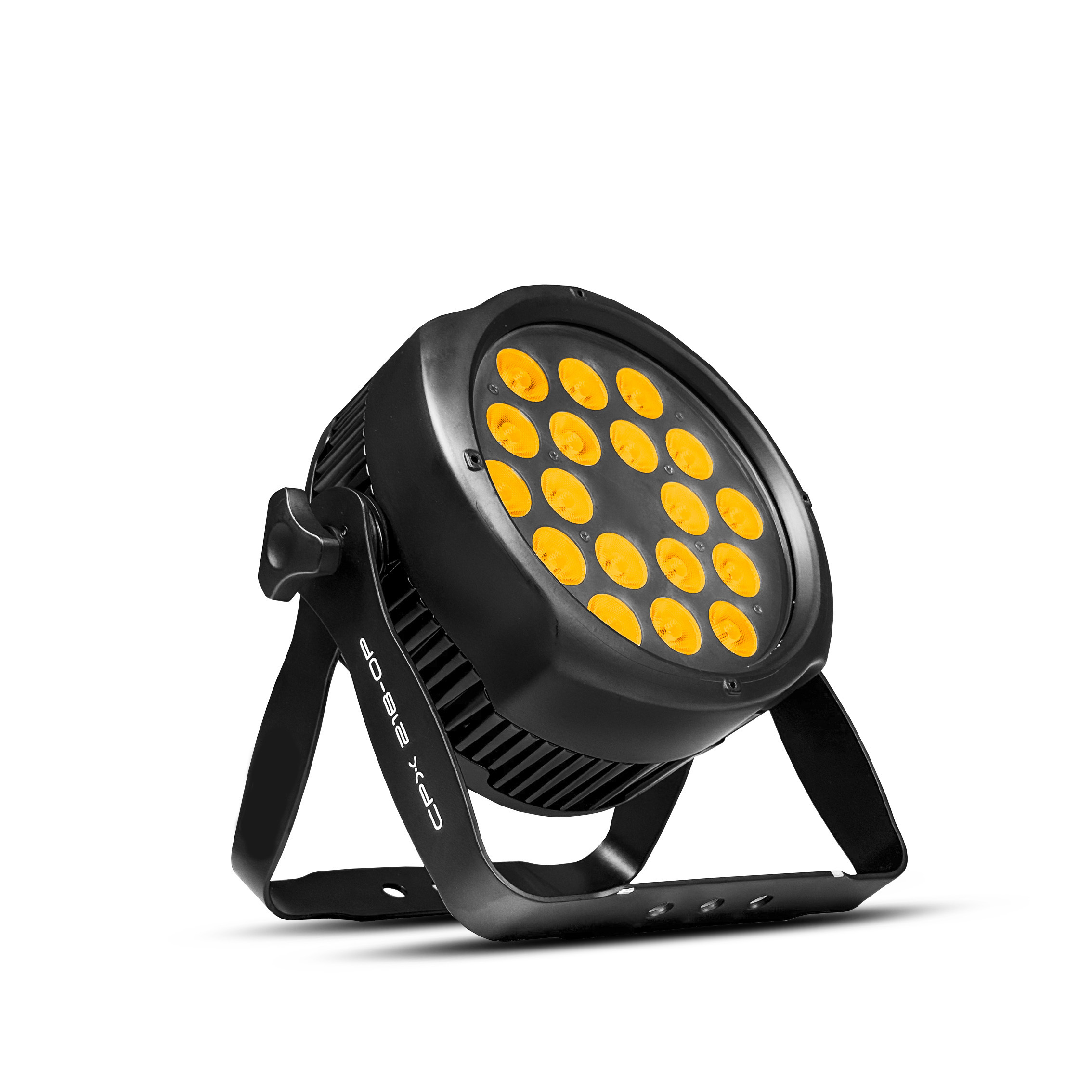

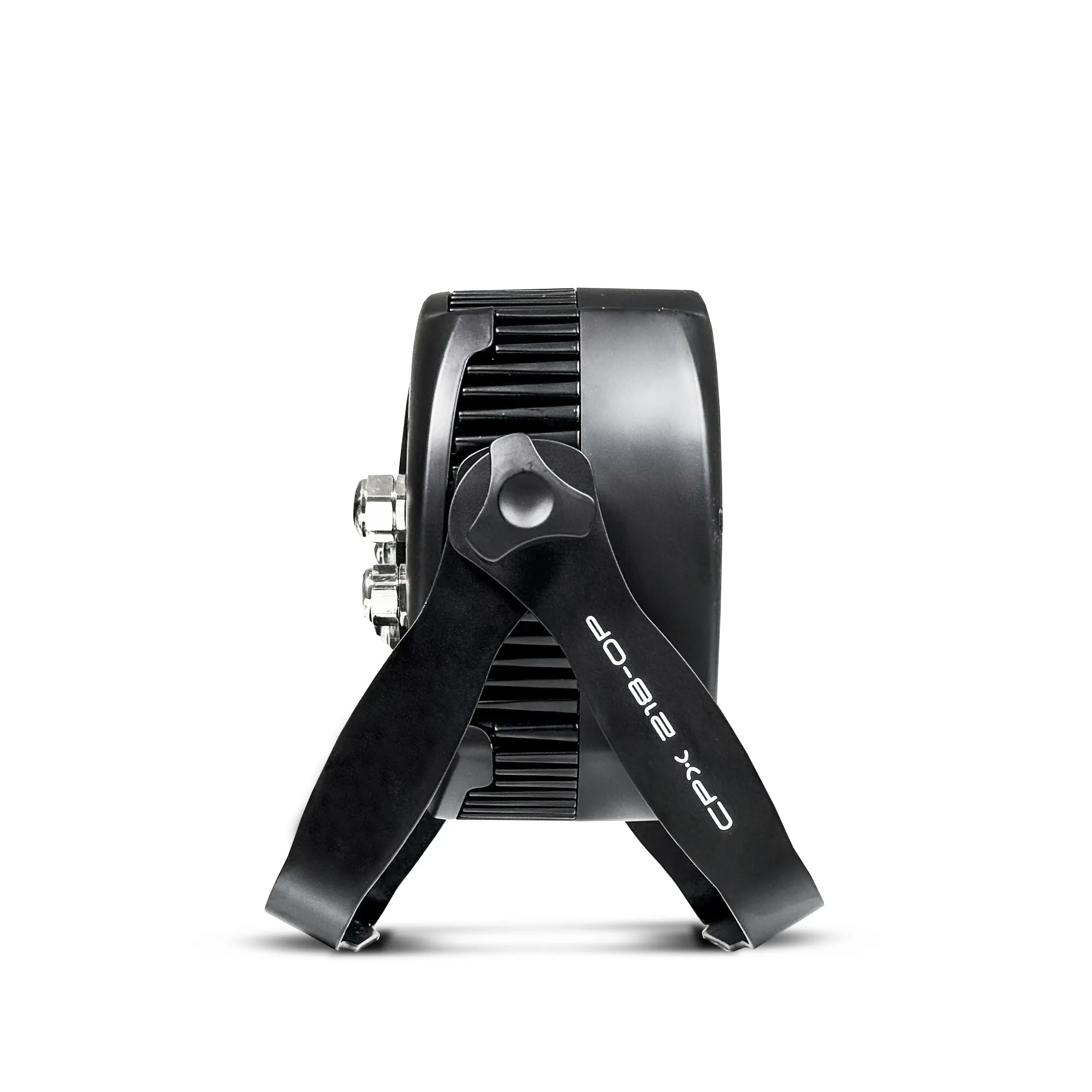

CPX 218OP – Outdoor Warm White & Cool White LED Par

CPX 218OP is an 18 x 12 watts outdoor tunable warm white and cool white LED Par. It is ideal for bright white architectural and outdoor event lighting.

SKU: CPX218OP Categories: , , Brand: Series:

Product Description

CPX 218OP is an 18 x 12 watts outdoor tunable warm white and cool white LED Par. It is ideal for bright white architectural and outdoor event lighting.

SOURCE

  • Light source: 18 x 12 watts, Cool white/Warm white LEDs
  • LED life expectancy: 50,000 Hrs.

 OPTICAL SYSTEM

  • Beam angle: 25°
  • Light output: 7,000 Lux @ 2m @ 10°

DYNAMIC EFFECTS

  • Color Temperature: Cool white/Warm white
  • Strobe and Fade effect
  • Built-in dynamic macros

 CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • Display: TFT displayer with 4 buttons
  • Control channels: 3, 4, 6, 8, 11 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 230 watts

CONNECTIONS

  • DMX connections: IP DMX In/Out Cables with 3 pin screw lock connectors
  • Power connections: IP Power In/Out Cable, 3 pin screw lock connectors

PHYSICAL

  • Dimensions: 280.32 x 142.56 x 288.28mm
  • Net weight: 5 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45°C
