CPX 354OB - Outdoor RGB LED Linear Wash Bbar, 54 x 3 watts

Product Description

CPX 354OB is an outdoor RGB LED compact linear wash bar. It is designed with a very dense 54 bright LEDs and wide-angle of 60° in a small body of 35.9 cm to ultimately serve architectural uplighting and wash outdoor applications.

SOURCE

• Light source: 54 x 3 watts RGB SMD LED

OPTICAL SYSTEM

• Lens: 10 x 60°

DYNAMIC EFFECTS

• Dimmer: 0-100% linear adjustment
• Color mixing: RGBW
• Variable color chasing
• Strobing and fading effect
• 55 built-in color macros

CONTROL & PROGRAMMING

• Control protocols: RDM, DMX, Master Slave, AutoIR remote control
• Display : 4 button LED displayer
• Control channels: 3, 5, 8, 13 CHs

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 54 watts

CONNECTIONS

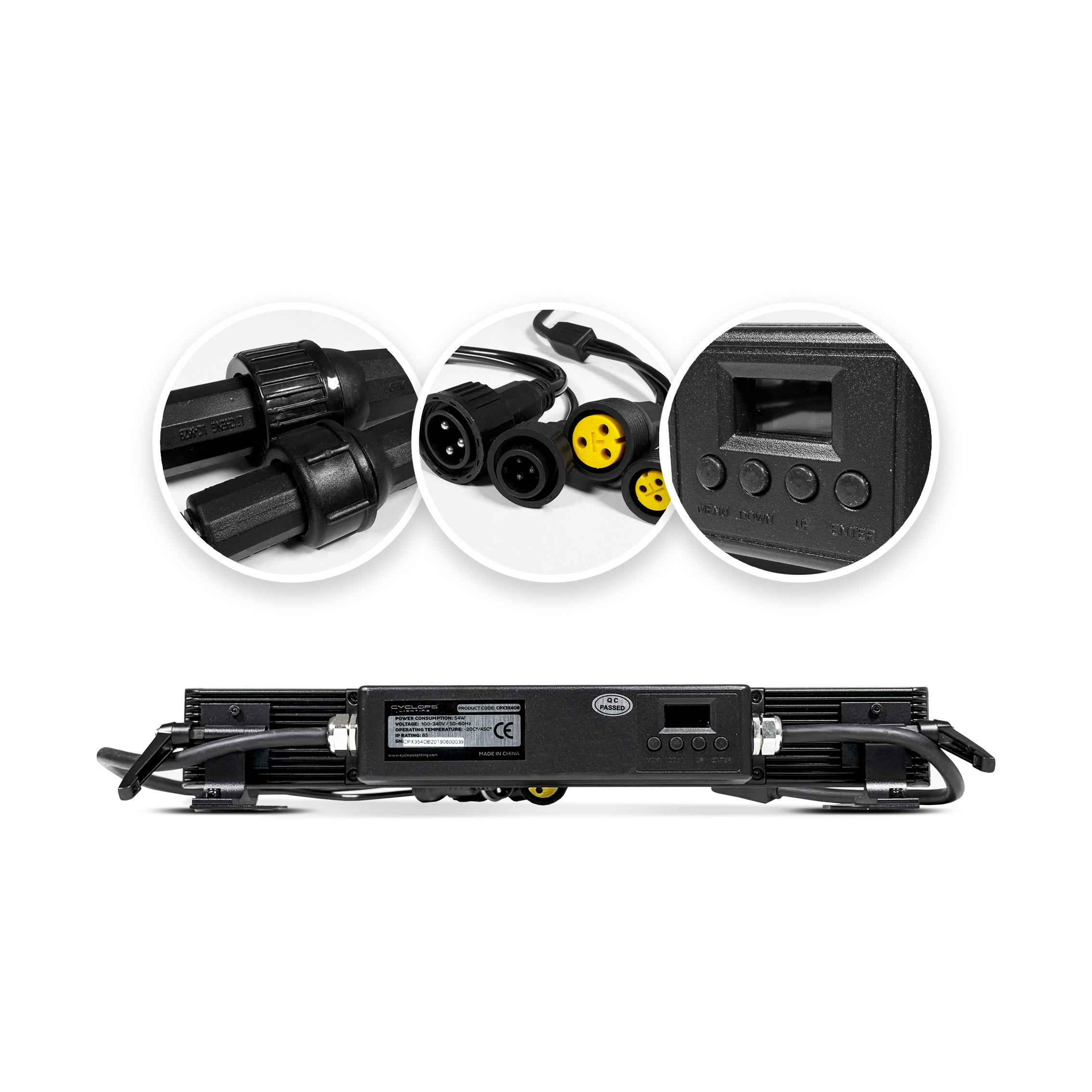

• DMX connections: IP rated 3 PIN XLR cable

PHYSICAL

• Dimensions: 359 x 53 x 81mm
• Net weight: 21 Kg
• Color: Black
• Housing: Aluminum
• IP rating: 65
• Operating temperature: -20°C/40°C
