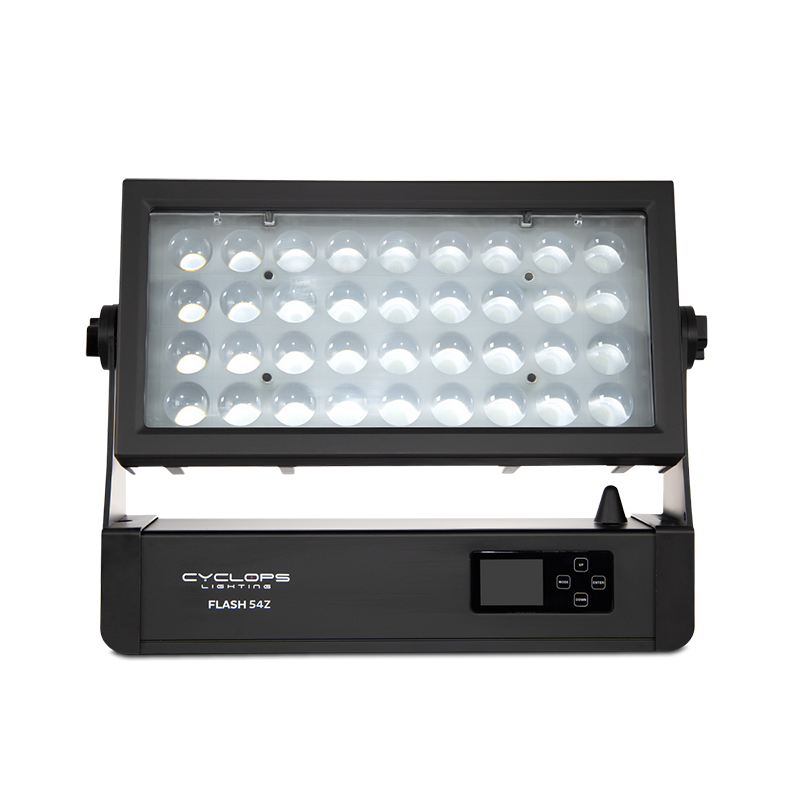

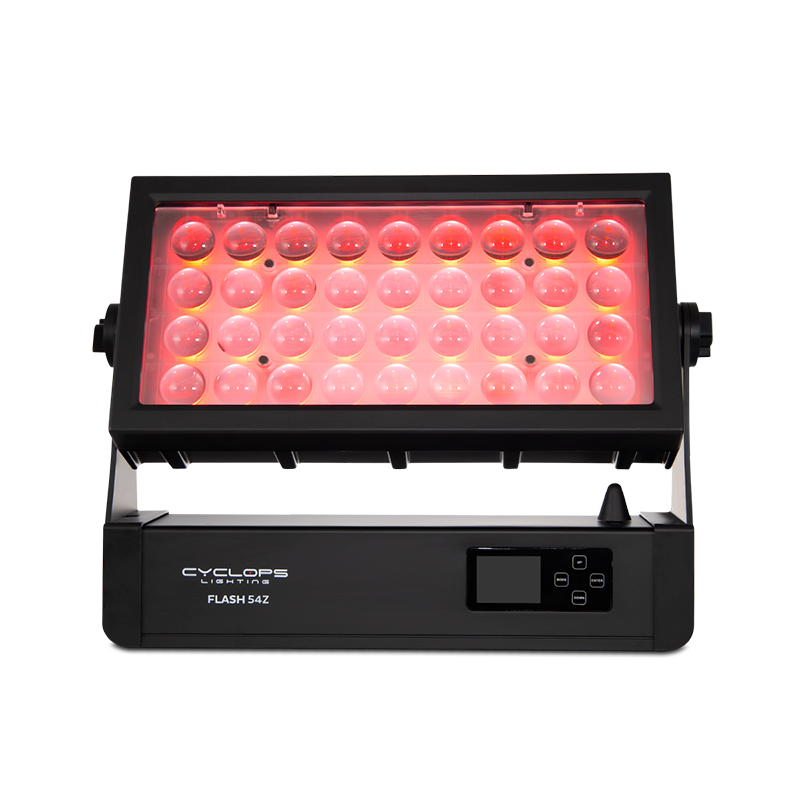

FLASH 54Z - 36x15 watts RGBW Main Lights and 72x0.2 watts RGB Back Lights-Zoom Controlled Wash Light

FLASH 54Z is an outdoor RGBW Zoom LED city wash. It is powered by 36 x 15 watts RGBW LEDs as main light source with an additional 72×0.2 watts RGB LEDs as back light. It features a 7° to 58° zoom angle line by line segments control which gives it a wide variation of color mixing and effects. An IP65 rating, solid built, wide zoom range and background effect combined make this fixture perfect for any indoor or outdoor applications with long or short light coverage.

SKU: Flash54Z Categories: , Brand: Series:

Product Description

FLASH 54Z is an outdoor RGBW Zoom LED city wash. It is powered by 36 x 15 watts RGBW LEDs as main light source with an additional 72×0.2 watts RGB LEDs as back light. It features a 7° to 58° zoom angle line by line segments control which gives it a wide variation of color mixing and effects. An IP65 rating, solid built, wide zoom range and background effect combined make this fixture perfect for any indoor or outdoor applications with long or short light coverage.

SOURCE

  • Light source: 36 x 15 watts RGBW LEDs as main light source and 72 x 0.2 watts RGB LEDs as back light
  • Lamp life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle:  7° to 58°
  • Light output: 40,000 @ 2m @ 7° (main light source)

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color mixing: RGBW
  • 4 dimmer curves
  • Variable strobe
  • Individual line control
  • Built-in color and dynamic macro

CONTROL & PROGRAMMING

  • Control protocols: DMX, WDMX, RDM, Master-Slave
  • Display: 2.4” TFT display operation
  • Control channels: 2, 3, 4, 15, 20, 21, 37 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 550 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections:  IP Powercon In/Out

PHYSICAL

  • Dimensions: 509 x 326 x 226mm
  • Net weight: 15 Kg
  • Housing: Aluminum
  • Color: Black
  • IP rating: 65
  • Operating temperature: -20°C/40°C

Additional information

Weight 18.0 kg
Dimensions 0.0 × 0.0 × 0.0 cm

Download

Data Sheet
