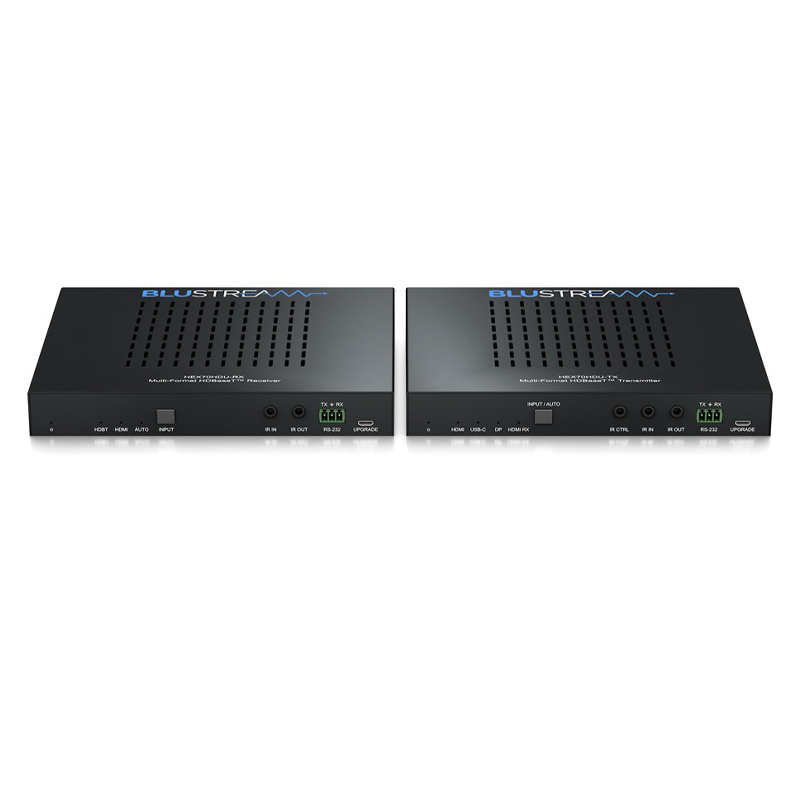

HEX70HDU-KIT - Multi Format HDBaseT™ CSC Extender Set - 70m

Product Description

The HEX70HDU-KIT provides enhanced features including local HDMI input on the HDBaseT™ receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through.

The HEX70HDU-KIT features control via front panel, IR, RS-232 and TCP/IP, with advanced EDID and HDCP management.

Key Features:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection
• Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
• Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4, 4K 30Hz 4:4:4 DP1.2
• Audio breakout to analogue L/R audio and Coaxial digital (S/PDIF) outputs concurrently
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Bi-directional IR pass-through
• Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
• Web interface module for control and configuration of HEX70HDU-KIT
• Control via front panel, IR, RS-232 or TCP/IP
• Advanced EDID and HDCP management
• *USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device

Specifications:

HEX70HDU-TX:

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 2 x 3.5mm stereo jack (1 x switching control, 1 x IR pass-through)
• IR Output Ports: 1 x 3.5mm mono jack
• EDID: 4-pin DIP switch
• Product Upgrade: 1 x Micro USB, female
• Casing Dimensions (W x H x D): 175mm x 24mm x 155mm

HEX70HDU-RX:

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• Relay Control: 2 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID: 4-pin DIP switch
• Product Upgrade: 1 x Micro USB, female
• Casing Dimensions (W x H x D): 175mm x 24mm x 155mm
• Shipping Weight: 2.6kg
• Power Supply: 24V/5A DC
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

Box Contents:

• 1 x HEX70HDU-TX
• 1 x HEX70HDU-RX
• 1 x 24V/5A DC Power Supply
• 1 x IR Emitter
• 1 x IR Receiver
• 1 x RS-232 Control Cable
• 2 x Mounting Kits
• 1 x Quick Reference Guide
